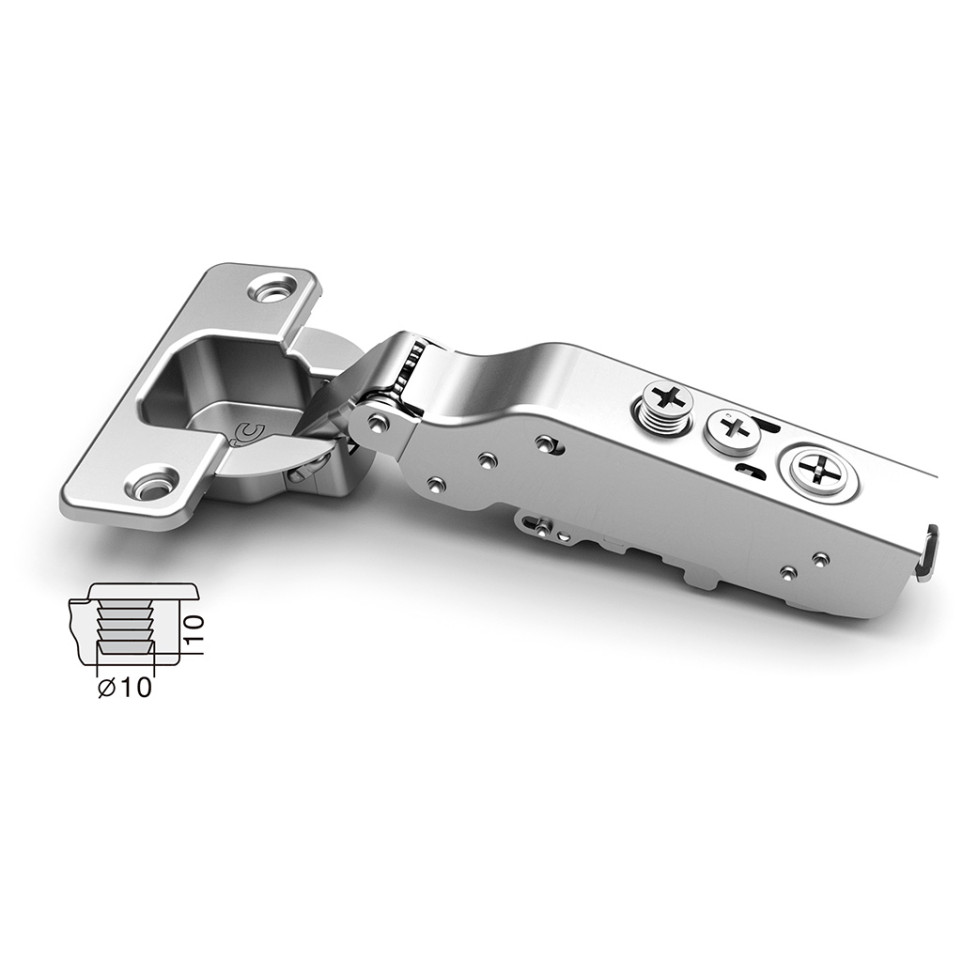

Pivot-Star 110° Nickel Plated Concealed Hinge (Ø10x10mm) with Soft Close and Self Closing for Overlay Doors

Pivot-Star 110° Nickel Plated Concealed Hinge (Ø10x10mm) with Soft Close and Self Closing for Overlay Doors
Pivot-Star 110° Nickel Plated Concealed Hinge (Ø10x10mm) with Soft Close and Self Closing for Overlay Doors
Pivot-Star 110° Nickel Plated Concealed Hinge (Ø10x10mm) with Soft Close and Self Closing for Overlay Doors
Pivot-Star 110° Nickel Plated Concealed Hinge (Ø10x10mm) with Soft Close and Self Closing for Overlay Doors
Pivot-Star 110° Nickel Plated...
Pivot-Star 110° Nickel Plated...
Pivot-Star 110° Nickel Plated...
Pivot-Star 110° Nickel Plated...

Estimated delivery date :  Wednesday 21 October
€2.70 HT
In stock

Ref : FGT-236005

Quantity

Add to your shopping List

You must be logged


Related Products

Description

Product

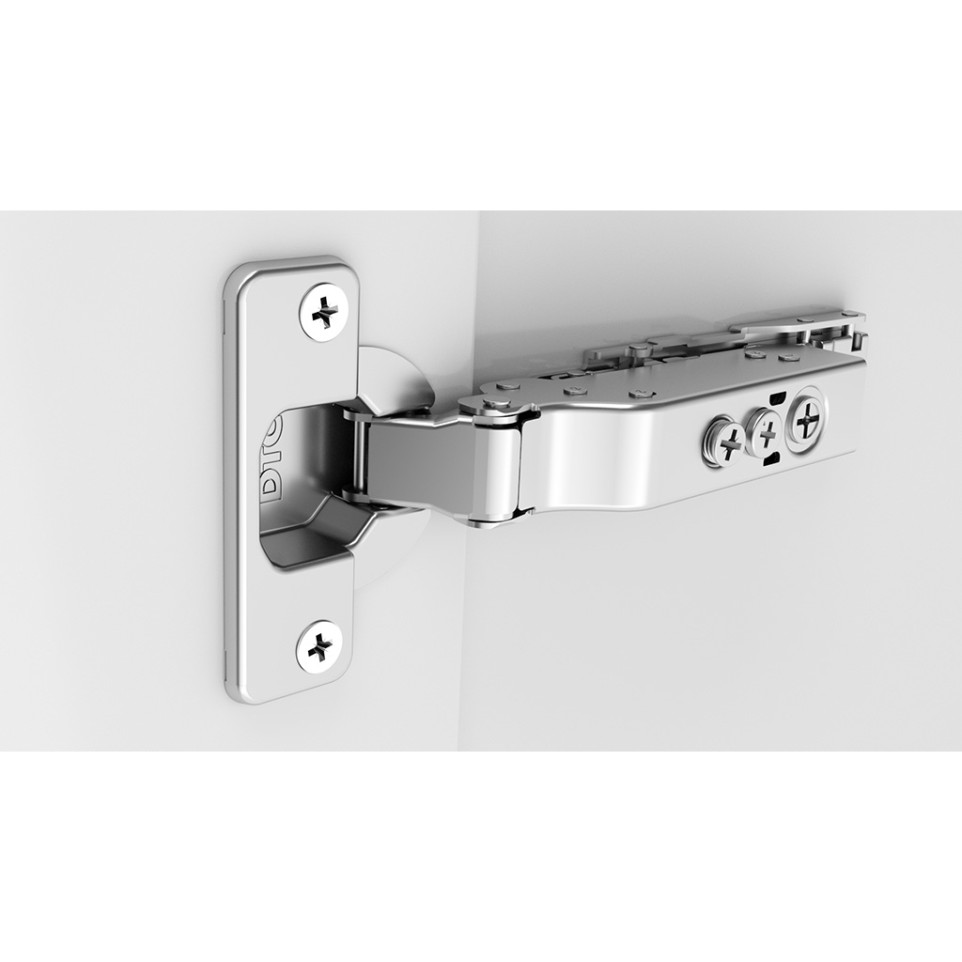

The Charnière Pivot-Star 110° is a nickel-plated stud hinge designed for overlay doors, featuring integrated damping and automatic closing. Ideal for furniture or cabinet doors in residential or commercial settings.

Specifications

  • Nickel-plated finish, fitted with soft-close damping technology and automatic door closing
  • Cup depth: 11.5 mm, cup diameter: 35 mm, overlay hinge design
  • For door thickness: 16–26 mm; suitable for push-in (press-fit) installation

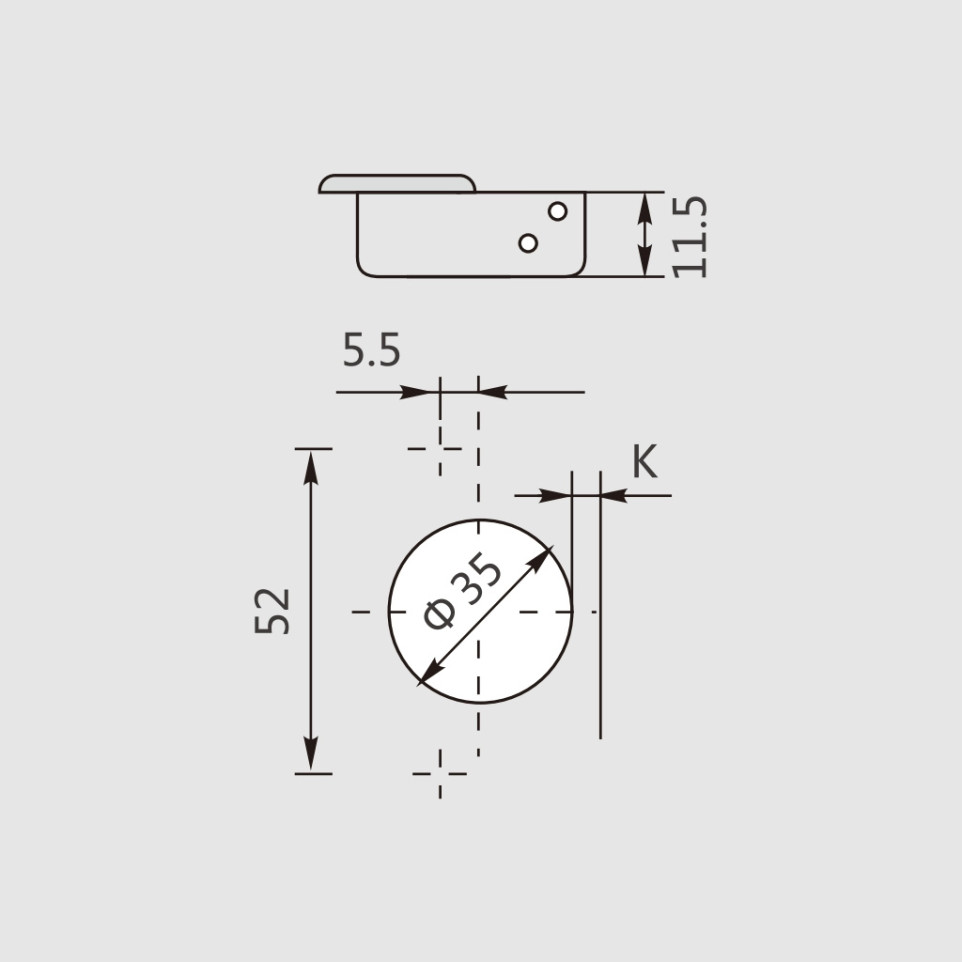

  • Compatible with 52 x 5.5 mm drilling pattern; door drilling distances (K): 3–6 mm
  • Manufactured for reliable, long-term use

Usage

Install this hinge in overlay door applications to benefit from controlled, silent closing and self-closing functionality. The press-fit mounting method and standard drilling dimensions simplify fitting on most common cabinet door types with 16–26 mm thickness.

FAQ

  1. What is the opening angle of this hinge?
  • The hinge offers a 110° opening angle for wide access.
  1. Does the hinge feature soft-closing?
  • Yes, it has integrated soft-close damping for gentle, quiet door closure.
  1. What door thicknesses is this hinge compatible with?
  • It is suitable for doors 16–26 mm thick.
  1. How is this hinge mounted?
  • The hinge is designed for push-in (press-fit) mounting into pre-drilled holes.
  1. What drilling pattern does it require?
  • It requires a 52 x 5.5 mm perforation layout, with door drilling positions (K) of 3–6 mm.
