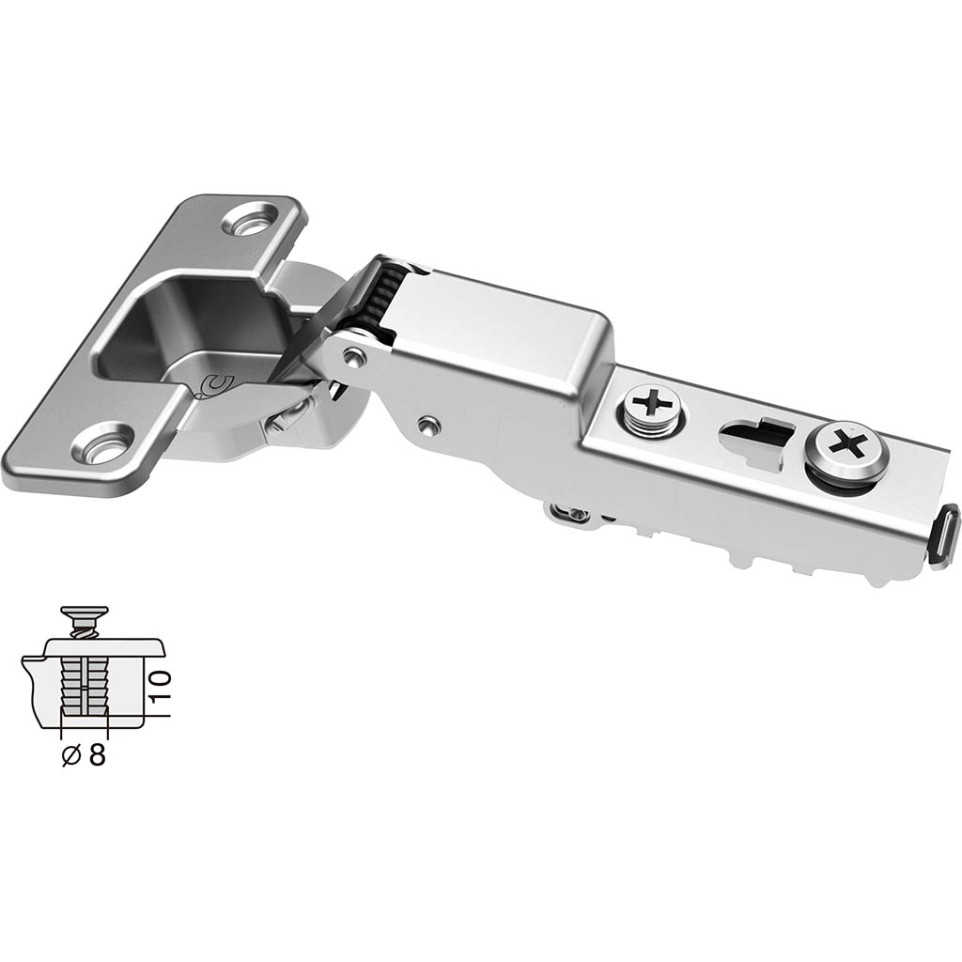

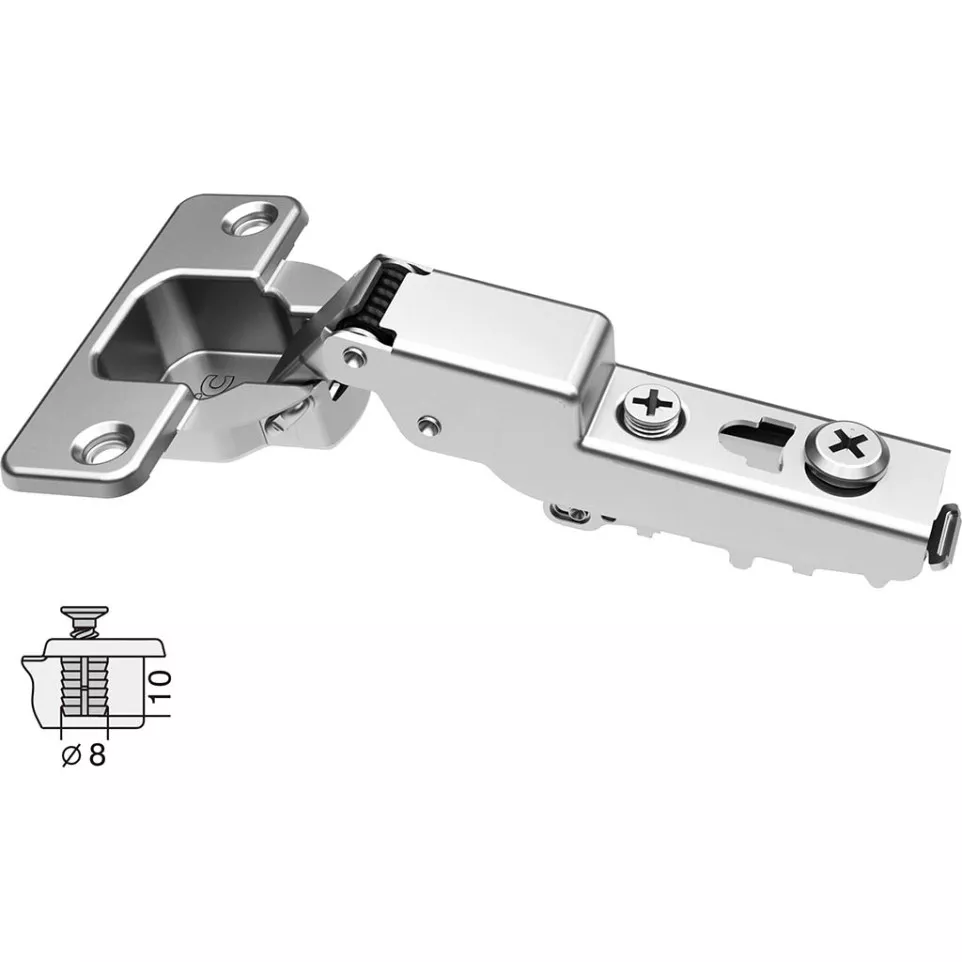

The Charnière Stylish 110° Nickel-plated Screw-on Hinge by DTC is designed for semi-overlay cabinet doors, featuring integrated soft-close and self-closing mechanisms for controlled and quiet operation in kitchens, offices, or storage units.
Specifications
- Nickel-plated steel construction with a 110° opening angle for ample door accessibility
- Integrated soft-close technology and self-closing action to minimize noise and enhance usability

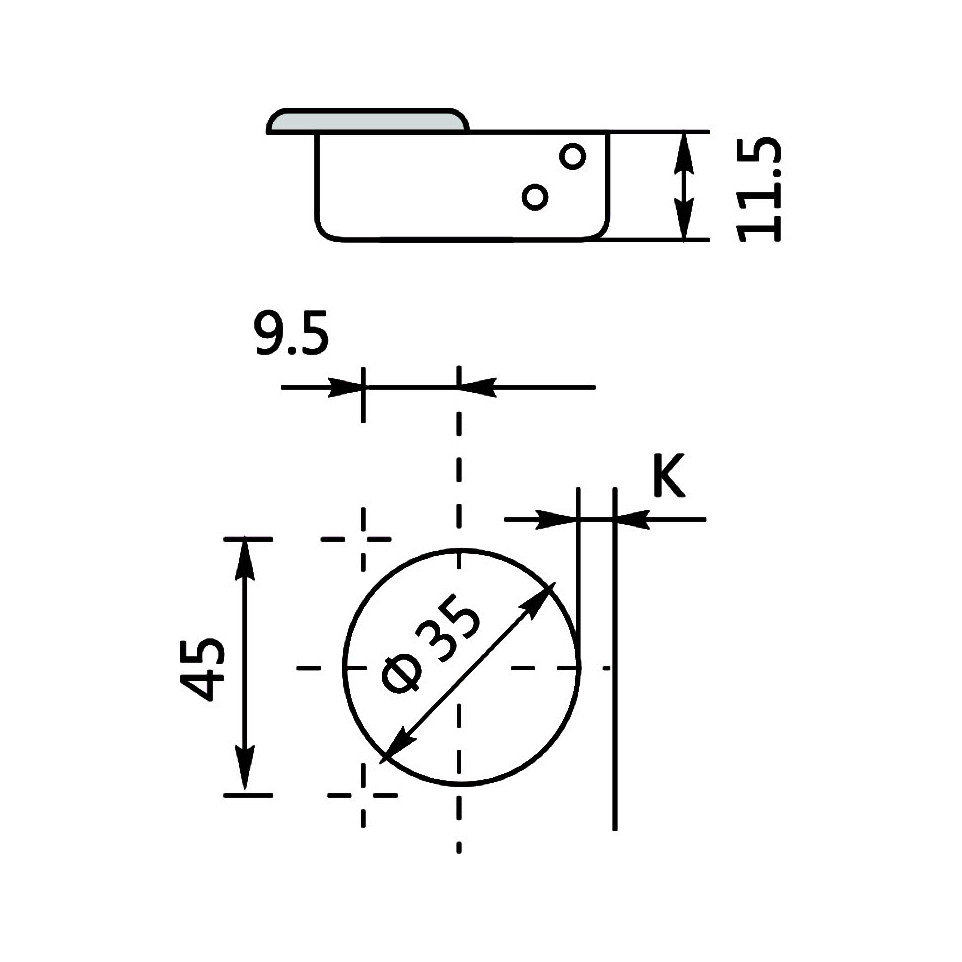

- Hinge cup depth: 11.5 mm; cup diameter: 35 mm; suitable for door thicknesses of 16–26 mm
- Designed for semi-overlay applications; screw-on mounting; drilling pattern 45 x 9.5 mm

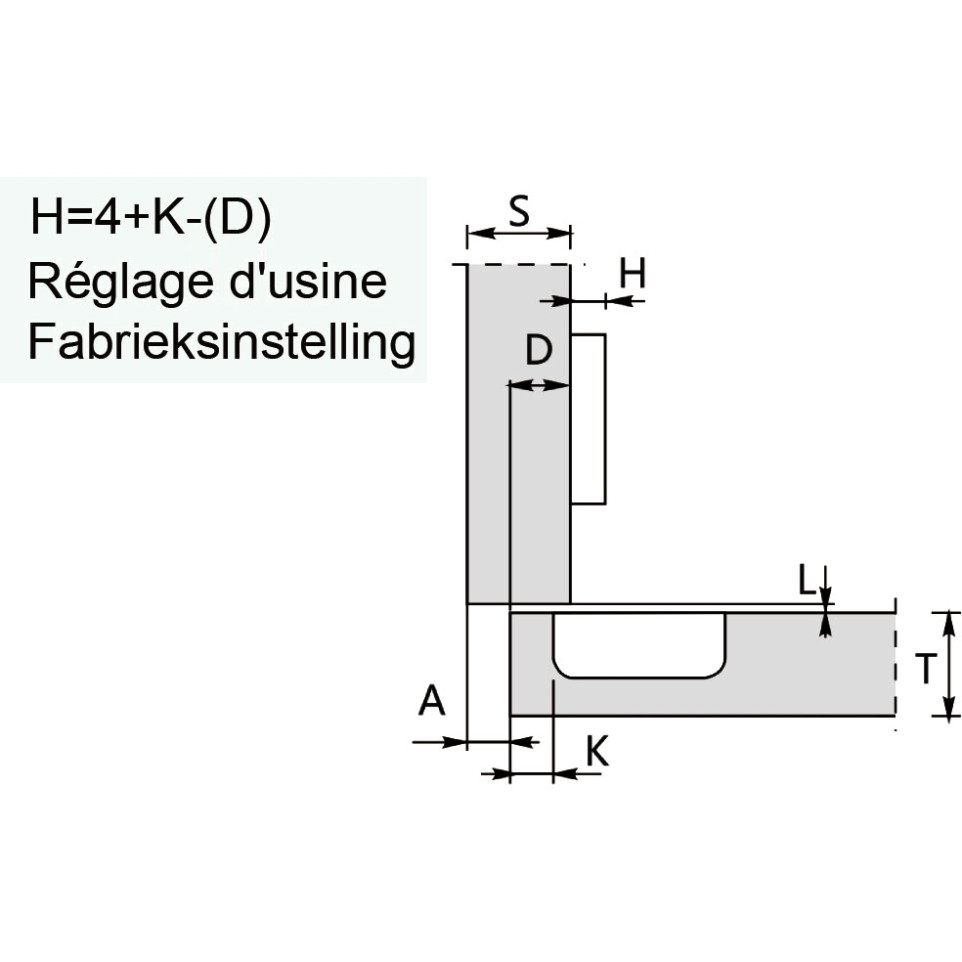

- Adjustable door drilling distance (K): 3–6 mm for flexibility during installation
Usage
Secure the hinge to the cabinet and door using screws, following the 45 x 9.5 mm drilling pattern. The hinge supports smooth door movement and ensures silent, automatic closing. Adjust the position as needed to fit doors between 16 and 26 mm thick in semi-overlay configurations.
FAQ
-
What is the maximum door opening angle?
The hinge opens to 110°, providing wide access to cabinet interiors. -
Does this hinge include a soft-close feature?
Yes, it features integrated soft-close for smooth and quiet door closure. -
Can I use this hinge on doors of varying thickness?
It is suitable for doors with thicknesses from 16 mm to 26 mm. -
What is the required drilling pattern for installation?
The recommended drilling pattern is 45 mm by 9.5 mm. -
Is this hinge suitable for semi-overlay doors only?
Yes, it is specifically designed for semi-overlay applications.
