Usage

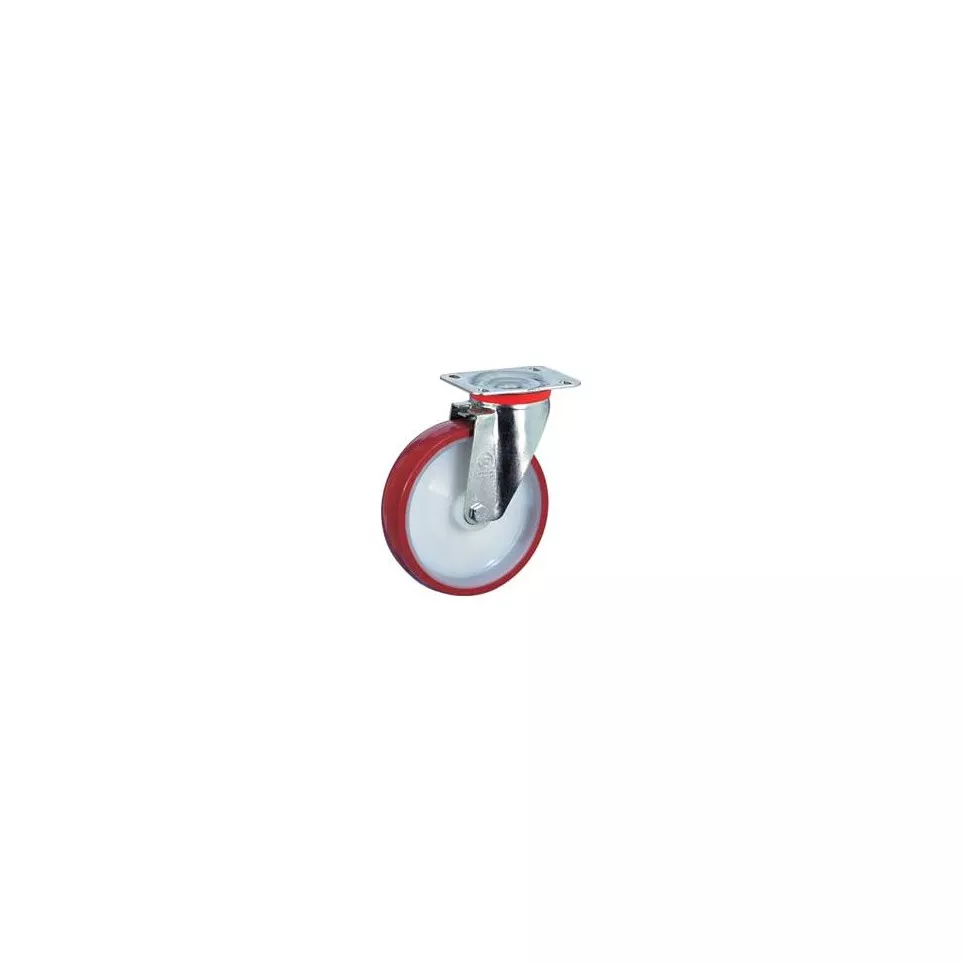

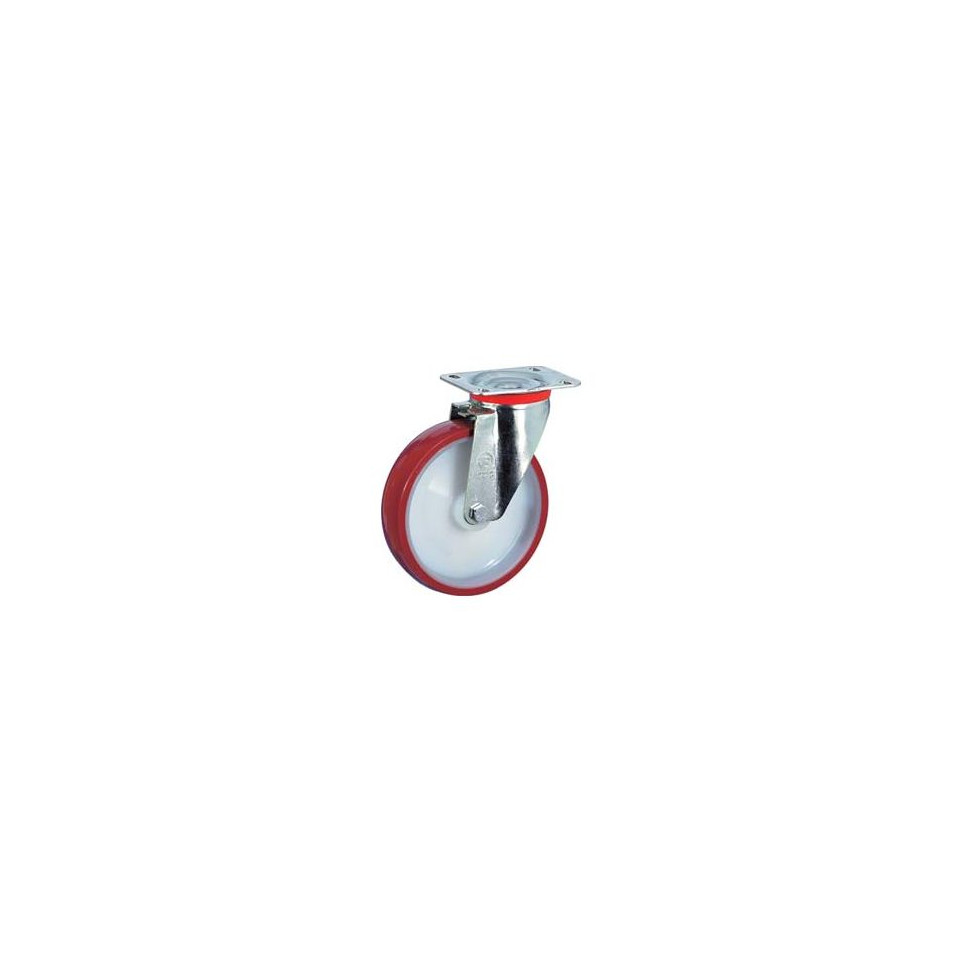

This polyurethane and stainless steel plate caster is designed for transporting loads in industrial environments, especially where hygiene and resistance to moisture or chemicals are required, such as food processing or laboratory settings.
Advantages
- Highly resistant to corrosion due to AISI 304 stainless steel construction
- Smooth rolling and reduced effort with lubricated dual ball bearing design
- Polyurethane tread (60 Shore) offers quiet movement and protects flooring
- Suitable for use in environments exposed to alcohols, glycols, and atmospheric agents
- Not suitable for contact with organic/mineral acids, basic solutions, or saturated steam (usage limitation)
Specifications
- Design: Plate-mounted caster with injected polyurethane tread (60 Shore hardness), wheel core in polyamide 6; hub features ball bearings; axle and main components in AISI 304 stainless steel
- Durability/Certifications: Engineered for demanding industrial applications; resistant to corrosion and wear; supports frequent cleaning operations typical of hygienic settings[3][4]
- Measurable performance: Load capacity up to 170 kg per wheel; wheel diameter: 100 mm; total height: approximately 128 mm[3]
- Differentiating features: Dual grease-lubricated ball bearings ensure smooth rotation while the polyamide dust ring provides additional protection against contaminants[3]
How it works
The caster mounts easily via its plate base. Once installed on equipment or carts, its polyurethane treaded wheel rotates smoothly using a dual-ball-bearing system. Stainless steel parts resist rust while ensuring stable movement across varied surfaces.
