Hoppe Atlanta Button Window Handle 37mm F9 per piece

Product

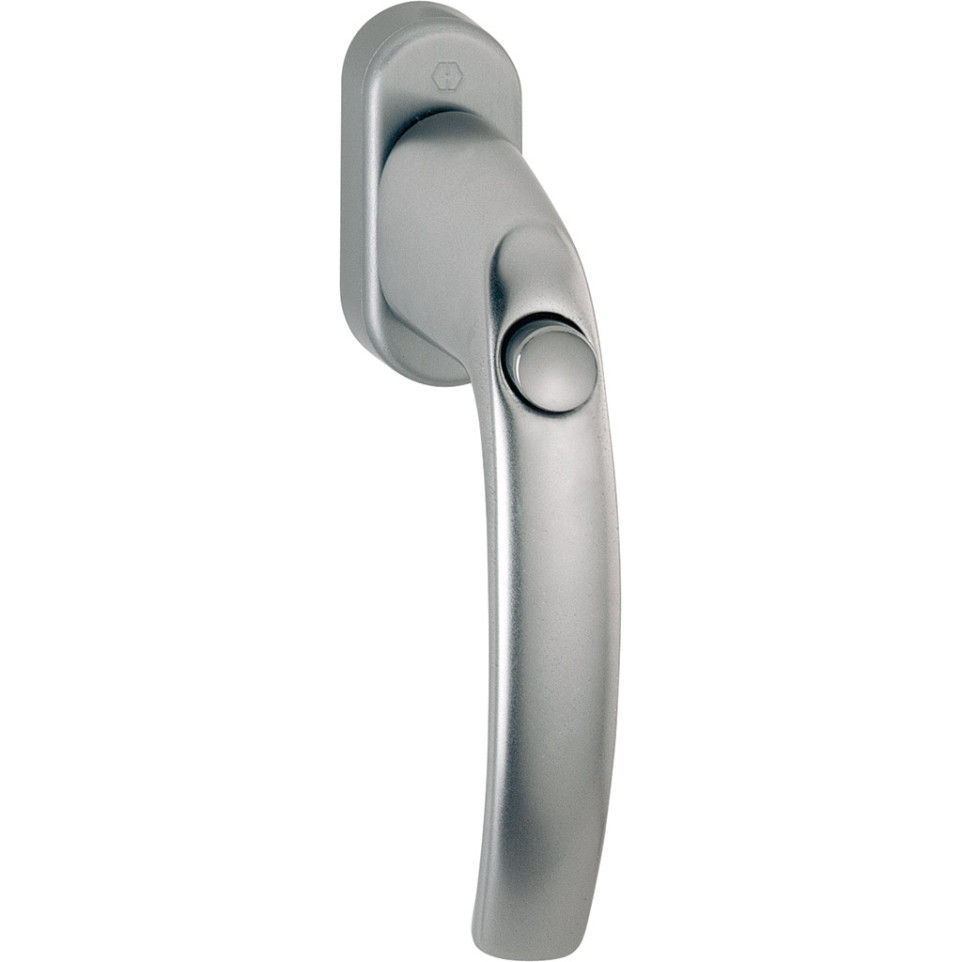

The Hoppe Atlanta window handle is a robust aluminium handle with a 37mm button, designed for tilt-and-turn windows. Ideal for both residential and commercial use, it offers automatic locking for added safety and user convenience.

Specifications

• Aluminium construction with F9 aluminum steel-effect finish
• Automatic push-button locking mechanism
• Stop-in position at 90°
• Removable partial cover cap for streamlined aesthetics
• Polyamide under-base and solid Hoppe spindle (7 mm spindle, 10 mm lug diameter)
• Concealed fixing with M5 threaded screws for a clean installation
• Complies with DIN EN 13126-3 and RAL-GZ 607/9 standards
• Suitable for frequent use and built to withstand daily operation

Usage

Mount the handle on tilt-and-turn windows using the included concealed M5 screws. The automatic locking push-button enhances security by preventing unauthorized opening, while the ergonomic design offers a comfortable grip. The removable cover cap ensures easy maintenance and discreet hardware appearance.

FAQ

1. What type of windows is this handle compatible with?

   • It is compatible with tilt-and-turn (oscillo-battante) windows.

2. Is the locking system automatic or manual?

   • The handle features an automatic push-button locking system for enhanced security and ease of use.

3. Are the fixing screws visible after installation?

   • No, the installation uses concealed M5 threaded screws for a seamless finish.

4. What are the materials used in the handle?

   • The handle is constructed from sturdy aluminum with a polyamide under-base and solid Hoppe spindle.

5. Does the handle meet any specific standards or certifications?

   • Yes, it is tested and certified according to DIN EN 13126-3 and RAL-GZ 607/9.
