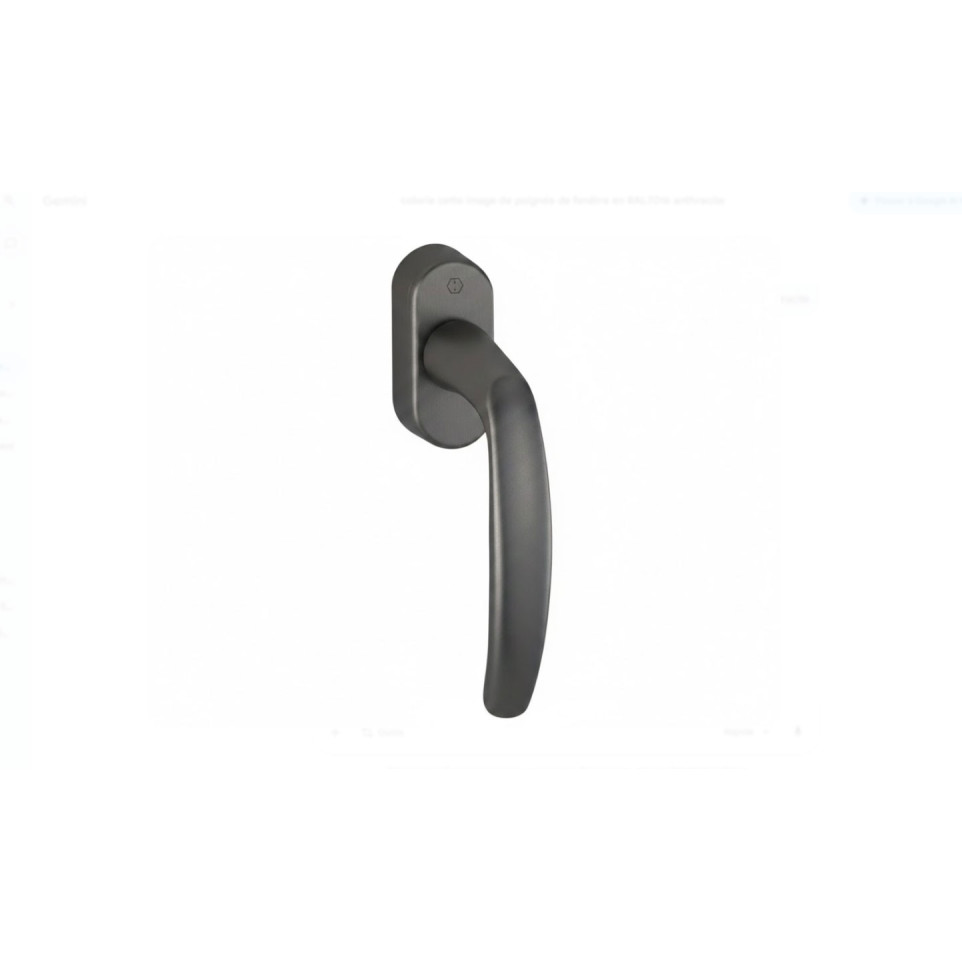

Hoppe Atlanta Secustik 90° Tilt and Turn Window Handle 32-42mm + 2 M5x45 & 50 Screws RAL 7016 per piece

Hoppe Atlanta Secustik 90° Tilt and Turn Window Handle 32-42mm + 2 M5x45 & 50 Screws RAL 7016 per piece
Hoppe Atlanta Secustik 90° Tilt and Turn Window Handle 32-42mm + 2 M5x45 & 50 Screws RAL 7016 per piece
Hoppe Atlanta Secustik 90° Tilt and...
Hoppe Atlanta Secustik 90° Tilt and...

Estimated delivery date :  Friday 24 July
€9.56 HT
In stock

Ref : FGT-1023305

Variantes

Hoppe Atlanta 90° Secustik Window Handle 32-42 mm + 2 M5x45 & 50 Screws F1 / pc Hoppe Atlanta 90° Secustik Window Handle 32-42 mm + 2 M5x45 & 50 Screws F1 / pc Hoppe Atlanta 90° Secustik Window Handle 32-42mm Brown RAL 8077 with 2 M5x45 & 50 Screws per piece Hoppe Atlanta 90° Secustik Window Handle 32-42mm Brown RAL 8077 with 2 M5x45 & 50 Screws per piece Hoppe Atlanta 90° Secustik Window Handle 32-42mm Cream RAL 9001 with 2 M5x45 & 50 Screws per piece Hoppe Atlanta 90° Secustik Window Handle 32-42mm Cream RAL 9001 with 2 M5x45 & 50 Screws per piece Hoppe Atlanta 90° Secustik Window Handle 32-42mm with 2 M5x45 and 50 Screws F9 per piece Hoppe Atlanta 90° Secustik Window Handle 32-42mm with 2 M5x45 and 50 Screws F9 per piece Hoppe Atlanta Secustik 90 Degree Tilt and Turn Window Handle 32-42 mm Polished Brass with 2 M5x45 & 50 Screws per piece Hoppe Atlanta Secustik 90 Degree Tilt and Turn Window Handle 32-42 mm Polished Brass with 2 M5x45 & 50 Screws per piece Hoppe Atlanta Secustik 90° Window Handle 32-42mm White RAL 9016 with 2 M5x45 & 50 Screws per piece Hoppe Atlanta Secustik 90° Window Handle 32-42mm White RAL 9016 with 2 M5x45 & 50 Screws per piece Hoppe Atlanta Secustik 90° Window Handle 32-42mm with 2 M5x45 and M5x50 Screws RAL 8003 per piece Hoppe Atlanta Secustik 90° Window Handle 32-42mm with 2 M5x45 and M5x50 Screws RAL 8003 per piece Hoppe Atlanta Secustik Tilt and Turn Window Handle 90° 32-42mm with 2 M5x45 and 50 Screws Matte Black F9714M per piece Hoppe Atlanta Secustik Tilt and Turn Window Handle 90° 32-42mm with 2 M5x45 and 50 Screws Matte Black F9714M per piece
Quantity

Add to your shopping List

You must be logged


Description

About this article


Usefulness

This product is used for securing and operating turn/tilt windows, providing a secure and functional solution for architectural fittings.


Advantages
  • Patented locking mechanism in the Secustik window handle to prevent manipulation of the outside of the fitting.
  • Integrated locking mechanism for basic security against moving the architectural fitting.
  • Concealed fixing for M5 thread screws.
  • Smooth adjustment thanks to the pressure spring integrated in the handle neck.
  • Tested to DIN EN 13126-3 and RAL-GZ 607/9 standards.
  • Available in a range of finishes, including F1 aluminium silver effect and F9714M matt black.

Specificities
  • Material: Aluminium.
  • Spindle size: 7 mm.
  • Spindle length: 32-42 mm.
  • Lug diameter: 10 mm.
  • Stop position: 90°.

Operation

The Poignée Hoppe Atlanta 90° Secustik window handle operates by turning the handle to secure or open the window. The integrated locking mechanism provides a clear audible click when the window is locked, ensuring secure operation.

See more

Product Details

Brand Hoppe
Finishing laqué
Colour Anthracite
Material used aluminium
RAL 7016
Type of olives à carré
Square/Fork Length (mm) 32-42
Olive model Atlanta
Function of the olive standard
