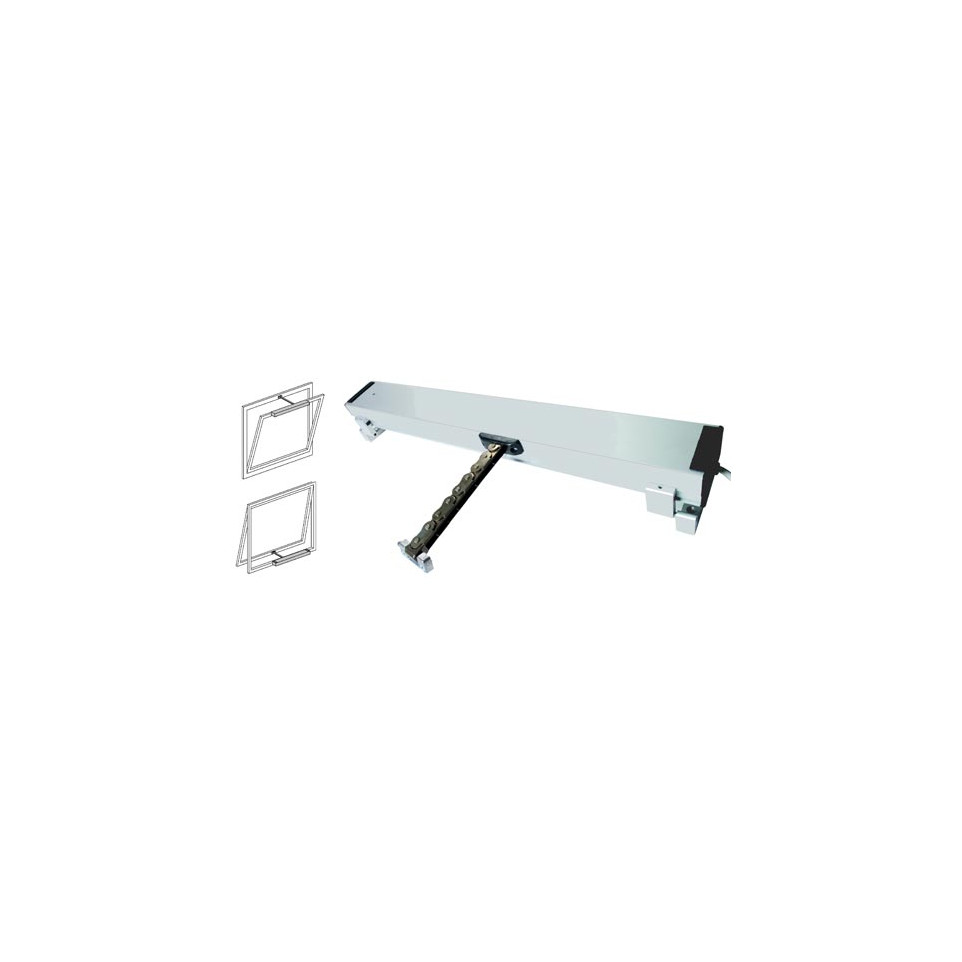

UCS Super Master Silver Chain Actuator 24 Vdc per piece

Usage

The UCS Super Master 24 Vdc chain actuator is designed for automating the opening and closing of high-level windows, skylights, and roof vents in commercial or residential buildings. It is suitable for smoke and heat extraction systems.

Advantages

• Compatible with smoke and heat extraction systems according to UNI EN 12101-2
• Provides a powerful maximum push/pull force of 400 N for demanding applications
• Anodized silver finish ensures durability and corrosion resistance
• Suits a wide range of window types, including top-hung, bottom-hung, and roof windows
• Allows electronic parallel connection for synchronized operation of multiple actuators

Specifications

• Anodized aluminum body with reinforced double-link stainless steel chain technology for extended lifespan and strength [Design]
• Satisfies UNI EN 12101-2 certification requirements; suitable for use in certified smoke ventilation systems [Certifications]
• Maximum force: up to 400 N; stroke length: available in variants such as up to approximately 600 mm; operating voltage: DC version at nominally +24 Vdc (±15%); current draw at max load: approx. 1.2 A [Performance]
• Electronic limit stops prevent motor overload; compact design allows integration into restricted spaces; supports electronic feedback if required [Features]

How it works

This actuator operates by extending or retracting a robust double-link chain when supplied with power at the specified voltage. It opens or closes window sashes automatically upon command via building control systems or manual switches.
