Stainless Steel DIN Strike Plates for Flush Door / pc
€4.94
In stock
Usage
This DIN lock is designed for left-handed (DIN R) single-point applications on public, residential, or commercial doors using notch (entrée) cylinders. Suitable for renovation or construction projects requiring reliable mechanical security and anti-friction performance.
Advantages
- Complies with stringent DIN EN 12209 and EN 179 safety and quality standards
- Features antifriction latch bolt for smooth, silent closing
- Robust nickel-plated steel latch and deadbolt improve durability
- Satin stainless steel finish resists corrosion in demanding environments
- Easily integrates with euro-profile cylinders; handed design ensures secure installation on specified door orientation
Specifications
- Design & Materials: Lock case is galvanized and blue lacquered; forend in satin stainless steel AISI 304; triple-latch bolt mechanism in sintered, nickel-plated steel.
- Durability & Standards: Fire resistance tested up to EN standards—up to two hours on wooden doors, four hours on metal doors. Certified per DIN EN ISO 9001 quality management.

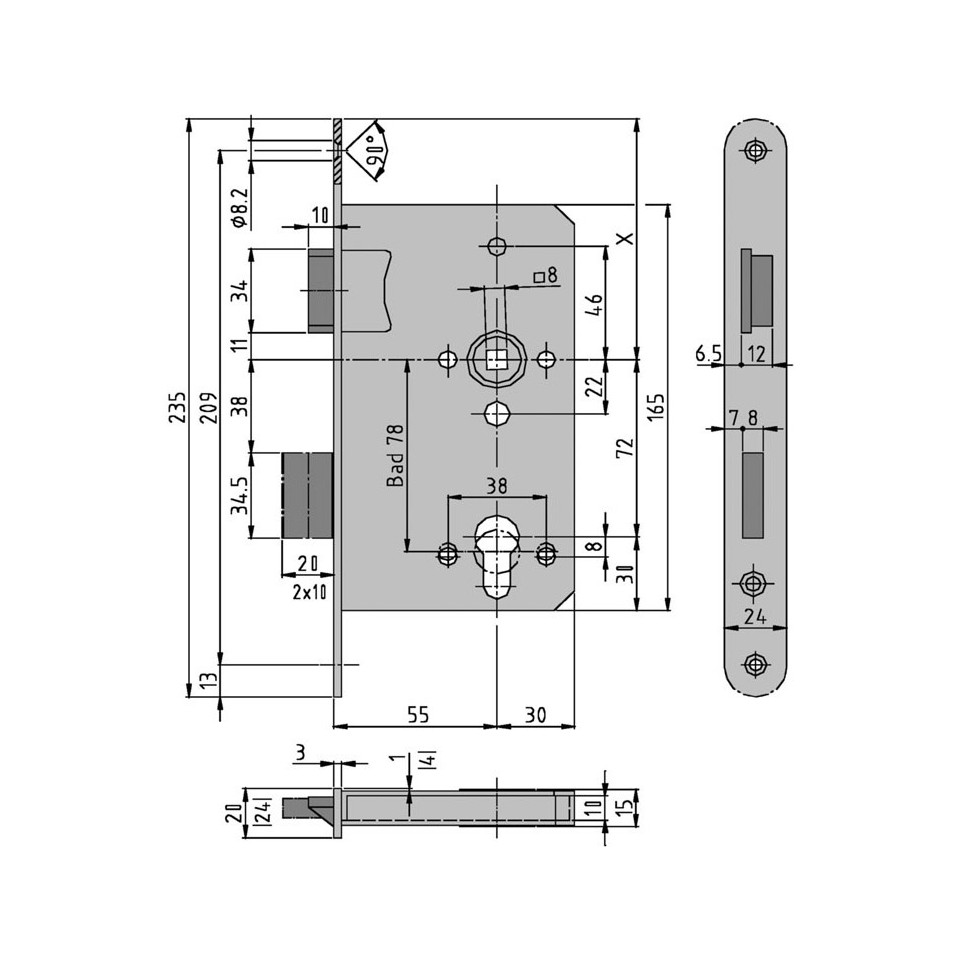

- Measurable Performance: Backset: 55 mm; centre distance: 72 mm; follower: Ø8 mm steel. Forend dimensions: width of up to 24 mm x length of approximately 235 mm. Single-throw deadbolt extends by up to approx. 20 mm.
- Differentiating Features: Includes anti-thrust/anti-friction latch technology, noise-damping features as standard, transmission bar compatibility, prepared for euro-profile cylinder integration.
How it works
The lock operates using a key inserted into a compatible euro-profile cylinder. Turning the key withdraws or extends the nickel-plated deadbolt and activates the antifriction latch mechanism, allowing smooth engagement or release of the door with minimal closing noise and reduced wear over time.
