Stainless Steel DIN Strike Plates for Flush Door / pc
€4.94
In stock
Usage

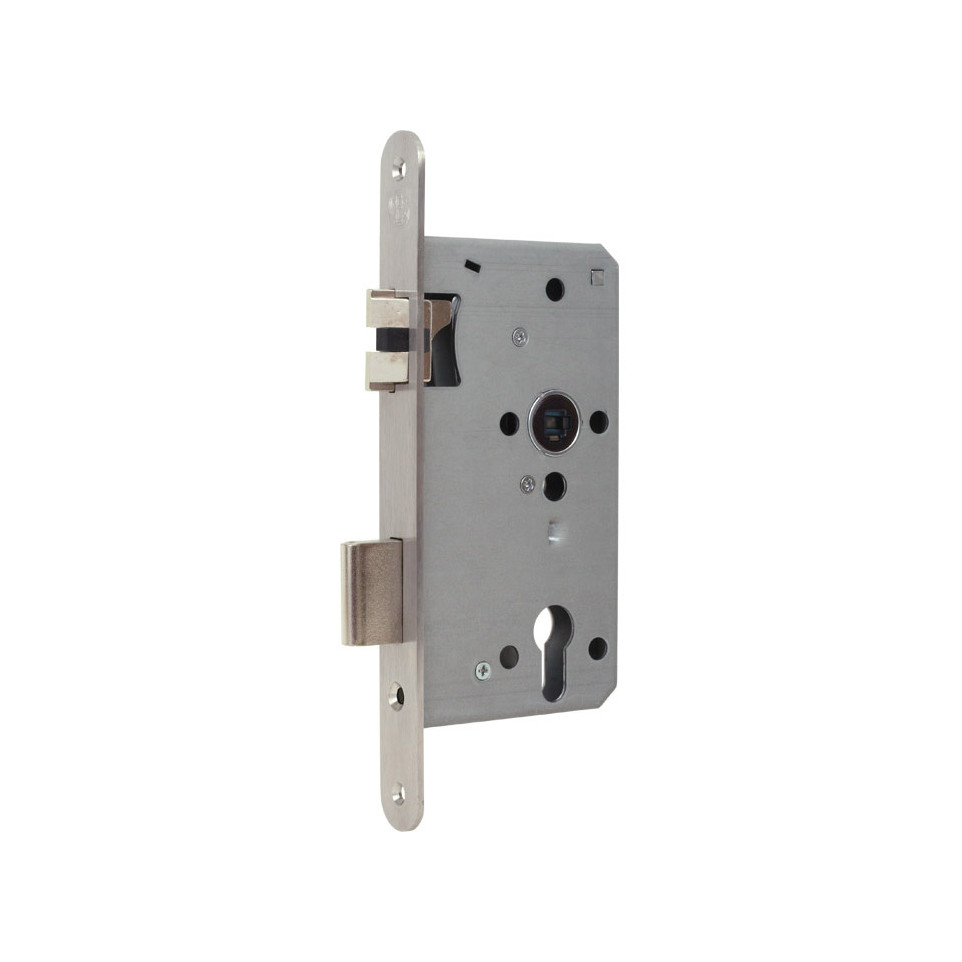

The Serrure DIN pour projets CES LOCKS PZW with antifriction latch is designed for secure interior or exterior doors in residential, commercial, or industrial settings requiring a single-point mortise lock with reliable daily performance.
Advantages
- Complies with DIN 18251-1 and EN 12209 security and quality standards
- Antifriction latch ensures smooth, quiet operation and minimal wear on door hardware
- Robust construction: nickel-plated steel deadbolt and latch for extended service life
- Satin stainless steel forend provides corrosion resistance and modern aesthetics
- Handed design (DIN right), ensuring precise fit; not reversible—hand must be specified at order
Specifications

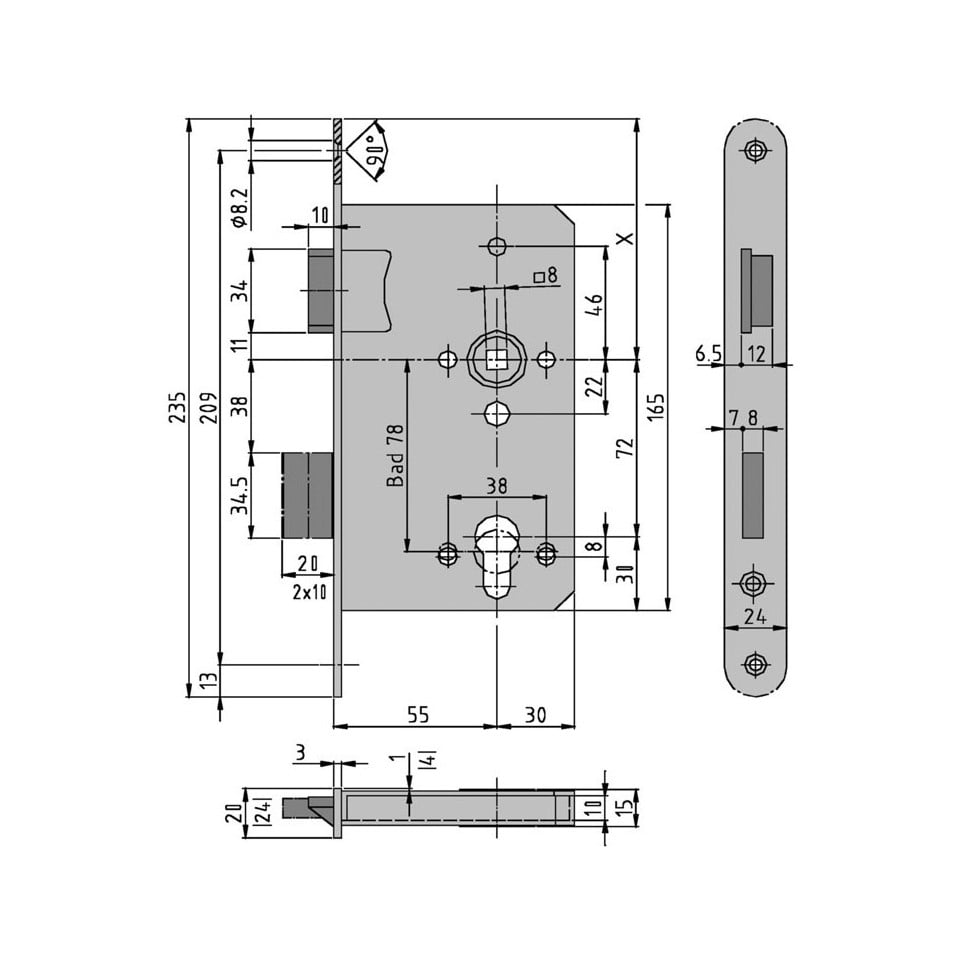

- Casing: galvanized, blue lacquered; forend: satin stainless steel (AISI 304), dimensions 24 x 235 mm (flush/rebated doors)
- Lifespan suitable for high-frequency use; compliant with EN durability testing requirements; meets fire protection standards where applicable
- Backset: 55 mm; Centre distance: 72 mm; Follower size: Ø8 mm (sintered steel); Latch/deadbolt throw: up to 20 mm single action
- PZW function enables profile cylinder integration; includes mechanical anti-thrust mechanism to block forced retraction of the latch bolt
How it works
The lock operates via a profile euro cylinder. When actuated by key or handle, the antifriction latch easily retracts into the case to open the door. The anti-thrust system helps prevent tampering when closed.
