Usage

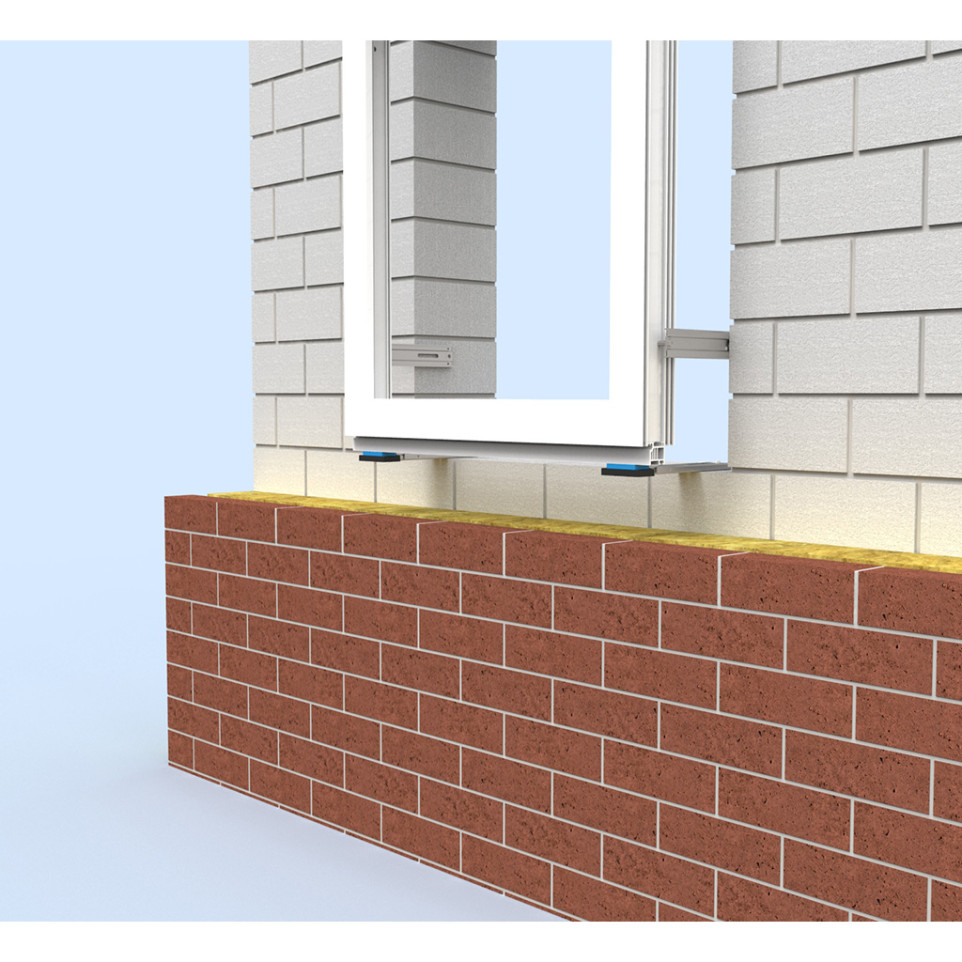

The Patte inférieure 155mm en U JB-DK-U155 is designed for the secure and adjustable installation of windows in front of load-bearing walls, particularly in double-wall constructions. It ensures structural stability for various window profiles.
Advantages
- High load-bearing capacity due to rigid construction
- Suitable for use with all major commercial window profiles
- Pre-assembly at the factory possible for efficient site installation
- Complies with stringent fire safety standards (DIN 4102-1 class A)
- Cantilever capability up to 150 mm enables versatile applications
Specifications

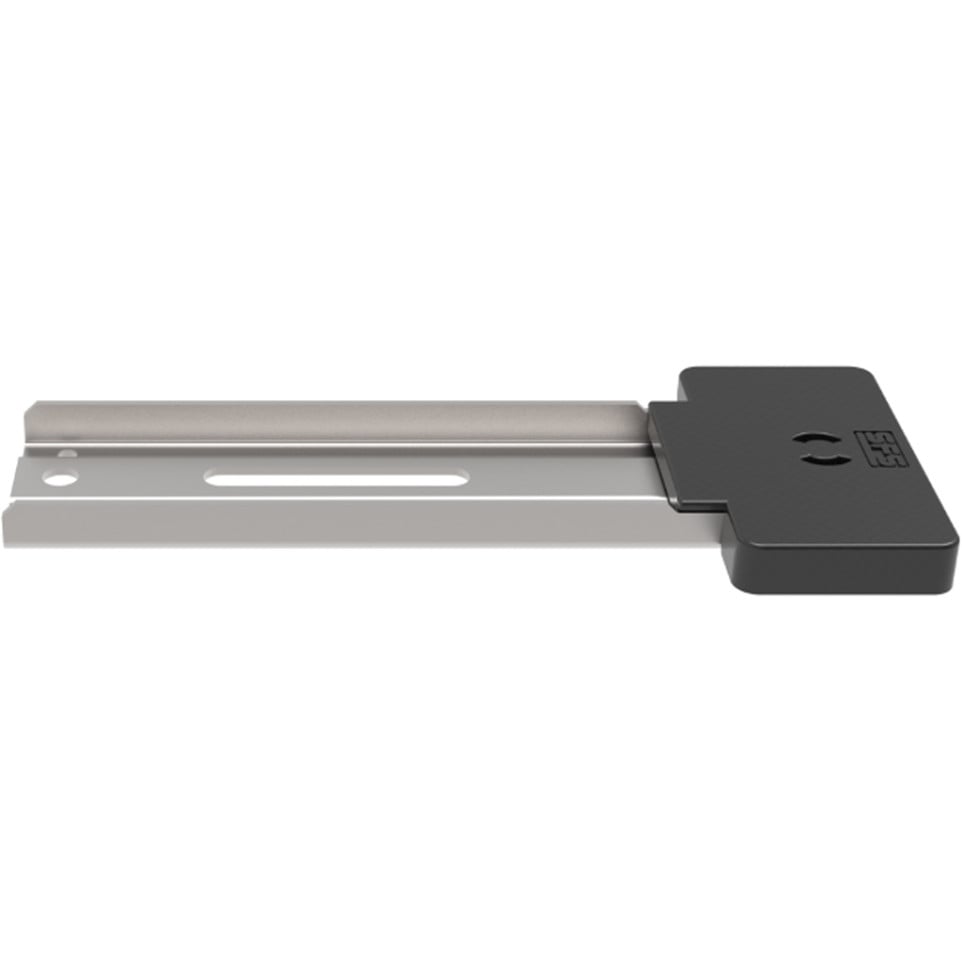

- Material: Galvanised steel S350, thickness: approximately 2 mm, width: about 47 mm, length: 155 mm [1][10]
- Covers cantilevers up to a maximum of 150 mm [10]
- IfT certified; meets requirements for fire classification DIN 4102-1 class A and quality standards [10]
- Suits direct fastening into concrete, lime-sandstone, aerated concrete or timber substrates [1]
How it works

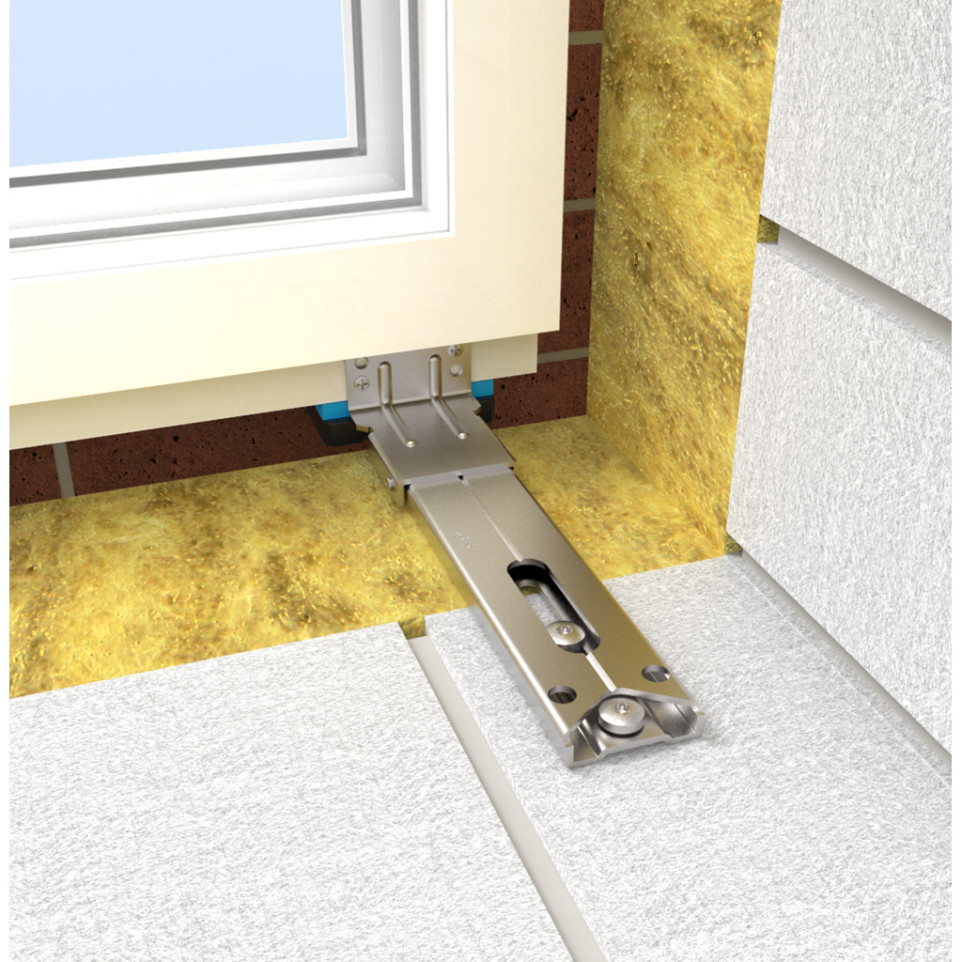

The bracket is attached at the base of a window frame using appropriate fasteners and anchors. Its U-shape ensures distributed support across the structure. Adjustable during installation, it compensates for minor construction tolerances while securely transferring loads from window assemblies into building substrates.
