Lower U Bracket 185mm JB-DK-U185 / Piece
€9.26
In stock
Usage

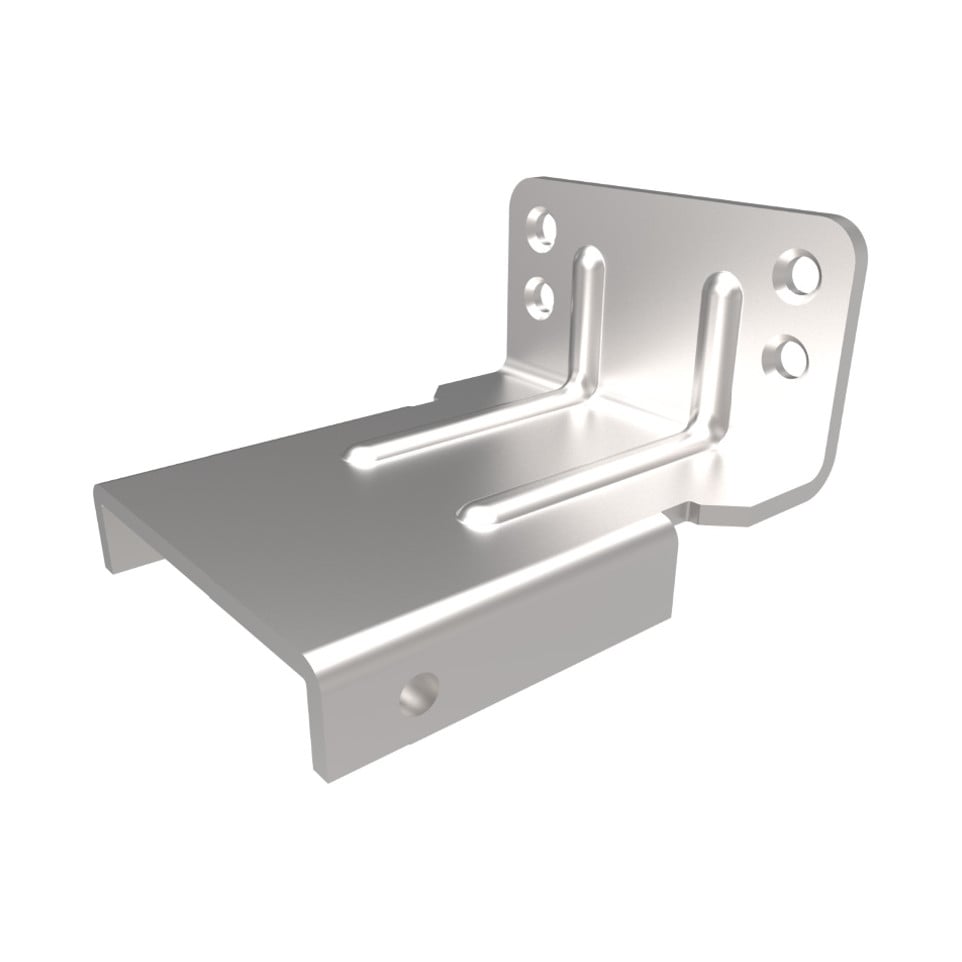

The Patte de connexion 65mm JB-D-W65/47 is designed for securing and connecting window or façade elements to structural substrates. It is commonly used in front-of-wall installation systems where reliable mechanical fastening is essential.
Advantages
- Enables safe load transfer from windows or façade elements to the building structure
- Made of non-combustible galvanized steel for enhanced fire resistance (DIN 4102-1, class A)
- Certified durability and performance with national technical approval (abZ) and ift certification
- Compatible with all common frame materials and wall substrates, increasing application flexibility
- Straightforward installation supports compliant fabrication and assembly; minor drawback: requires adherence to specific installation guidelines for optimal results
Specifications
- Material: Galvanized steel S350 GD Z275, non-combustible in accordance with DIN 4102-1 class A standards
- Awarded national technical approval Z-14.4-806 by DIBt; certified for burglar resistance; complies with ift guidelines on safety barrier applications[2]
- Main dimensions: Length—65 mm; typical width—47 mm; thickness—approximately 2.5 mm depending on variant[2]
- Error-tolerant rigid bracket design accommodates substantial point loads and cantilevers up to approximately 150 mm depending on system configuration[2]
How it works
The bracket is mechanically fixed between the window or façade frame and the substrate, securely transferring operational forces as point loads. Installation follows approved protocols to ensure compliance with building codes.
