Adhesive White SystemCach Hole Cover 20mm Diameter per Piece
€3.52
In stock
About this article
Usefulness

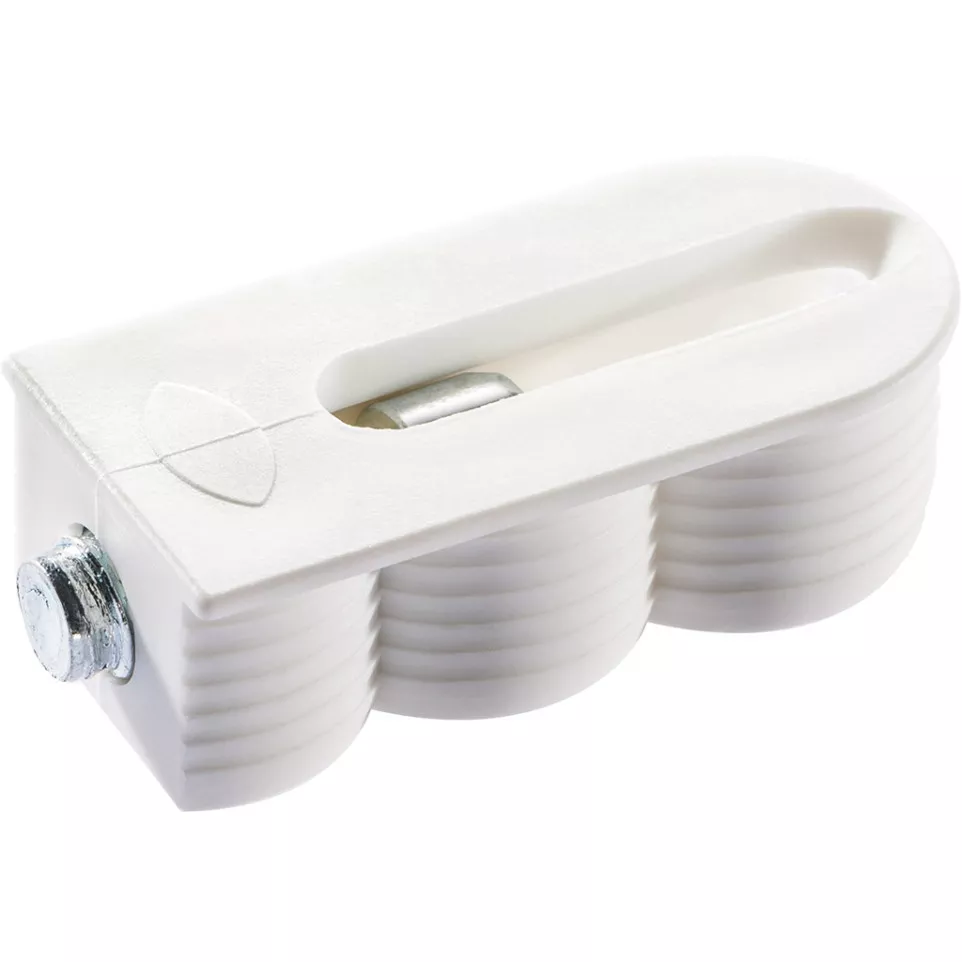

The Lamello Cabineo 12 is a one-piece cabinet connector designed for efficient assembly of furniture frames without the need for edge drilling. It is ideal for use with CNC machines and offers faster installation and higher clamping force compared to traditional cam and dowel fittings.
Advantages
- Efficient production process with all CNC machines
- Faster machining and assembly
- Higher clamping force for stable connections
- No need for wooden dowels
- Pre-assembled screw for quick and powerful installation
- Available in various colors for cover caps
- Black housing option for dark materials
- Reduced risk of damage to finished surfaces
- Less handling of loose fittings during installation
- Minimized packing and transportation of fittings
Specificities
- Fibreglass reinforced plastic material
- 33.8 x 16.5 x 10.8 mm size
- 12 mm cutter diameter
- 5 mm drill hole diameter
- Tensile strength ~ 900 N
- Longitudinal installation tolerance ± 0.1 mm
Operation

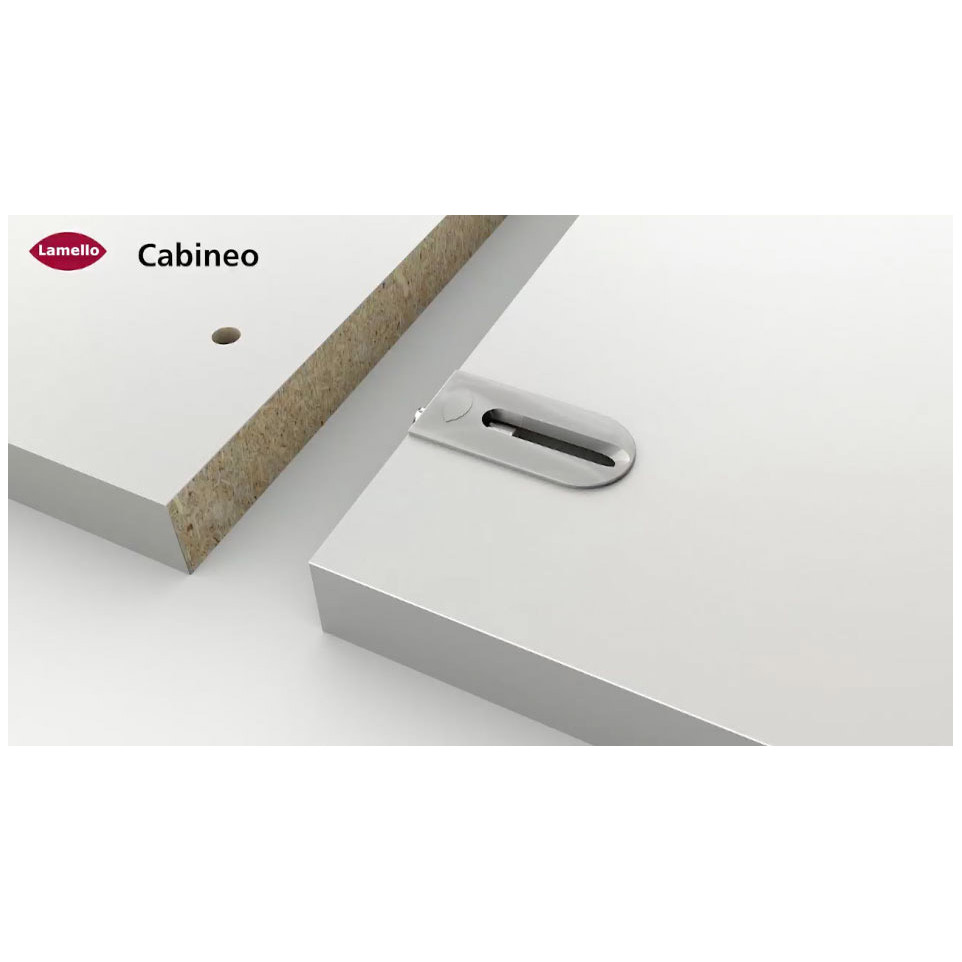

The Cabineo is installed into a drilled or routed shape on the surface. The pre-assembled screw is then screwed into the 5 mm drill hole of the corresponding workpiece using a ball-end allen key. This process can be done in the workshop or at the final destination, ensuring quick and powerful assembly.
