Automatic Drop Down Seal CCE APPLIQ 1340 Silver 630mm / pc

Automatic Drop Down Seal CCE APPLIQ 1340 Silver 630mm / pc
Automatic Drop Down Seal CCE APPLIQ 1340 Silver 630mm / pc
Automatic Drop Down Seal CCE APPLIQ...
Automatic Drop Down Seal CCE APPLIQ...

Estimated delivery date :  Friday 24 July
€35.44 HT
In stock

Ref : FGT-195026

Variantes

Automatic CCE APPLIQ 1340 Silver 1230mm / piece Automatic CCE APPLIQ 1340 Silver 1230mm / piece Automatic CCE Silver Plinth 1340 730mm / pc Automatic CCE Silver Plinth 1340 730mm / pc Automatic Drop Down Seal CCE APPLIQ 1340 Silver 530 mm / pc Automatic Drop Down Seal CCE APPLIQ 1340 Silver 530 mm / pc Automatic Skirting Board CCE APPLIQ 1340 SILVER 1030mm / pc Automatic Skirting Board CCE APPLIQ 1340 SILVER 1030mm / pc Automatic Skirting Board CCE APPLIQ 1340 SILVER 930mm / pc Automatic Skirting Board CCE APPLIQ 1340 SILVER 930mm / pc CCE APPLIQ 1340 Automatic Baseboard Silver 1130mm per piece CCE APPLIQ 1340 Automatic Baseboard Silver 1130mm per piece CCE APPLIQ 1340 Automatic Drop Down Seal Silver 830mm per piece CCE APPLIQ 1340 Automatic Drop Down Seal Silver 830mm per piece
Quantity

Add to your shopping List

You must be logged


Description

Product

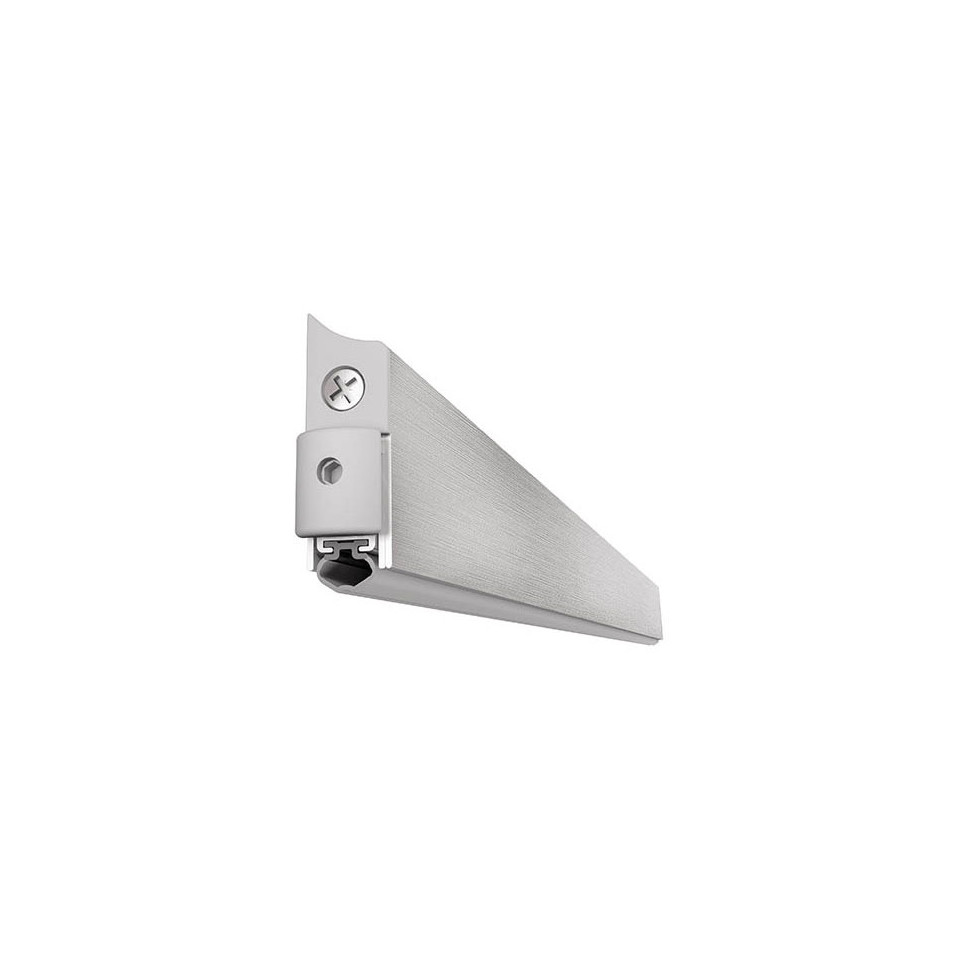

The CCE APPLIQ 1340 SILVER automatic baseboard seals gaps between swing doors and floors, ensuring effective air, dust, and sound insulation with a surface-mounted design in anodized aluminum finish, 630mm length per piece (Ref: 195026).

Specifications

  • Surface-mounted (applique) design in silver anodized aluminum; rigid push-rods system in glass-fiber reinforced nylon; steel push-button coated in nylon, adjustable via 3mm hex key; co-extruded thermoplastic fire-retardant seal (rigid + flexible).
  • Engineered for uniform pressure on all floor types; internal testing for air/water/wind performance by CCE.
  • Compatible with all door types; maximum shortening of 150mm.

Usage

When the door closes, the push-button compresses against the frame or stop, activating the rigid nylon push-rods. This lowers the internal mobile profile in a guillotine motion—first on the button side, then the opposite—deploying the seal along the full door length to adhere to the floor and seal gaps.

FAQ

  1. What types of doors is this baseboard compatible with? - It fits all types of swing doors.
  2. How do I adjust the push-button? - Use a 3mm hexagonal key to regulate its position.
  3. What material is the seal made from? - Co-extruded thermoplastic that is fire-retardant, combining rigid and flexible parts.
  4. Can the baseboard be shortened? - Yes, up to a maximum of 150mm.
  5. Does it work on all floor types? - Yes, the rigid push-rods ensure uniform pressure and adherence on any floor surface.

mvm-dt-2025-07-20

See more

Product Details

Brand CCE
Length (in mm) 630
Stroke ( mm ) 14
Noise level (dBA) 29,00
FGT-195026
New
