Product

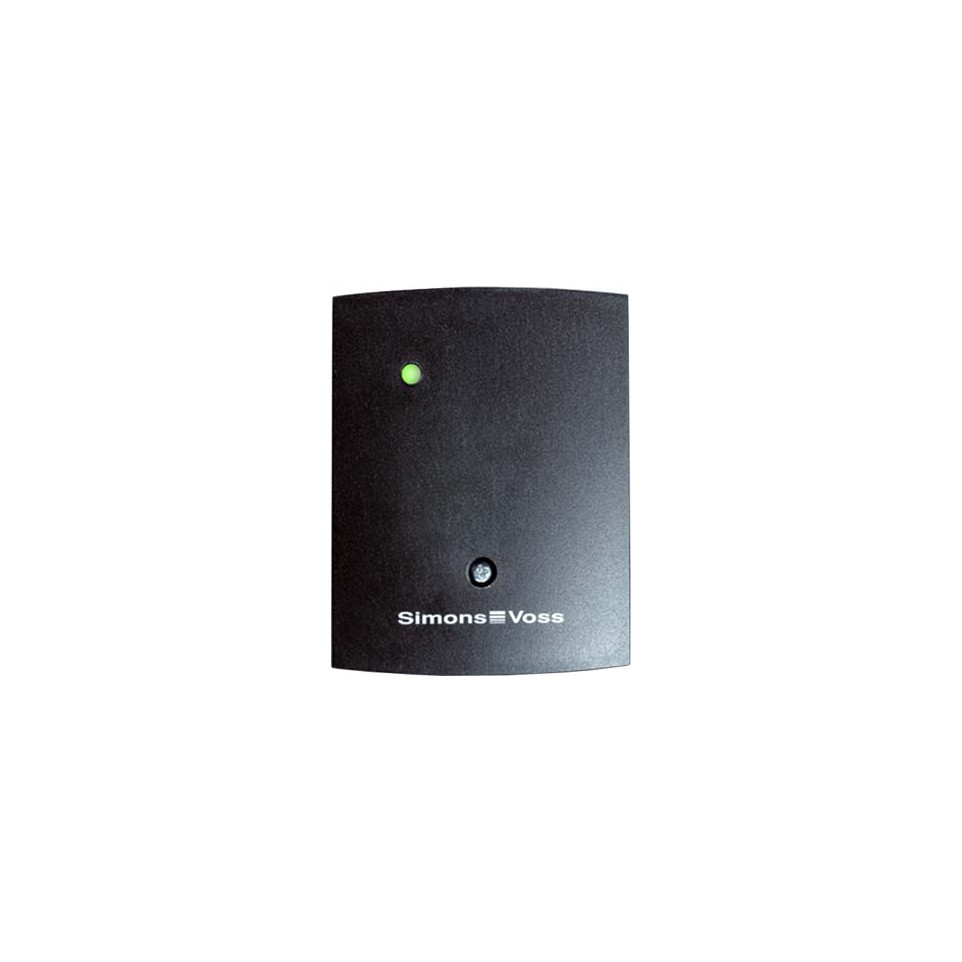

The SimonsVoss Smart Relais "Advanced" with integrated antenna is an advanced electronic relay module designed for secure and flexible access control. Suitable for integration into modern building management systems, it offers comprehensive relay control for doors, gates, and other access points.
Specifications
- Robust glass-fibre reinforced plastic housing with increased wall thickness for impact protection (IK09)
- Dimensions: 71.8 × 55.4 × 25.1 mm
- Protection rating: IP20
- Operating temperature: -25 °C to +60 °C
- Power supply: automatic switching 12 VAC or 5–24 VDC, 15 VA max; max power consumption 10 W; backup battery maintains clock during power loss
- Consumption: 5 mA standby, 100 mA max. load
- Switching relay: NO/NC contact, up to 30 V/1 A
- Can connect up to 16 Smart Output Modules for control of up to 128 independent relays
- Antenna can be extended up to 5 m for flexible installation
- Programmable switching time from 0.1 to 25 seconds, flip-flop or pulse modes
- Stores up to 8184 transponders; records up to 1024 recent events
- Supports standard data transmission protocols
Usage
When an authorized transponder is presented, the Smart Relais "Advanced" switches its NO/NC relay contact based on programmed duration or by toggle mode. It can operate a single output or be expanded to manage multiple access points, with immediate lost-transponder deactivation and detailed access event memory. An external antenna option enhances installation flexibility in challenging environments.
FAQ
-
How many relay outputs can the Smart Relais "Advanced" control?
It controls 1 relay by default, expandable to 128 independent relays using up to 16 Smart Output Modules. -
What power sources are compatible with this device?
It accepts 12 VAC or 5–24 VDC (automatic switching) and includes backup battery support for clock retention. -
Can the relay be activated for custom time intervals?
Yes, activation time is programmable between 0.1 and 25 seconds, with flip-flop and pulse modes. -
Is event tracking possible?
It memorizes the last 1024 access events and supports time zone/list-based access control programming. -
Is it possible to extend the antenna?
The product supports an external antenna extension up to 5 meters for installation flexibility.
