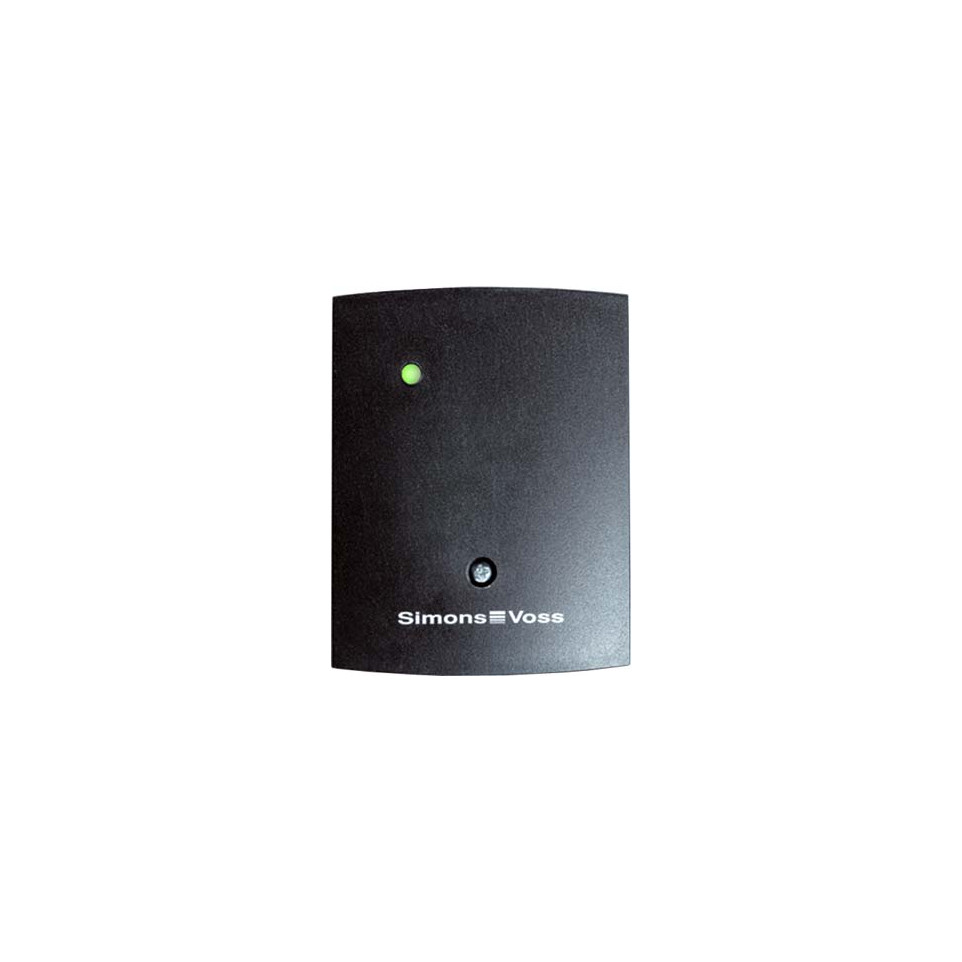

The Smart Relais with integrated antenna – PLUS version by SimonsVoss is a programmable relay module designed for secure, wireless access control in commercial and industrial environments. It combines versatile switching functions and robust access management for advanced building security systems.
Specifications
- Compact plastic housing: 71.8 x 55.4 x 25.1 mm
- Integrated antenna for wireless operation
- Automatic power supply switching: 12 Vac or 5–24 Vdc, 15 VA
- Power consumption: 5 mA at rest, up to 100 mA under load
- Changeover relay output: max. 30 V / 1 A
- Protection class: IP20
- Supports up to 8184 transponders; infinitely reprogrammable
- Programmable flip-flop or pulse mode (0.1 s to 25 s)
- Immediate deactivation of lost transponders via overlay mode
- Additional battery ensures clock maintenance during power interruptions
- Time zone management, passage lists, and memory for the last 1024 events
Usage
This relay activates when an authorized transponder is detected, toggling a switch contact for a programmable duration or between states with each valid signal. It is ideal for controlling doors, gates, or other secure passages and storing access events for audit trails.
FAQ
-
What power sources are compatible with the Smart Relais PLUS?
- It automatically accepts 12 Vac or 5–24 Vdc, drawing up to 15 VA.
-
How many transponders can be registered?
- Up to 8184 transponders can be authorized and managed simultaneously.
-
Can lost transponders be deactivated?
- Yes, lost transponders can be instantly disabled using overlay mode with a replacement device.
-
What distinguishes the PLUS version from the BASE version?
- The PLUS version includes an auxiliary battery for clock maintenance, time zone and passage management, and logging of the last 1024 events.
-
What is the relay’s output capacity?
- The changeover contact supports up to 30 V and 1 A, suitable for various electronic locking mechanisms and automation systems.
