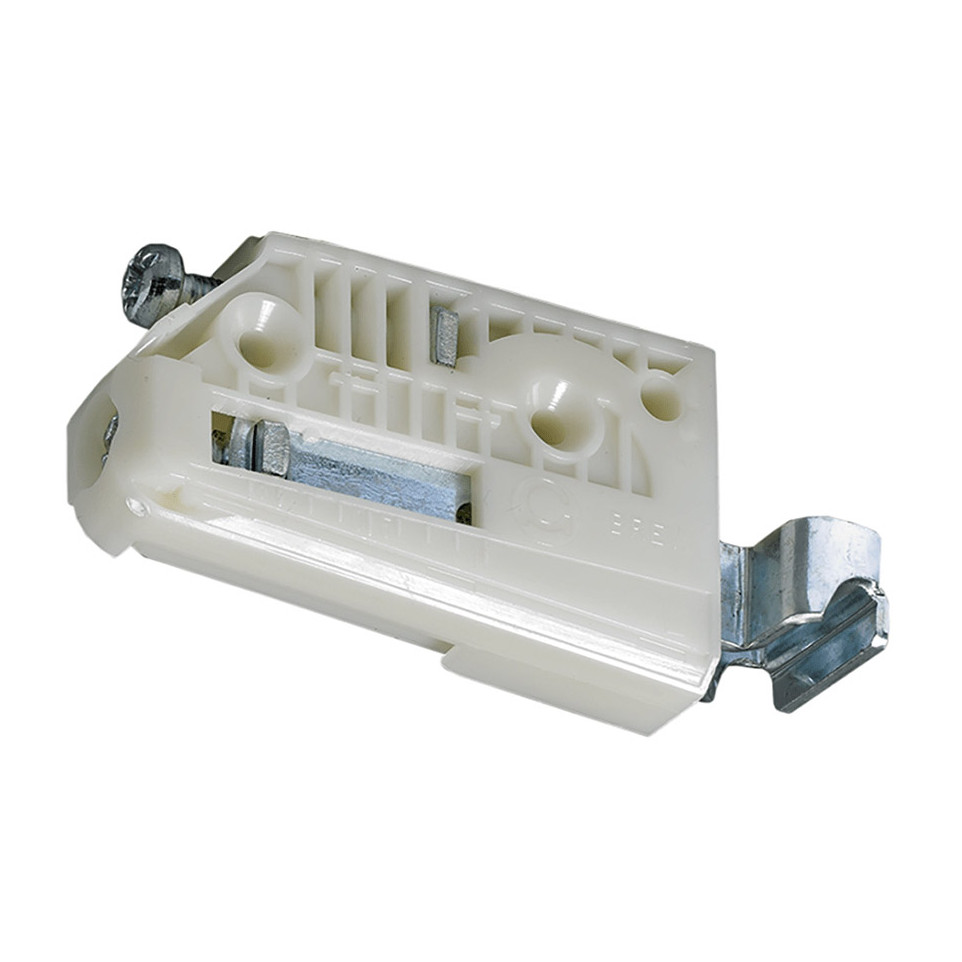

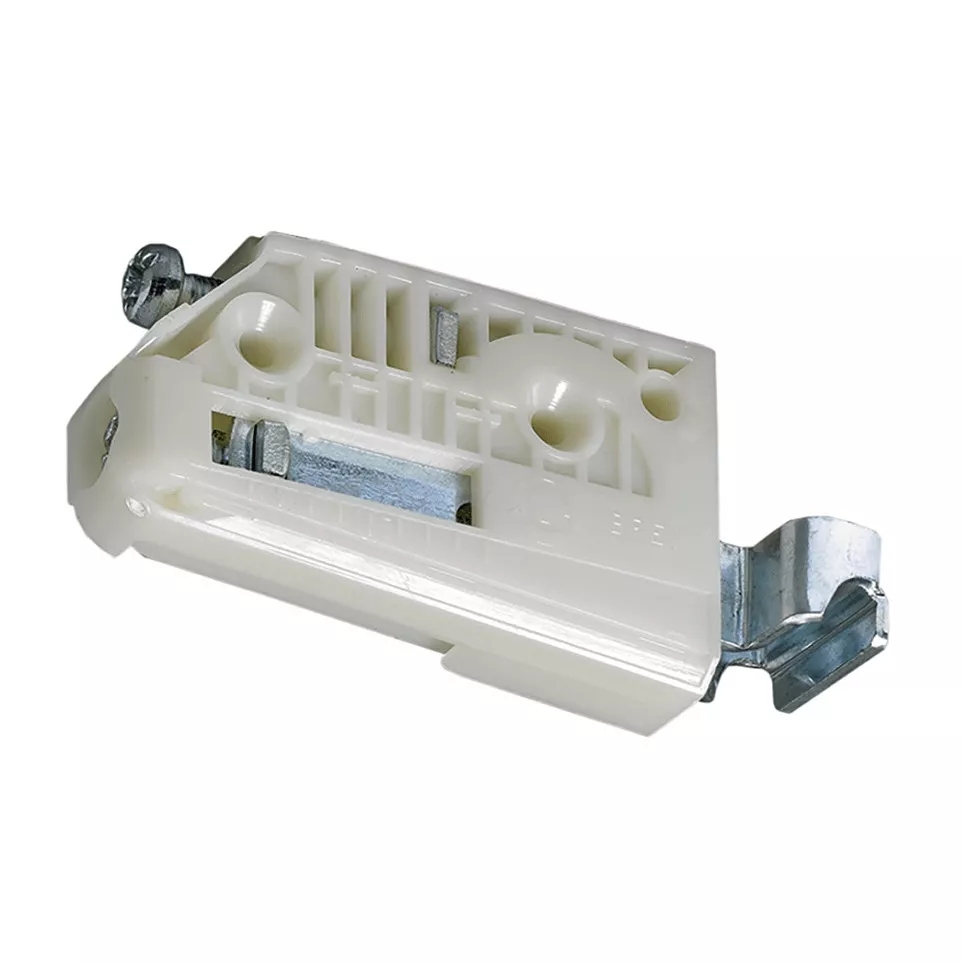

White Furniture Suspension Cover SAH 15 per piece
€0.46
In stock
Usage
The SAH 15 Hettich cabinet suspension bracket is designed for secure mounting of wall-hung furniture, such as kitchen cabinets and storage units, inside residential or commercial interiors. It supports adjustable alignment and reliable load distribution.
Advantages
- Enables safe wall-hanging of cabinets using either rail or hook suspension systems
- Three-dimensional adjustment for precise cabinet positioning: height (-2/+9 mm), depth (-2/+18 mm), lateral alignment (±6/7 mm)
- Side slip guard prevents accidental dislodgement when suspended from hooks
- Galvanized steel and white plastic construction for durability and corrosion resistance
- Satisfies up to a maximum load capacity of 30 kg per bracket according to EN15939 in test frame A; always consider wall quality and correct installation practices as recommended by the manufacturer
Specifications
- Design combines galvanized steel with white plastic components, suited for interior furniture applications; screw-on installation method compatible with type A, B, and L suspension rails or hooks
- Lifespan supported by robust materials; compliant with EN15939 standard testing in frame A conditions; suitable only under normal indoor climates and proper installation guidelines
- Bearing load capacity up to 30 kg per bracket (in accordance with EN15939); minimum rear panel recess required: at least 15 mm from front edge; lift-off safety height: 6 mm adjustment ranges—height (-2/+9 mm), depth (-2/+18 mm), side ±6/7 mm depending on suspension type
- Differentiating feature includes side slip protection mechanism for enhanced security when using hook suspensions; versatile compatibility across multiple rail types (A/B/L)
How it works
The SAH 15 Hettich is attached inside the cabinet body using screws. Once fixed, it allows the furniture unit to be hung securely onto either a pre-mounted rail or hook system. Post-installation adjustments enable precise leveling in three dimensions, ensuring optimal fit against the wall.
