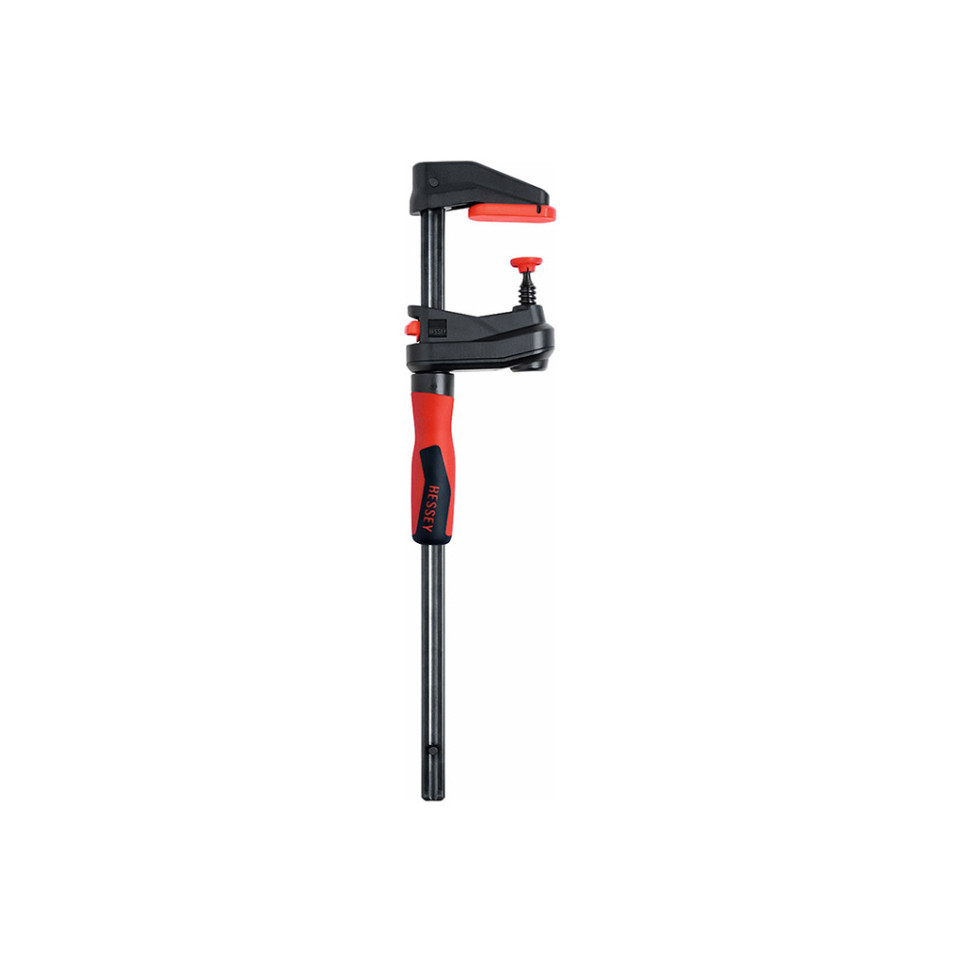

Bessey GearKlamp GK 600 per piece

Usage

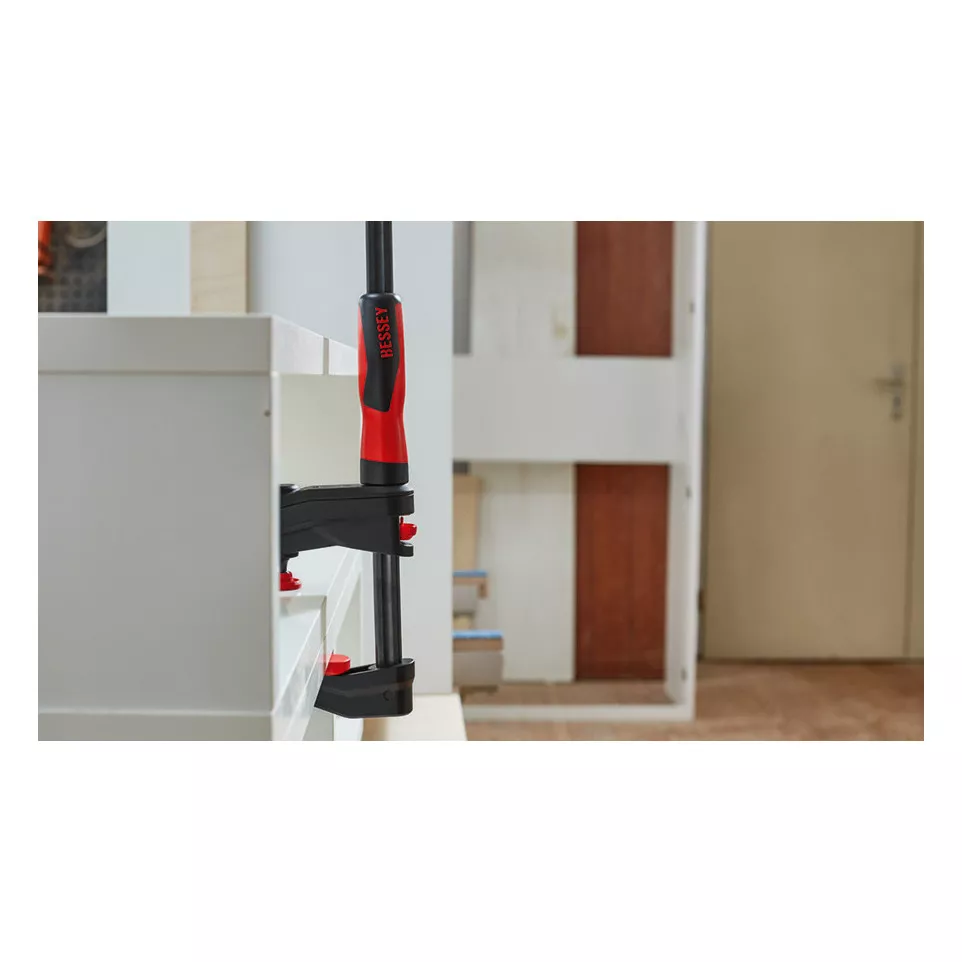

The Serre-joint à engrenage GearKlamp GK 600 is designed for securely clamping workpieces during woodworking, assembly, or interior construction tasks, even in restricted or tight spaces.

Advantages

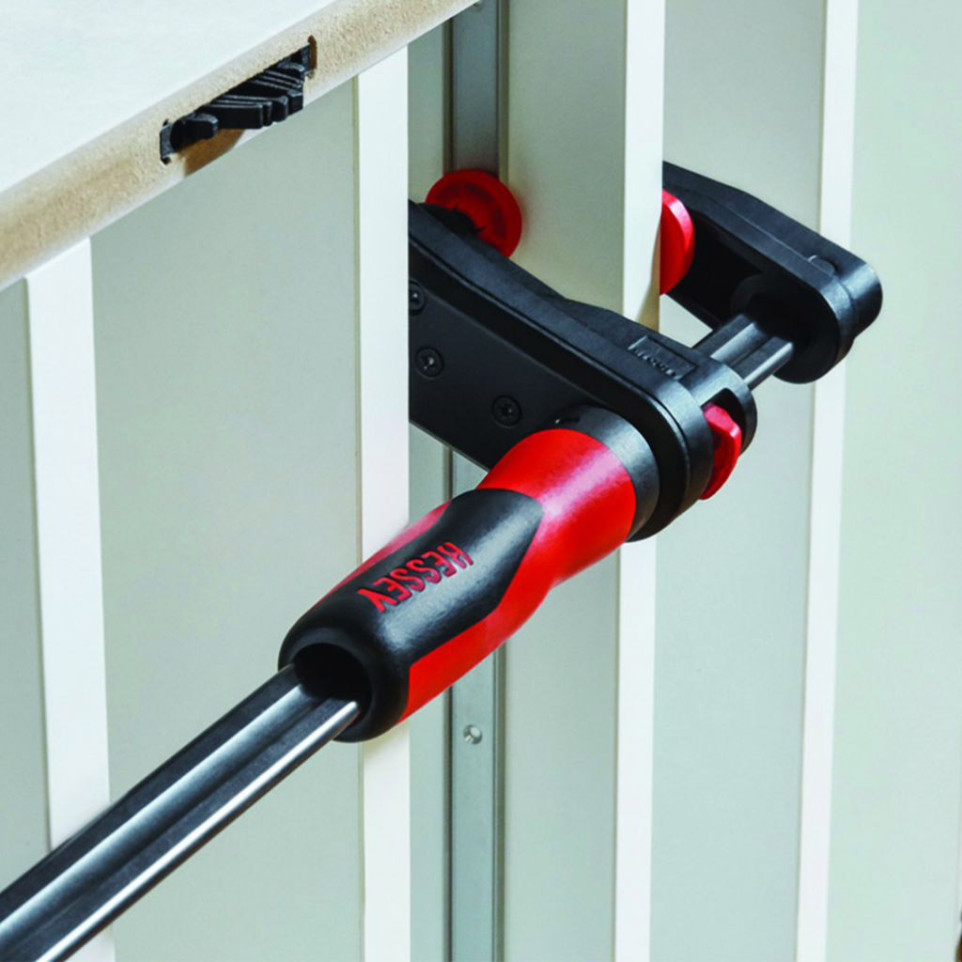

• Patented compact design enables use in confined areas where traditional clamps do not fit

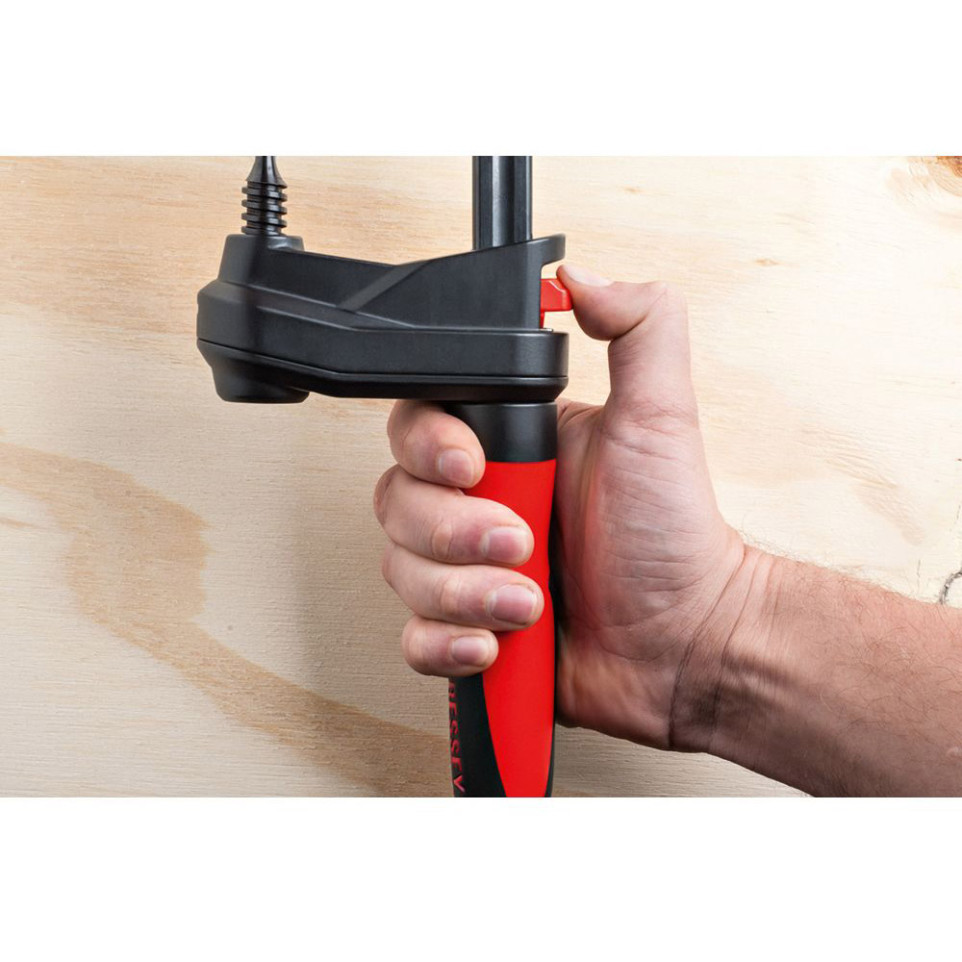

• The handle positioned around the rail allows ergonomic operation without hand strain
• Quick-release shift button offers fast adjustment and release of the sliding bar
• Swivelling pressure plate ensures precise alignment and secure hold on various shapes, including round and angular parts
• The driving mechanism is protected from dust by a plastic housing, enhancing durability over time

Specifications

• Constructed with reinforced PA6 polyamide for top and bottom sections; profiled rails are made from hardened, tempered steel with a burnished finish; trapezoidal thread spindle in rolled steel; two-component plastic handle for comfort and control
• Main parts are resistant to impacts and wear; internal gear mechanism is enclosed for protection against contaminants; conforms to high durability standards typical of professional clamping tools from BESSEY
• Opening capacity: 600 mm  •  Throat depth: 60 mm  •  Rail profile: 25 x 12 mm  •  Clamping force up to: 2,000 N  •  Approximate weight: 0.94 kg
• Clever V-grooves on the upper jaw improve grip on round or angled components while protective caps prevent surface damage during use

How it works

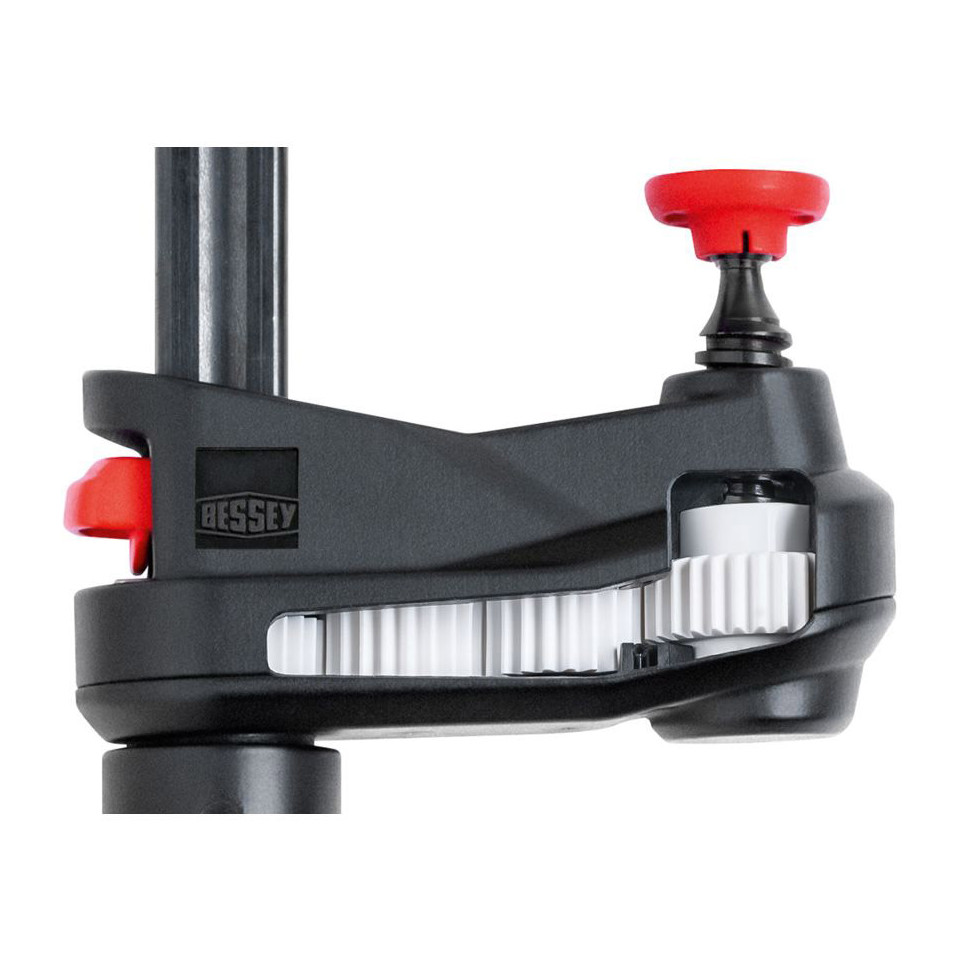

The GearKlamp GK uses an internal gear mechanism transferring force from the handle—positioned conveniently around the rail—to the jaw. Adjustments are made quickly using the quick-release button. The clamp secures objects by tightening its jaws via ergonomic rotation of its two-component handle.
