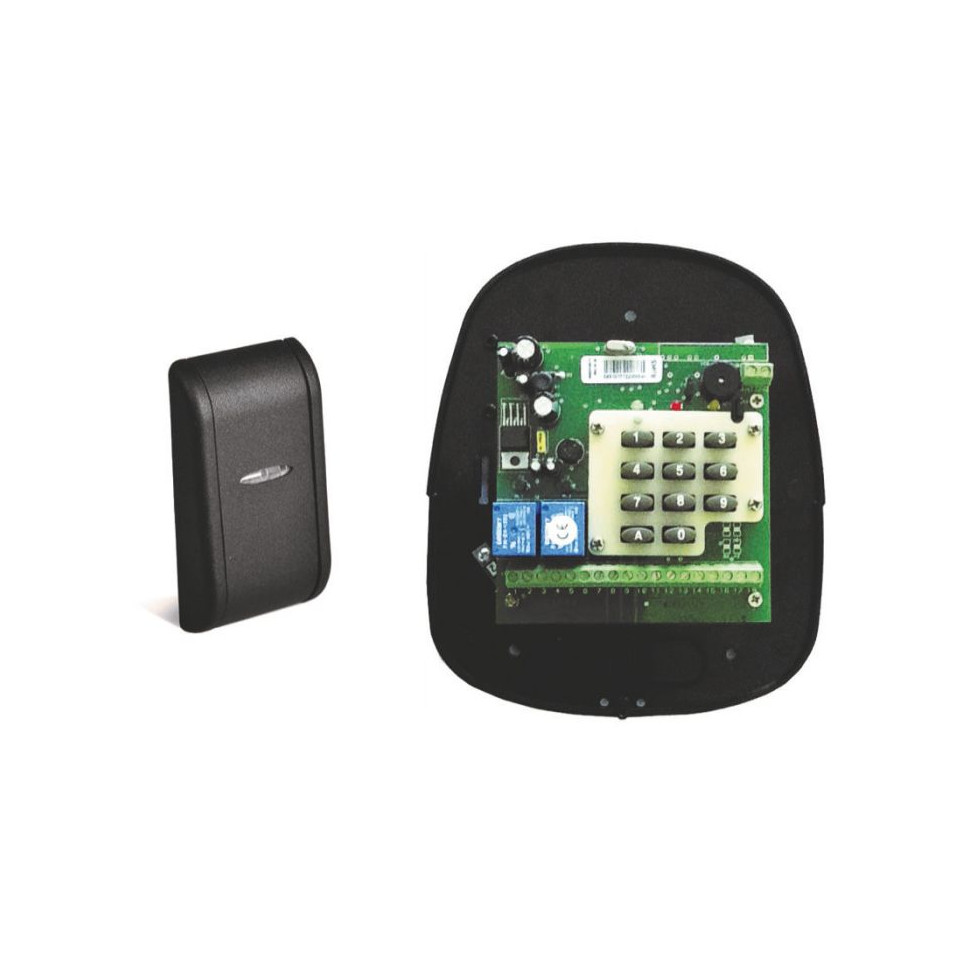

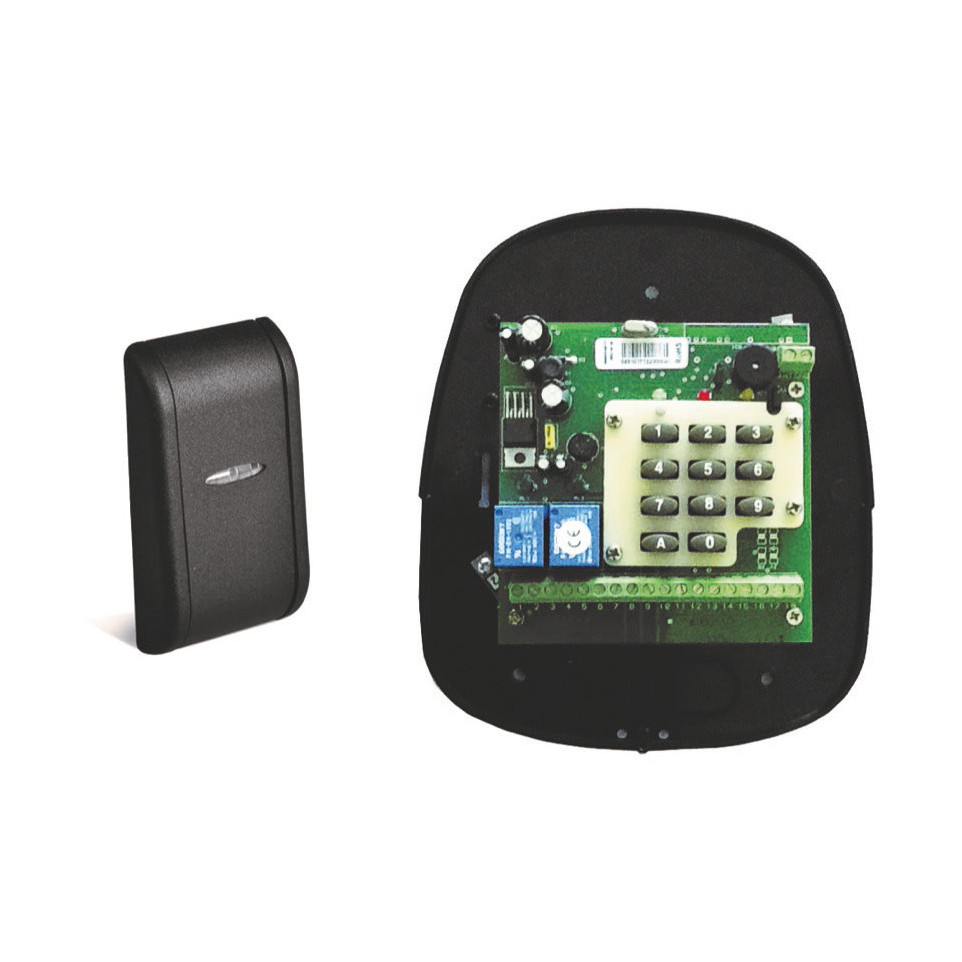

VMINI-C Proxy Reader with Remote Electronics Vinox-C per piece

Usage

The VMINI-C proxy reader with remote Vinox-C electronics is designed for secure access control, enabling users to unlock doors using compatible proximity cards or key fobs. Ideal for commercial or industrial environments requiring reliable entry management.

Advantages

• Compact peripheral reader suitable for space-constrained installations
• Supports up to 99 unique proximity cards or key fobs for flexible user management
• Compatible with CODIX, DATA/CLOCK, and Wiegand protocols, ensuring broad integration with standard control units
• Weather-resistant housing (IP67) allows both indoor and outdoor deployment
• No keypad required—eliminates the need to memorize codes; uses contactless badges instead

Specifications

• Design: Compact form factor; dimensions H 90 x W 50 x D 17 mm; weight: 136 g; remote Vinox-C electronics module included; proximity badge/card reader interface
• Durability: Rated IP67 for dust and water resistance; operating temperature from -15°C to +75°C; humidity tolerance from 0% to 95% (non-condensing)
• Performance: Power supply of 9–12 Vac/dc via bus connection; average consumption of only ~20 mA
• Differentiators: Reads ISO cards and proximity key fobs at distances up to approximately12 cm; operates exclusively when connected to a central unit supporting specified protocols [CODIX, DATA/CLOCK, Wiegand]; accommodates up to ninety-nine users simultaneously[1][2]

How it works

The VMINI-C detects authorized proximity badges or cards when presented within a reading range of up to twelve centimeters. The data is processed by the remote Vinox-C electronic module and communicated securely via supported protocols directly to the central access control unit.
