Vinox MINI-C Reader Without Remote Electronics per piece
€117.71
Product

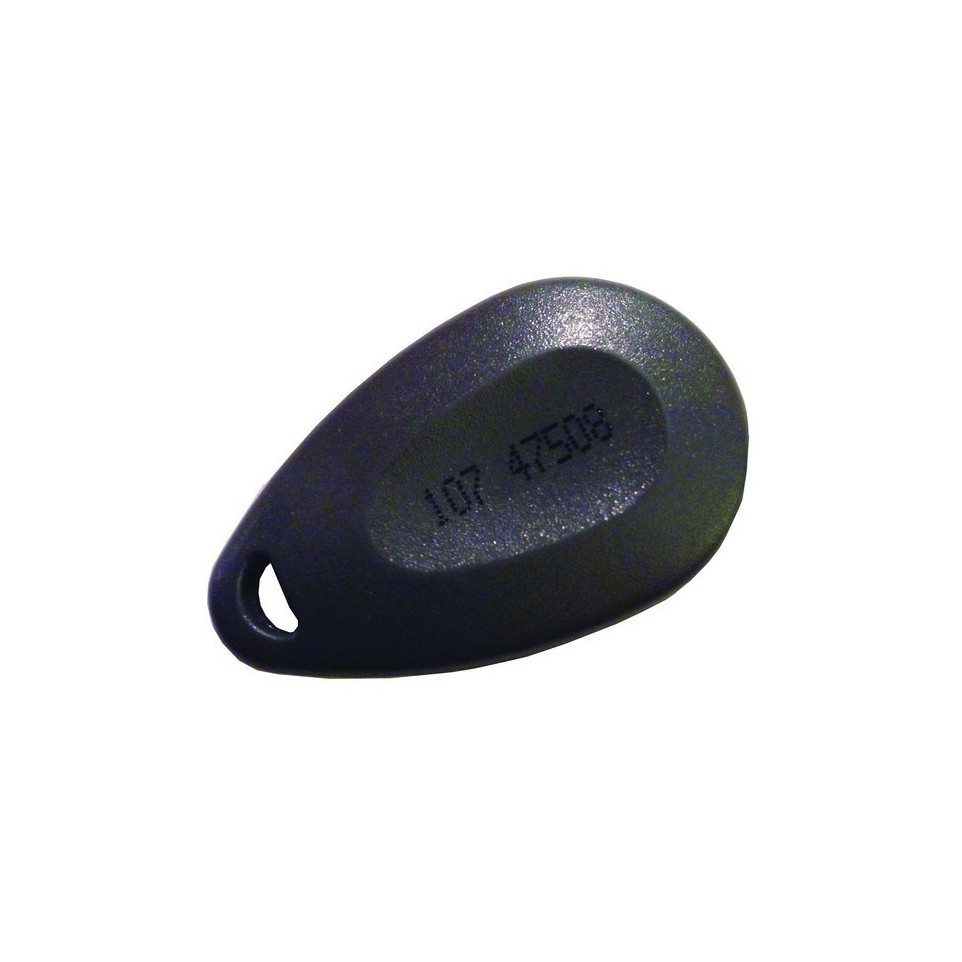

The black PBX1-E Vinox-C key fob badge is a compact proximity reader designed for use with centralized access control systems, supporting up to 99 key fob badges or ISO cards for secure identification.
Specifications
- Constructed with robust materials for indoor and outdoor use
- IP67 protection rating for dust and water resistance
- Compatible with CODIX, DATA / CLOCK, or WIEGAND protocols
- Powered by 9–12 Vac/dc via bus connection
- Operating temperature range: -15°C to +75°C
- Humidity tolerance: 0 to 95% non-condensing
- Average current: 20 mA
- Reading distance up to 12 cm
- Dimensions: 90 mm (height) x 50 mm (width) x 17 mm (depth)
- Weight: 136 g
Usage
This device reads proximity key fob badges or ISO cards and is installed as a peripheral for central control units. Users authenticate by presenting their badge within 12 cm, allowing contactless access without memorizing codes. Cards and key fobs must be ordered separately.
FAQ
-
What access protocols does the device support?
It is compatible with CODIX, DATA / CLOCK, or WIEGAND protocols. -
How many users can be registered?
Up to 99 cards or key fob badges can be registered. -
Is this reader suitable for outdoor installation?
Yes, its IP67 rating ensures protection against dust and water. -
What is the maximum reading distance?
Badges and cards can be read from a distance of up to 12 cm. -
Do badges or ISO cards come included?
No, badges and cards must be ordered separately.
