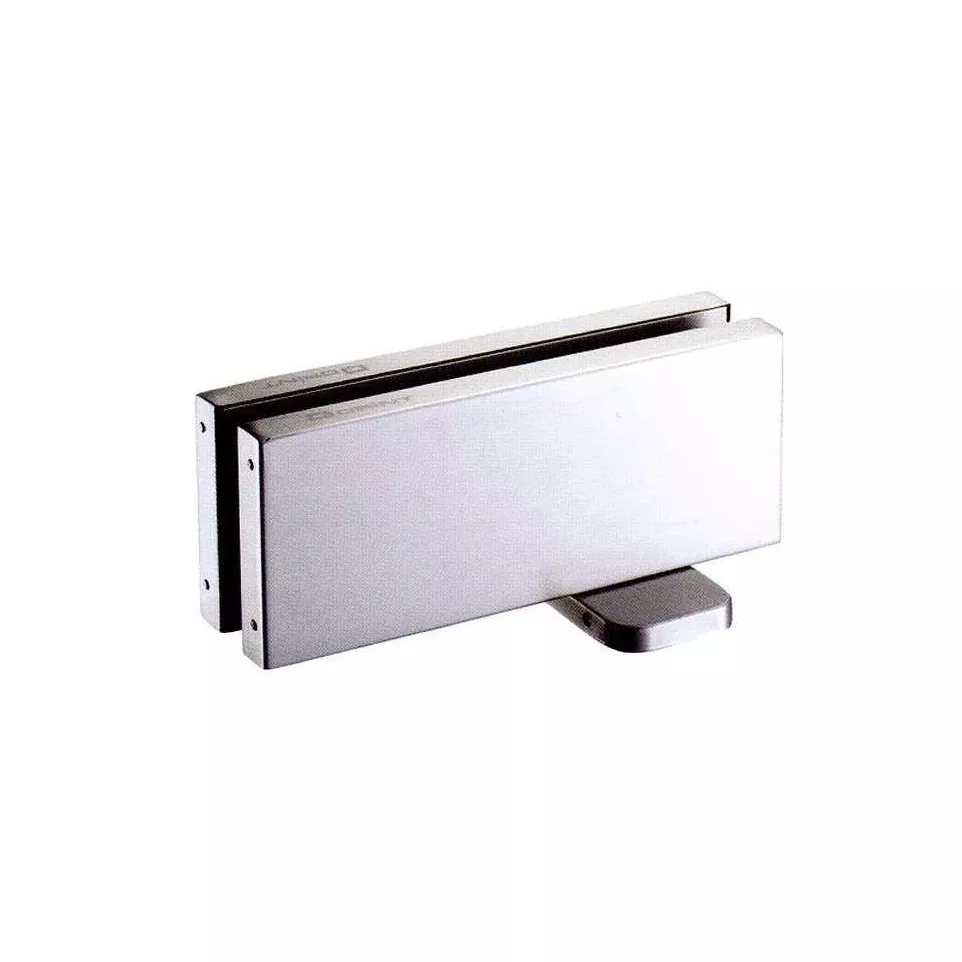

This hydraulic pivot hinge is designed for glass doors, offering controlled closing and a hold-open feature at 90°. Ideal for heavy or wide glass doors in commercial or public environments requiring reliable two-way operation.
The hydraulic cam mechanism controls the motion as the glass door pivots on its concealed lower hinge. The system allows smooth double-action movement with a secure hold-open at 90°, plus customizable return speed thanks to its adjustable hydraulic damper.
| Brand | Dorint |
|---|---|
| Finishing | argent |
| Product Dimensions | 80,5 x 197 x 42 mm |
| Firewall | non |
| Strength (selon EN1154) | EN 5 |
| Leaf width (mm) | 1250 |
| Max. weight of leaf (kg) | 150 Kg |
| Operation technology | à came |
| Type of opening function | double action |
