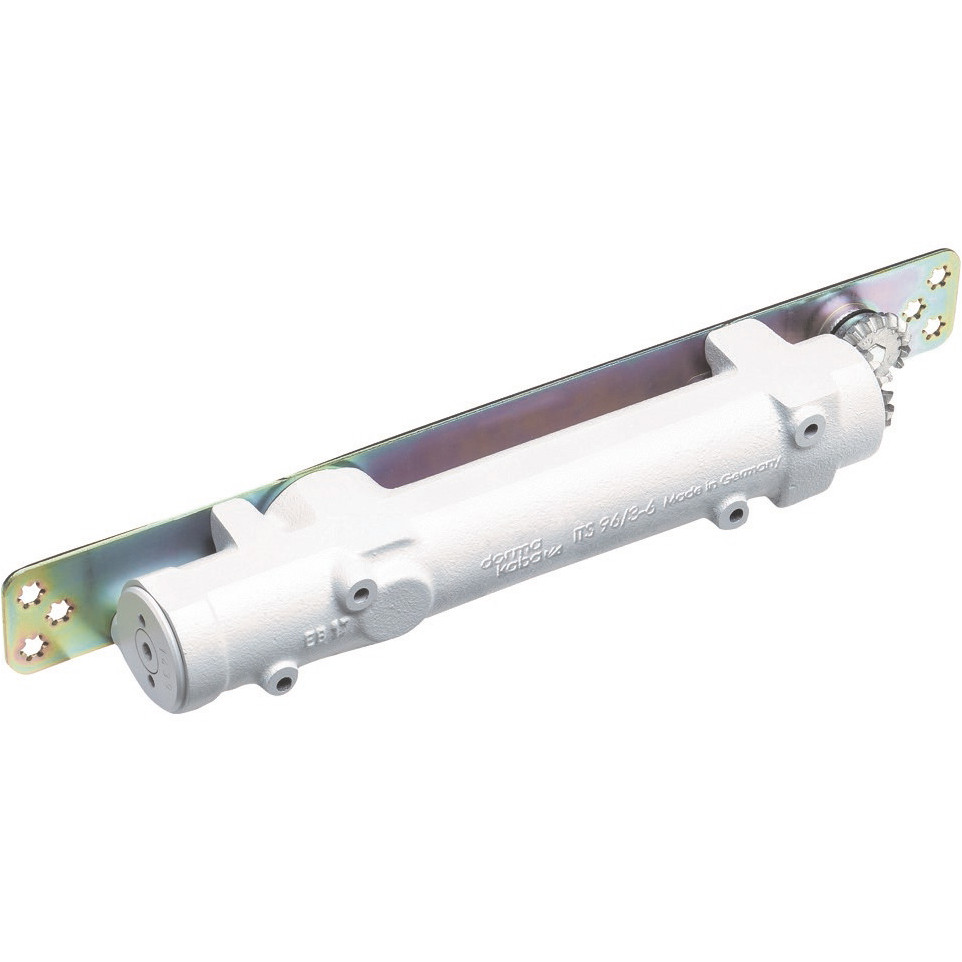

Dorma ITS 96 Concealed Door Closer for Leaf or Frame Installation Without Arm per piece

Dorma ITS 96 Concealed Door Closer...

Estimated delivery date :  Friday 24 July
€362.66 HT
In stock (5)

Ref : FGT-135456

Quantity

Add to your shopping List

You must be logged


Related Products

Description

Usage

The Dorma ITS 96 concealed door closer is designed for seamless integration into the door leaf or lintel, providing discrete and controlled closing for interior doors in commercial and architectural environments.

Advantages

  • Total concealment preserves the clean look of prestige doors and interiors
  • Adjustable closing force from EN 3 to EN 6 allows adaptation to varying door sizes and weights
  • Non-handed design enables use on both left- or right-hinged doors without modification
  • Cushioned limit stay reduces impact, protecting walls and hardware at a maximum opening angle of approximately 120°
  • Slight increase in installation complexity due to precise mortising requirements for concealed setup

Specifications

  • Concealed cam-action technology with compact closer body; suitable for installation in doors ≥40 mm thick, length: approx. 291 mm, width: approx. 39.5 mm, height: approx. 51 mm
  • Manufactured to meet EN1154 standards; CERTIFIRE approved for fire-resisting timber doors when used with appropriate intumescent seals; ISO9001 certified production process ensures consistent quality control
  • Variable closing force (EN size 3–6) covers door widths up to 1400 mm and weights up to 180 kg; adjustable speed and latching action via accessible valves
  • Cushioned mechanical limit stay integrated as standard feature; fully reversible non-handed mechanism allows flexible configuration after installation

How it works

The Dorma ITS 96 functions by utilizing a precision cam-action mechanism housed within the thickness of the door or frame. The concealed unit smoothly controls the swing and closure—speed, latching force, and final positioning are easily fine-tuned using adjustment screws after fitting.

See more

Product Details

Brand Dorma
Finishing argent
Product Dimensions 39,5 x 291 x 51 mm
With last stroke oui
Firewall oui
Strength (selon EN1154) EN 3-6
Leaf width (mm) 1400
Max. weight of leaf (kg) 180 Kg
For interior door oui
Operation technology à came en forme de coeur
For door ext. opening outwards. non
Opening brake non
Max. opening angle on hinges 120°
Late Close non
Max. opposite opening angle hinges 120°
Type of opening function simple action
Adjustable closing speed oui
FGT-135456
