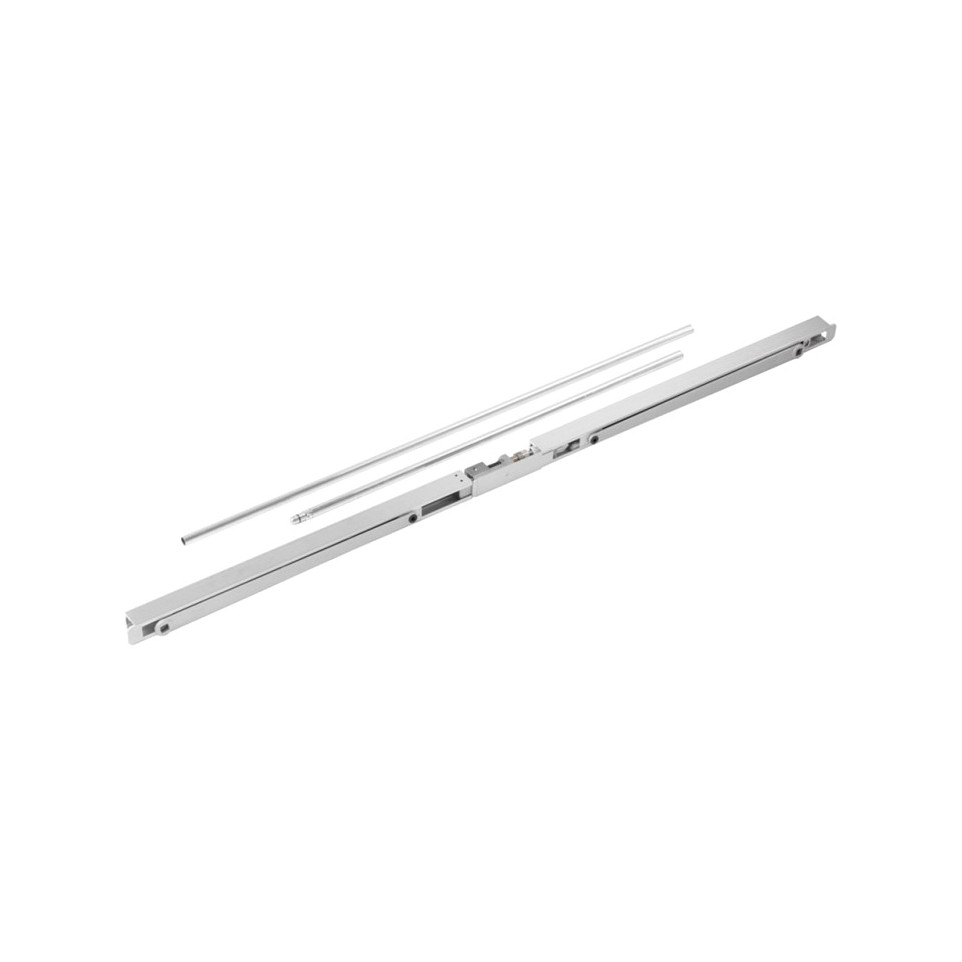

Dorma G96 GSR-EMF2 semi-fixed selector arm 540 to 700 mm per piece

Dorma G96 GSR-EMF2 semi-fixed...

Estimated delivery date :  Tuesday 4 August
€1,497.71 HT

Ref : FGT-135475

Quantity

Add to your shopping List

You must be logged


Related Products

Description

Usage

The Dorma G96 GSR-EMF2 semi-fixed selector arm is designed for concealed door closers, ensuring controlled and coordinated closing of double-leaf doors with a semi-fixed leaf width of 540 to 700 mm, in commercial or public buildings.

Advantages

  • Allows coordinated sequential closing of double doors to ensure reliable latch function[4][7].
  • Semi-fixed adjustment for precise installation on leaves between 540–700 mm wide[4].
  • Integrates invisibly within the door thickness, preserving aesthetics and security[4][7].
  • Compatible with fire-resistant doors; complies with EN 1154 standard for safety[4][9].
  • Reversible design supports both left- and right-hand doors without modifications[4][9].

Specifications

  • Design: Steel selector arm; suitable for integration within the leaf or lintel alongside ITS96 closers. Finish: silver anodized.
  • Certifications: Tested in accordance with EN1154:2003-04. Suitable for fire and smoke protection assemblies.
  • Main dimensions: Selector arm length adjustable from 540 to over 700 mm; minimum door thickness required is typically ≥40 mm (EN2–4) or ≥50 mm (EN3–6)[7][9]. Force class EN2–4 (for up to ~1100 mm wide leaf) or EN3–6 (for up to ~1400 mm wide leaf)[4]. Maximum opening angle approximately 120°. Door weight supported: up to 100 kg (EN 2–4); up to 180 kg (EN 3–6)[9]. Selector allows continuous force adjustment via top-accessible screw.
  • Differentiating features: Adjustable mechanical limit stay protects walls and hardware from impact during abnormal use. Closing speed remains stable regardless of temperature fluctuations, enhancing reliability.

How it works

The selector arm synchronizes the order in which double-leaf concealed doors close by holding one leaf partially open until the active leaf closes first. Adjustment screws enable installers to set precise coordination required by building regulations.

[1][4][7]
See more

Product Details

Brand Dorma
Finishing argent
Firewall oui
Type of opening function simple action
FGT-135475
