Usage

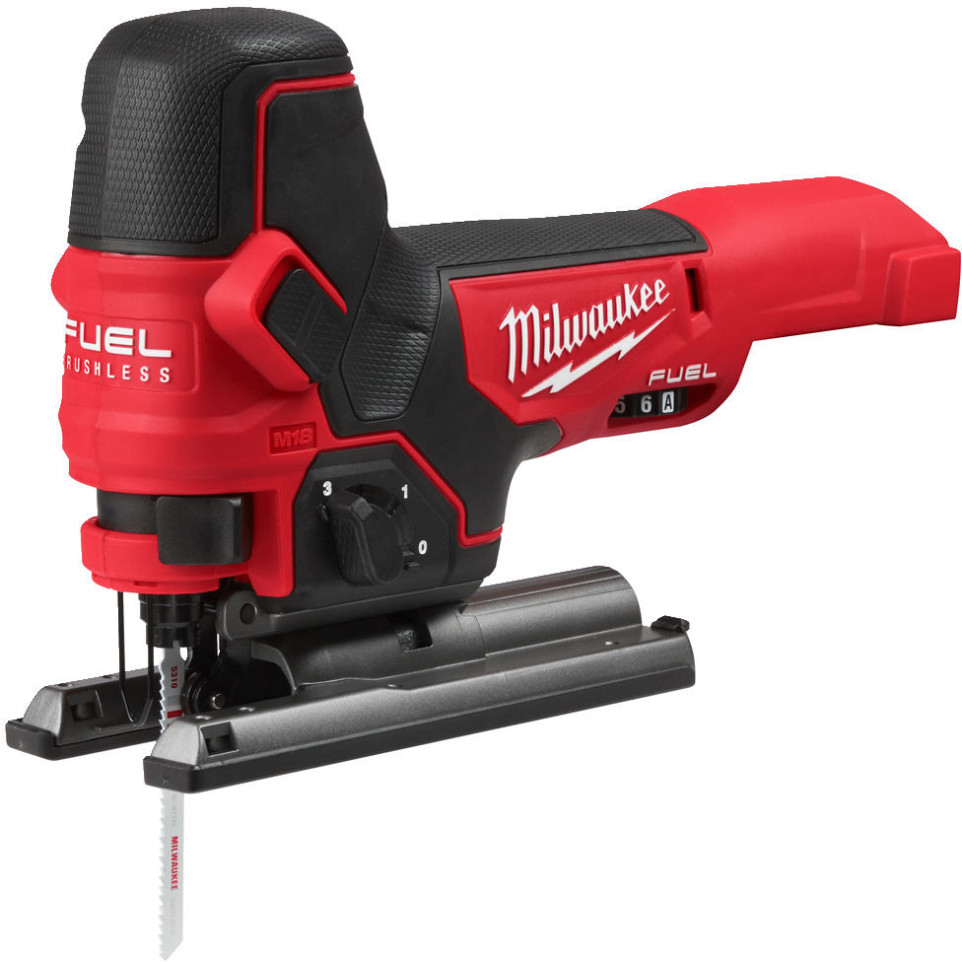

The Milwaukee M18 FBJS-0X 18V cordless jigsaw is designed for precision cutting of wood, metal, and plastics. Ideal for professional carpenters and installers working on-site or in workshops.
Advantages
- POWERSTATE™ brushless motor ensures high-speed cutting and extended tool life
- 5-stage pendulum action allows optimized performance across different materials
- PATENTED FIXTEC™ system enables fast, tool-free blade changes
- Adjustable speed dial with up to 3500 SPM provides precise control for clean cuts
- Bare tool format offers flexibility but requires separate purchase of batteries and charger
Specifications
- Robust design with a barrel grip handle; constructed from durable materials to withstand heavy use
- Complies with safety standards; features LED light and integrated dust blower for clear visibility while cutting
- No-load stroke rate: adjustable from 800 to 3500 strokes/minute; blade stroke length: 25 mm; maximum cutting depth: wood – up to 100 mm, steel – up to 10 mm, aluminum – up to 19 mm; bevel cut angles: preset at 0°, 15°, 30°, 45°; compatible with all MILWAUKEE® M18™ batteries (sold separately)
- Differentiating features include REDLINK PLUS™ overload protection electronics and a tool-free bevel adjustment mechanism with detents for quick angle settings
How it works
The user inserts an M18 battery pack (not included), selects the appropriate speed setting, attaches a T-shank jigsaw blade using the FIXTEC™ system, then guides the saw smoothly along the intended cut line using variable speed control and pendulum action settings suited to each material.
