Dorma Contur Slide Arm for TS 91-92-93 Silver per piece
€42.54
In stock
Usage

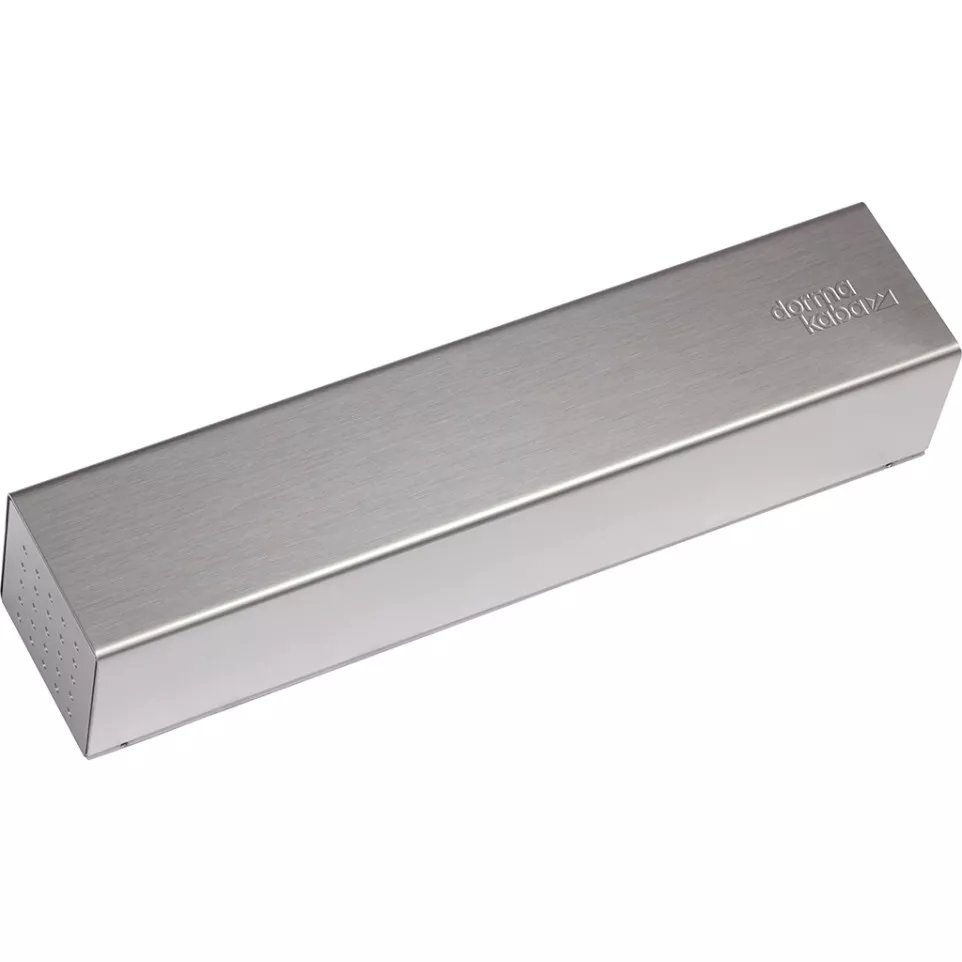

The Dorma TS 93 G Contur EN 2-5 door closer is designed for smooth and controlled closing of swing doors in commercial and institutional buildings. Suitable for internal doors, it provides adjustable closing force for various door sizes.
Advantages
- Fully adjustable closing force from EN 2 to EN 5 covers a wide range of door weights and widths.
- Sophisticated cam-action technology ensures low opening resistance, enhancing accessibility.
- Reliable hydraulic control maintains consistent closing speed independent of temperature fluctuations.
- Slimline, modern design in an attractive silver finish integrates seamlessly with contemporary interiors.
- No arm included allows flexible selection or replacement based on specific installation needs.
Specifications
- Surface-mounted body with contoured aluminum construction; finished in silver (approximate dimensions: width: ~265 mm).
- Certified to EN 1154 standards for performance and durability; suitable for up to one million cycles in demanding environments[1][5].
- Power size adjustable from EN 2–5 supports door leaf widths between approximately 850 mm and 1250 mm, handling weights between ~40 kg and ~100 kg[1][5].
- Twin-valve system enables separate regulation of sweep speed and final latch action. Equipped with backcheck function to cushion excessive opening force.[1]
How it works
This surface-mounted closer attaches overhead on the door or frame. As the door opens, the cam-action mechanism compresses an internal spring; when released, hydraulic fluid controls the return motion allowing smooth, silent closure with customizable speed settings.[1][5]
