GEZE TS 4000 E Door Closer Body Without Arm Silver (Standard Mounting) / pc
€1,169.89
Product

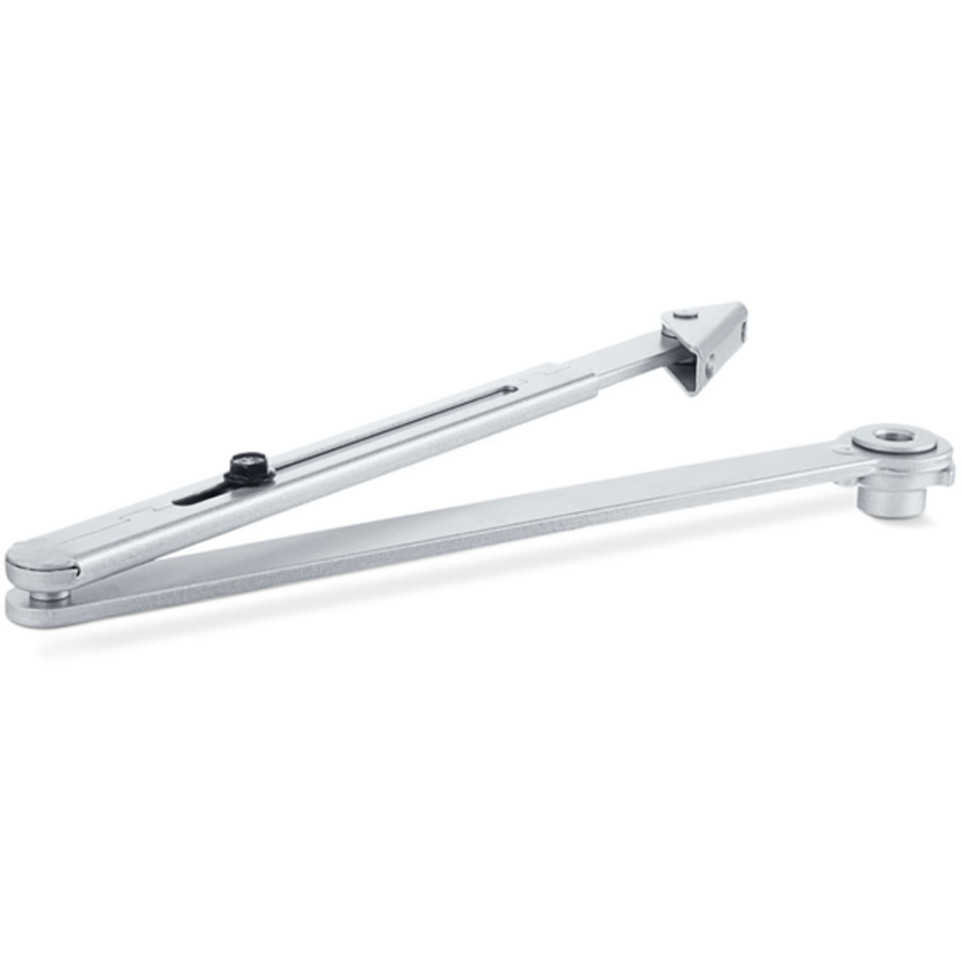

The Geze TS 4000 EFS Freeswing is an overhead door closer with an integrated electro-hydraulic hold-open feature and freeswing arm. Designed for single-action doors up to 1400 mm wide, it enables barrier-free passage in settings like hospitals, care homes, and nurseries.
Specifications
- Silver-finish surface-mounted rack and pinion closer
- Integrated electro-hydraulic hold-open and freeswing function
- Adjustable closing force EN 1–6 (stepless), front screw with visual indicator
- Fire and smoke protection certification to EN 1154, EN 1155, BS EN 1154, and CE marked
- For door widths up to 1400 mm, weight up to 120 kg
- Operates at 24 V DC, 50 mA; IP43 rated
- Max opening angle: 180°, freeswing area: 80°–175°
- Mechanical latching action just before closing
- Installation: Right/left, door leaf or transom, with or without junction box
- Dims: 325 mm x 60 mm x 48 mm
Usage
After initial opening, the freeswing function allows the door to move freely, eliminating resistance in both directions—ideal for high-traffic or accessible environments. In a fire alarm event, the electromagnetic hold-open is released, ensuring the door closes securely to maintain fire safety.
FAQ
-
Is the TS 4000 EFS suitable for fire doors?
Yes, it meets fire and smoke protection standards and automatically closes when the alarm sounds. -
Can it be installed on both right and left-hand doors?
Yes, it is universal and does not require conversion for door handing. -
What is the maximum door width and weight?
It is rated for single leaf doors up to 1400 mm wide and 120 kg. -
How is the closing force adjusted?
The closing force is continuously adjustable via a front screw with an optical display. -
What power supply is needed for the freeswing function?
The unit operates on 24 V DC.
