GEZE Compas Arm for TS 2000-4000 Silver / pc
€21.86
In stock
Usage

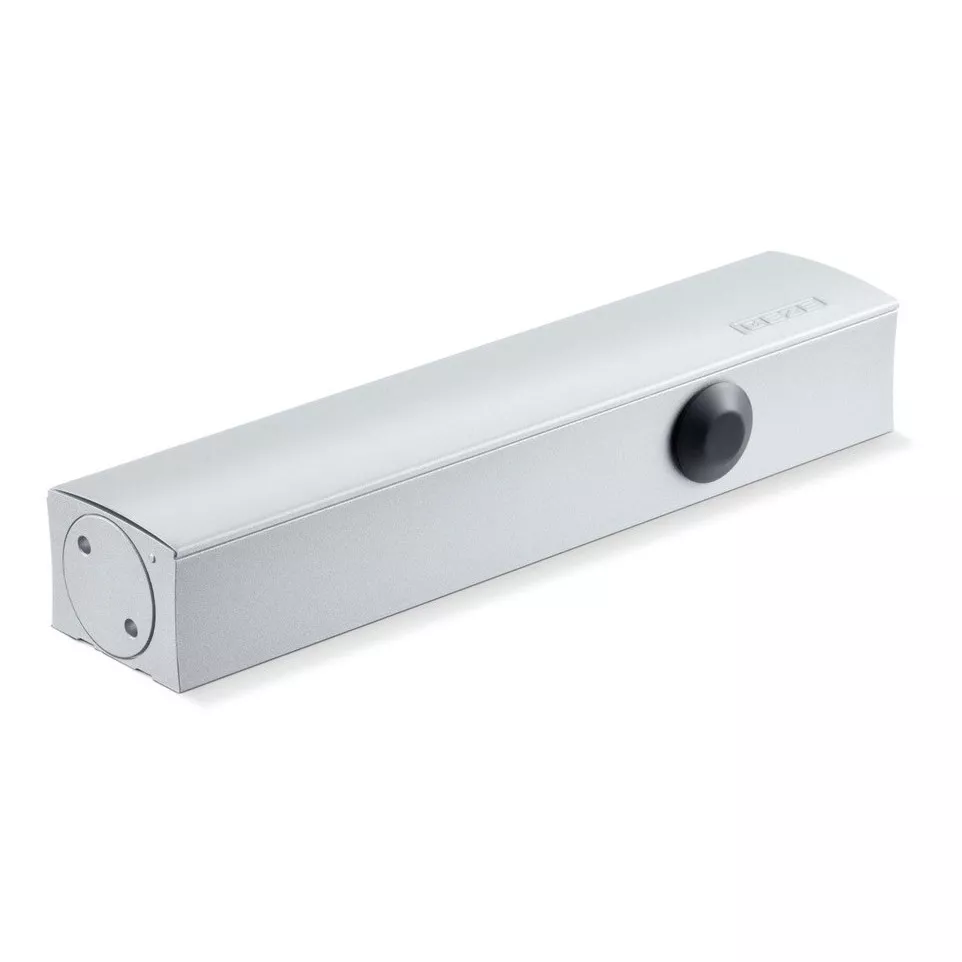

The Geze TS 4000 S door closer is designed for controlled, adjustable closing of single-leaf interior or exterior doors up to 1400 mm wide, including fire and smoke protection doors in commercial and public buildings.
Advantages
- Variable closing force adjustment from EN 2 to EN 6 for wide-ranging door sizes and weights
- Suitable for both right- and left-hand doors without the need for conversion
- Integrated delayed closing function supports safe passage through busy doorways
- Hydraulic latching action ensures secure final closure of the door leaf
- Adjustable back check prevents damage from forceful opening; no hold-open feature on fire-rated installations (minor drawback)
Specifications
- Slim overhead design in silver finish; robust construction with corrosion-resistant components suitable for demanding environments [1][3][7]
- Carries certifications: EN1154, CE marked, Certifire approved CF252; tested up to a two-hour fire rating on timber doors and four hours on steel [3][7]
- Covers single-action doors up to max. width of 1400 mm and weight up to approx.120 kg (EN1–6) [3][5]; dimensions: length: ~287 mm, height: ~60 mm, depth: ~46 mm [3]
- User-adjustable features include step-less closing force setting, precise valve-regulated speed control, integrated back check and delayed action (80°–120°), plus a visual indicator for correct setup [1][9]
How it works
The Geze TS 4000 S is mounted overhead with a link arm onto the door leaf. Closing force, speed, back check, delay function and latching are adjusted from the front panel so that every use delivers reliable automatic closure tailored precisely to your building’s requirements.
