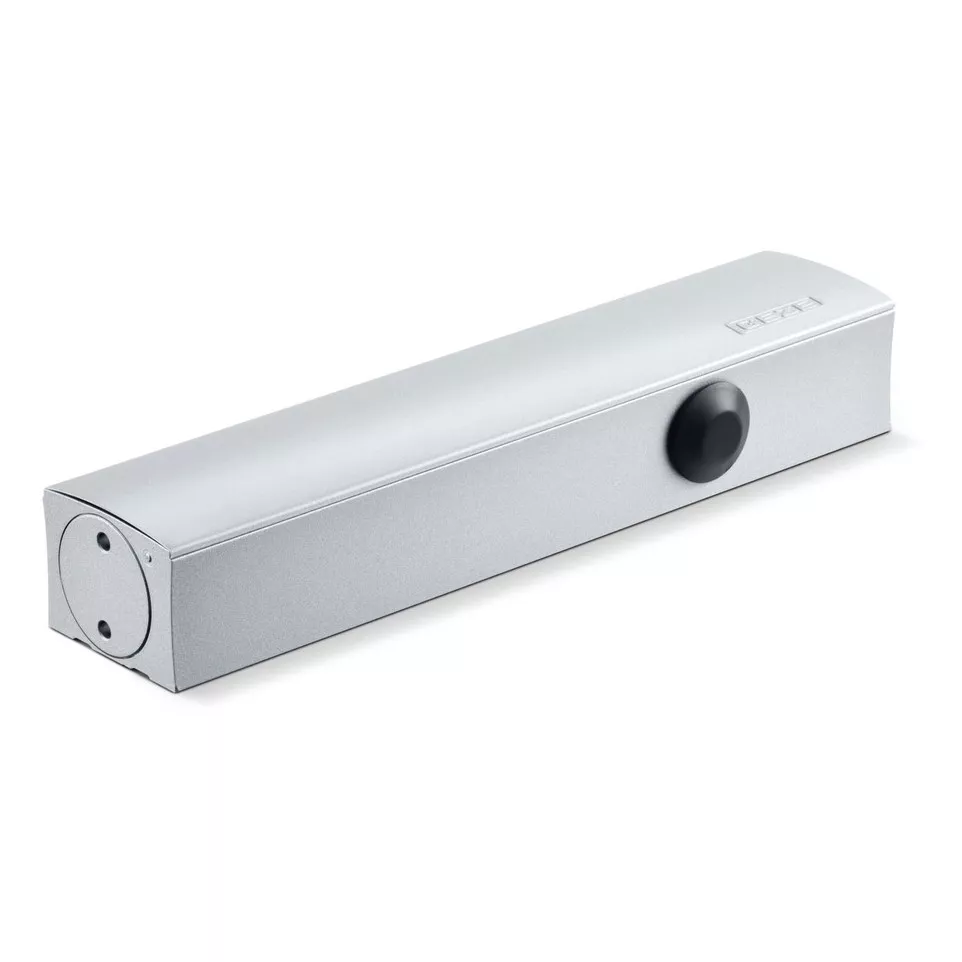

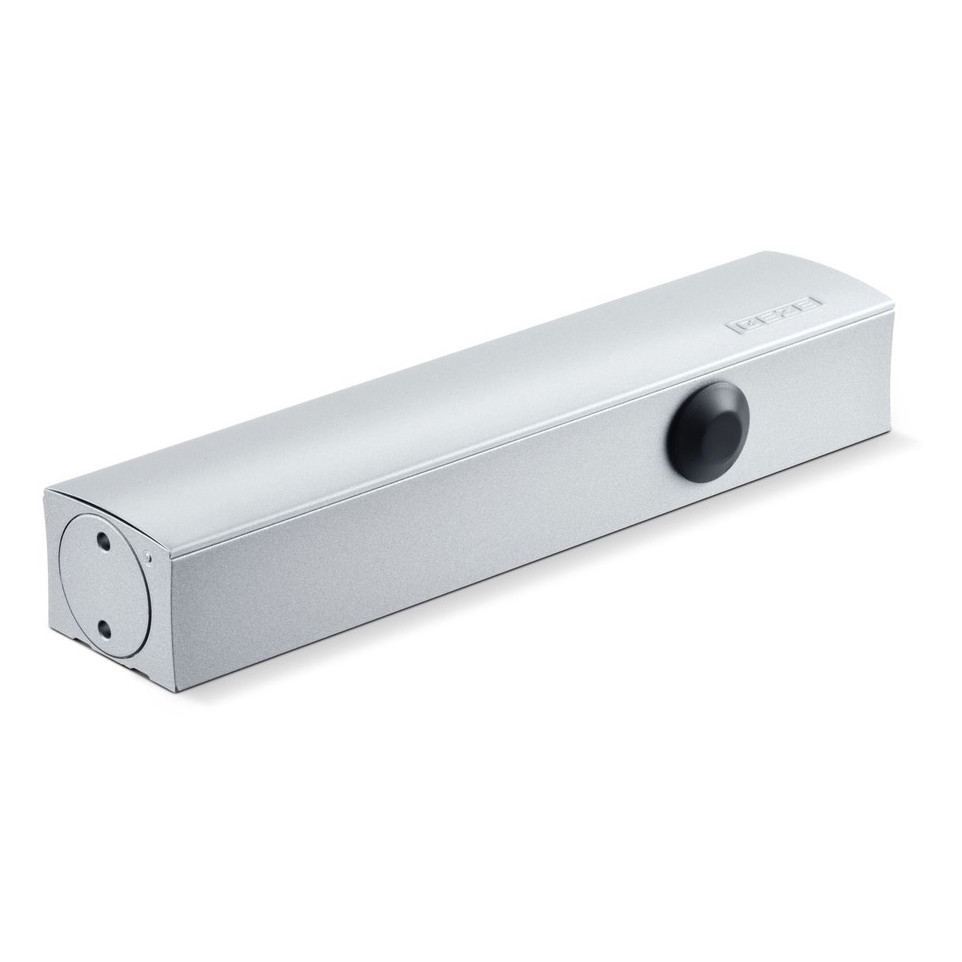

Geze TS 5000 ECline Door Closer Without Arm Silver per piece

Geze TS 5000 ECline Door Closer...

Estimated delivery date :  Tuesday 9 June
€255.60 HT
In stock (2)

Ref : FGT-136264

Quantity

Add to your shopping List

You must be logged


Related Products

Description

Usage

The Geze TS 5000 ECline door closer is designed for barrier-free closing of single-leaf doors in commercial or public buildings. Suitable for doors up to 1250 mm in width, it enhances accessibility while ensuring reliable closure on fire and smoke protection doors.

Advantages

  • Variable adjustable closing force (EN3-5) allows precise adaptation to various door weights and sizes.
  • Barrier-free operation complies with DIN 18040 standards up to EN5 (doors up to 1250 mm wide).
  • Integrated opening assistance supports easy opening and comfortable door passage.
  • All adjustments accessible from the front, reducing installation time and simplifying maintenance.
  • Latching action and back check features prevent slamming and damage, enhancing safety for daily use.

Specifications

  • Sleek overhead design with a guide rail; compatible with right- or left-hand single-action doors without conversion.
    Material: Robust metal construction finished in silver (argent).
  • Certified for barrier-free access (DIN 18040) up to EN5; suitable for installation on fire and smoke protection doors according to EN 1154.
  • Covers door widths up to max. 1250 mm; variable closing force (EN3–EN5); adjustable closing speed, latching action, back check all via front-accessible valves.
    Visual display shows current closing force setting for accurate adjustment.[1][7]
  • Differentiators: Switchable opening support adapts easily if wind load or pressure differences are present. Can be installed on hinge side or opposite hinge side of the leaf.[1][7]

How it works

The TS 5000 ECline uses hydraulic technology combined with an integrated guide rail system. After manual or automated opening, the closer smoothly controls the return movement of the door leaf—ensuring controlled closure speed, active damping against sudden movements, and safe final latching every time.[1][7]

See more

Product Details

Brand Geze
Finishing argent
Product Dimensions 60 x 287 x 47 mm
With last stroke oui
Firewall oui
Strength (selon EN1154) EN 3-5
Leaf width (mm) 1250
Max. weight of leaf (kg) 100 Kg
For interior door oui
Operation technology à pignon et crémaillère
For door ext. opening outwards. non
Opening brake oui
Max. opening angle on hinges 180°
Late Close non
Type of opening function simple action
Adjustable closing speed oui
