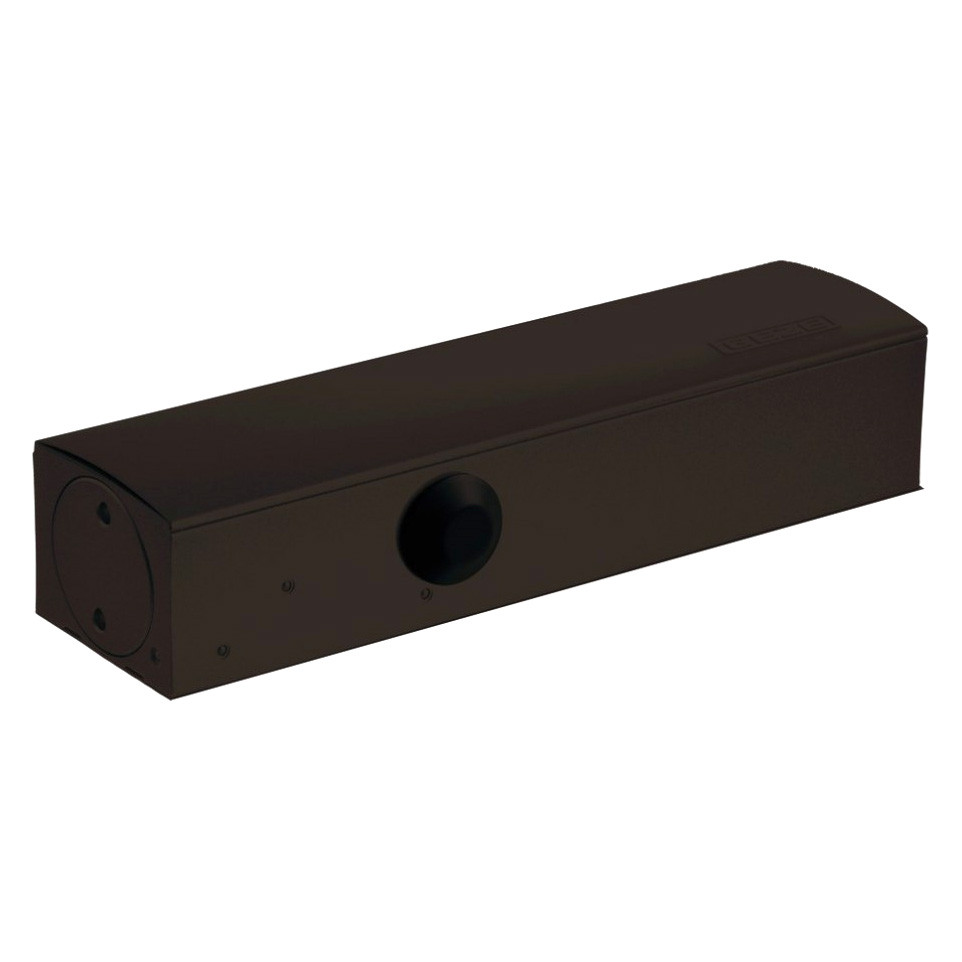

GEZE TS 3000 V Overhead Door Closer Without Arm Brown / pc

GEZE TS 3000 V Overhead Door Closer Without Arm Brown / pc
GEZE TS 3000 V Overhead Door Closer Without Arm Brown / pc
GEZE TS 3000 V Overhead Door Closer...
GEZE TS 3000 V Overhead Door Closer...

Estimated delivery date :  Friday 24 July
€127.42 HT
In stock (1)

Ref : FGT-136251

Quantity

Add to your shopping List

You must be logged


Related Products

Description

Product

The Geze TS 3000 V is an overhead door closer designed for single-action doors with a maximum leaf width of 1100 mm, suitable for both interior and exterior use. It provides reliable door control in commercial and residential settings.

Specifications

  • Body crafted from die-cast aluminum for durability and corrosion resistance
  • Elliptical rack and pinion mechanism ensures smooth operation
  • Adjustable closing force (EN 1154 size 2–4) via a lateral hex screw
  • Concealed fixing and adjustment screws with a slightly domed faceplate for a clean appearance
  • Fully adjustable closing speed and final latching action
  • Complies with classification 4 8 1/4 1 1 4 under EN 1154:1996 + A1:2002

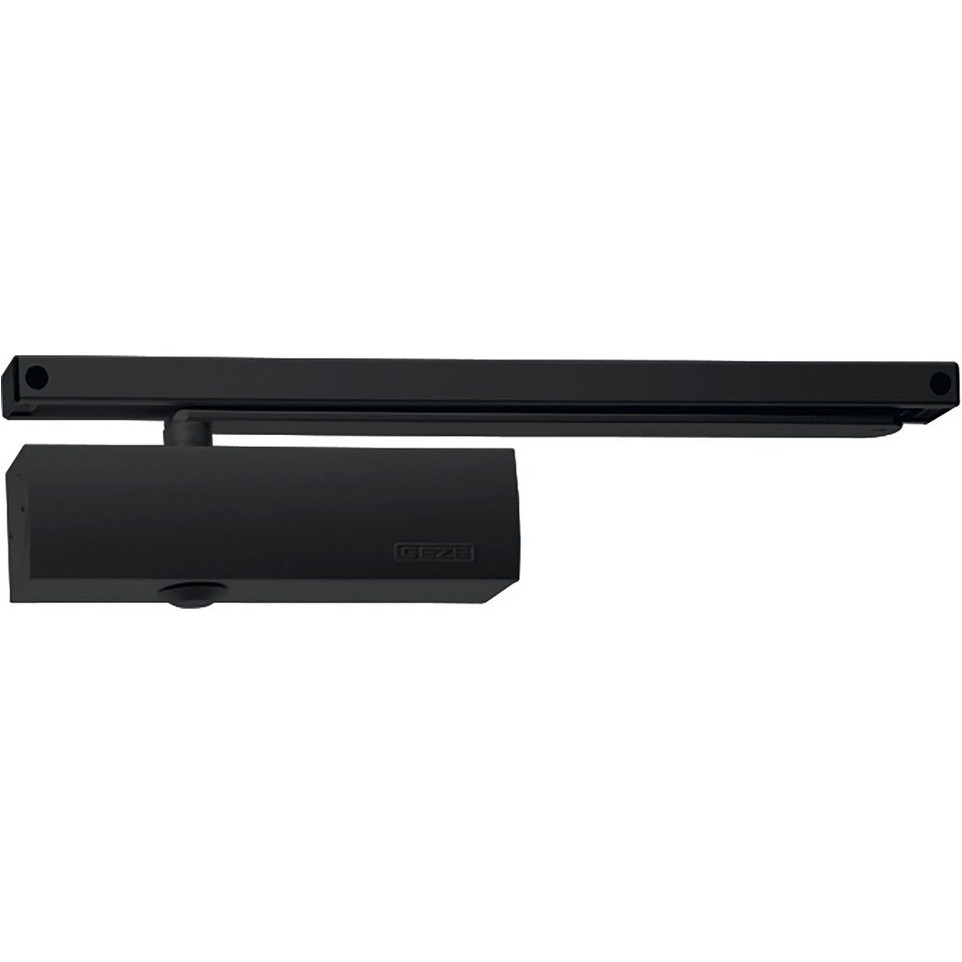

  • Compatible with slide arm operation (arm not included)
  • Can be mounted directly on the door or, inverted, on the door frame
  • Optional matching-color mounting plate available by special order
  • Suitable for left and right swinging doors, fire and smoke doors when mounted with appropriate accessories

Usage

Install the TS 3000 V overhead on the door or frame, with simple adjustment of the closing force, speed, and latching via accessible screws. The unit is intended for doors up to 1100 mm wide, enabling controlled and secure door closure in public and private buildings.

FAQ

  1. Is the Geze TS 3000 V suitable for fire doors?
    Yes, it is approved for use on fire and smoke doors if mounted with a compatible mounting plate.

  2. How is the closing force adjusted?
    The closing force is set using a lateral hex screw, allowing adaptation to various door weights and sizes.

  3. Can it be installed on both left- and right-handed doors?
    Yes, installation is possible on both left and right single-leaf doors without adjustment.

  4. What is the maximum door width supported?
    The closer supports single doors with a maximum width of 1100 mm.

  5. Are special mounting accessories required?
    For door frame (inverted) or fire-rated door installations, a specific mounting plate is recommended and available by special order.

mvm-dt-2025-07-07

See more

Product Details

Brand Geze
Finishing brun
Product Dimensions 60 x 226 x 46 mm
With last stroke oui
Firewall oui
Strength (selon EN1154) EN 2-4
Leaf width (mm) 1100
Max. weight of leaf (kg) 100 Kg
For interior door oui
Operation technology à pignon et crémaillère
For door ext. opening outwards. non
Opening brake non
Max. opening angle on hinges 180°
Late Close non
Type of opening function simple action
Adjustable closing speed non
FGT-136251
