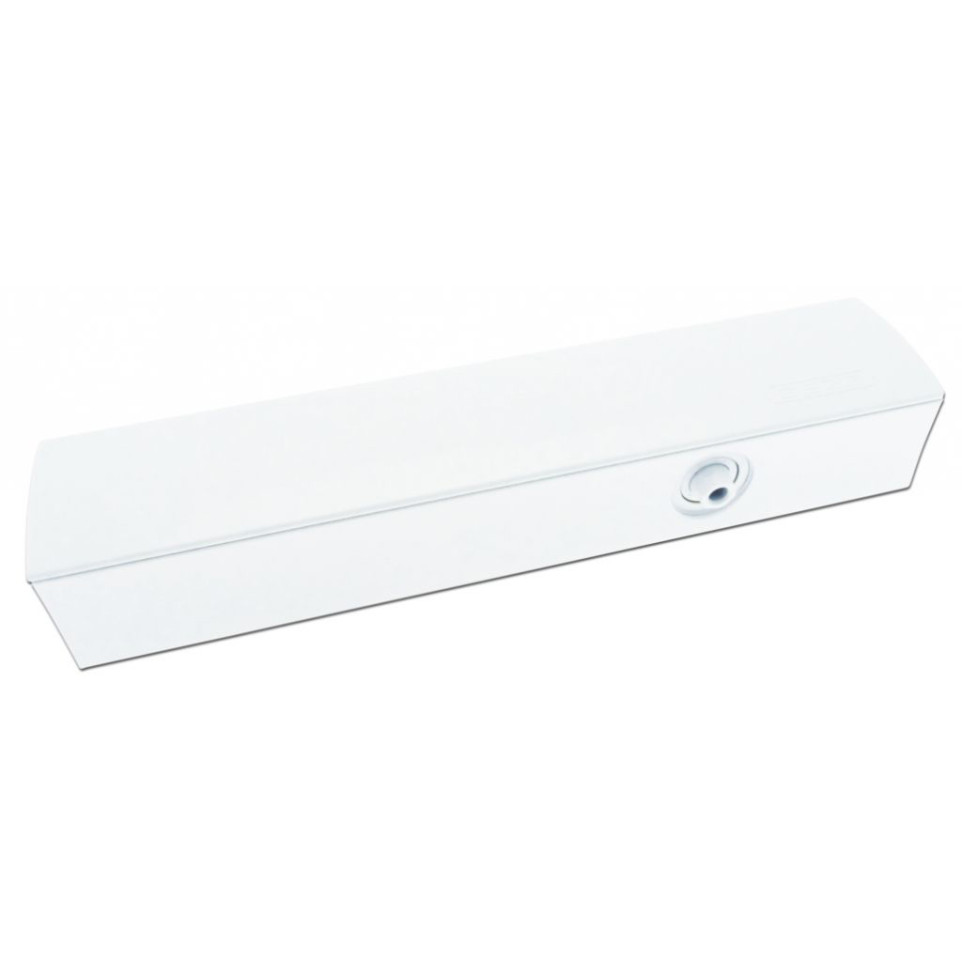

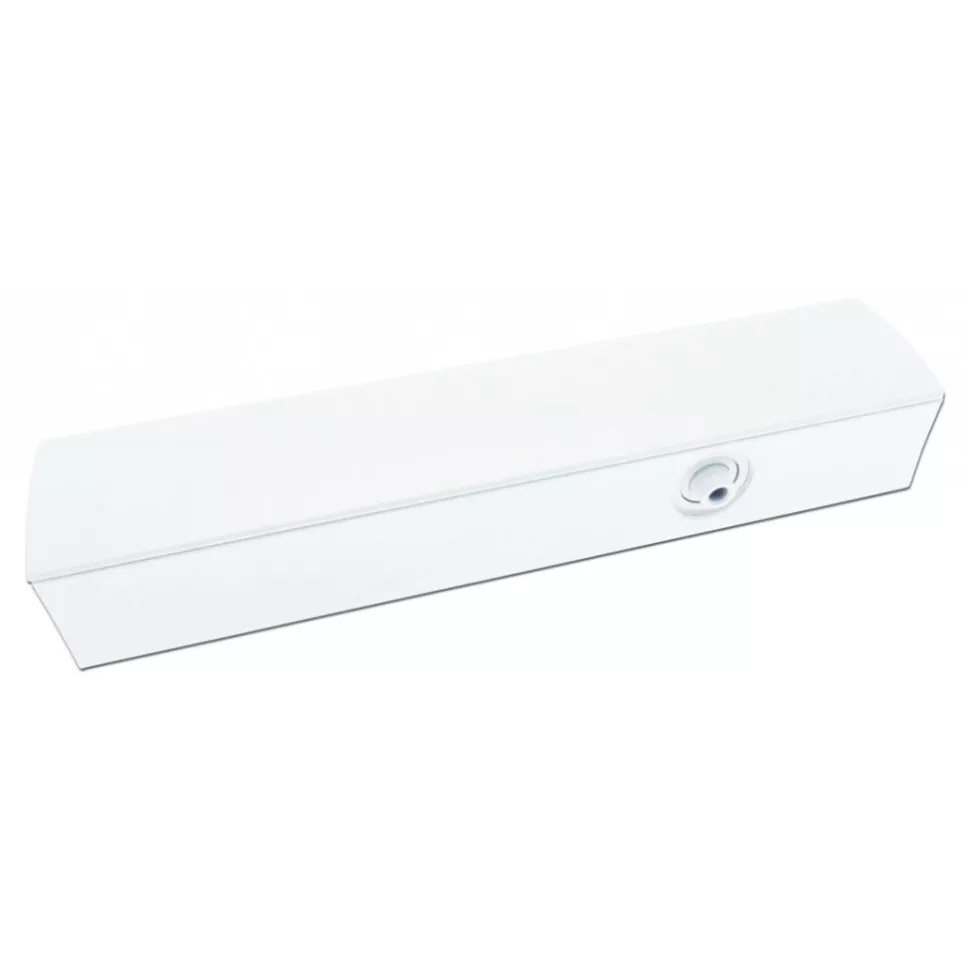

GEZE TS 5000 V Overhead Door Closer Without Arm White 9016 / pc

GEZE TS 5000 V Overhead Door Closer...

Estimated delivery date :  Friday 24 July
€281.66 HT
In stock

Ref : FGT-136255

Quantity

Add to your shopping List

You must be logged


Related Products

Description

Usage

The Geze TS 5000 V door closer is designed for controlled closing of single-leaf doors, suitable for both right- and left-hand installations on fire and smoke protection doors in commercial or residential buildings.

Advantages

  • Adjustable closing force (EN 2-6) provides flexibility for door weights and widths up to 1400 mm.
  • Compatible with fire and smoke doors, supporting enhanced building safety requirements.
  • Smooth, consistent operation thanks to hydraulic latching action, adjustable closing speed, and backcheck functions accessible from the front.
  • Reversible installation allows use on both DIN right or left-handed doors without conversion.
  • Visual display enables easy inspection of the set closing force; a mounting plate is required for fire/smoke-rated installations.

Specifications

  • Slimline body in white RAL 9016 finish with guide rail; overall length approximately 287 mm, depth 47 mm, height 60 mm.
  • Manufactured in compliance with EN 1154 standards; approved for use on fire/smoke protection doors when mounted with plate as specified by regulations.
  • Covers door leaf widths up to max. 1400 mm; continuously variable closing force from size EN 2 to EN 6. All key adjustments are made easily from the front panel during or after installation.[3][5]
  • Differentiators include thermo-stabilized valves for performance consistency across temperature changes and a safety valve against deliberate damage.[5]

How it works

The TS 5000 V uses an internal rack-and-pinion mechanical system combined with hydraulic damping to control door movement. Closing speed, latching action, backcheck resistance, and spring strength are adjusted via accessible front-facing screws according to desired functionality or regulatory requirements.[3][5]

See more

Product Details

Brand Geze
Finishing blanc
Product Dimensions 60 x 287 x 47 mm
With last stroke oui
Firewall oui
Strength (selon EN1154) EN 2-6
Leaf width (mm) 1400
Max. weight of leaf (kg) 120 Kg
For interior door oui
Operation technology à pignon et crémaillère
For door ext. opening outwards. oui
Opening brake oui
Max. opening angle on hinges 180°
Late Close non
Max. opposite opening angle hinges 120°
Type of opening function simple action
Adjustable closing speed oui
FGT-136255
