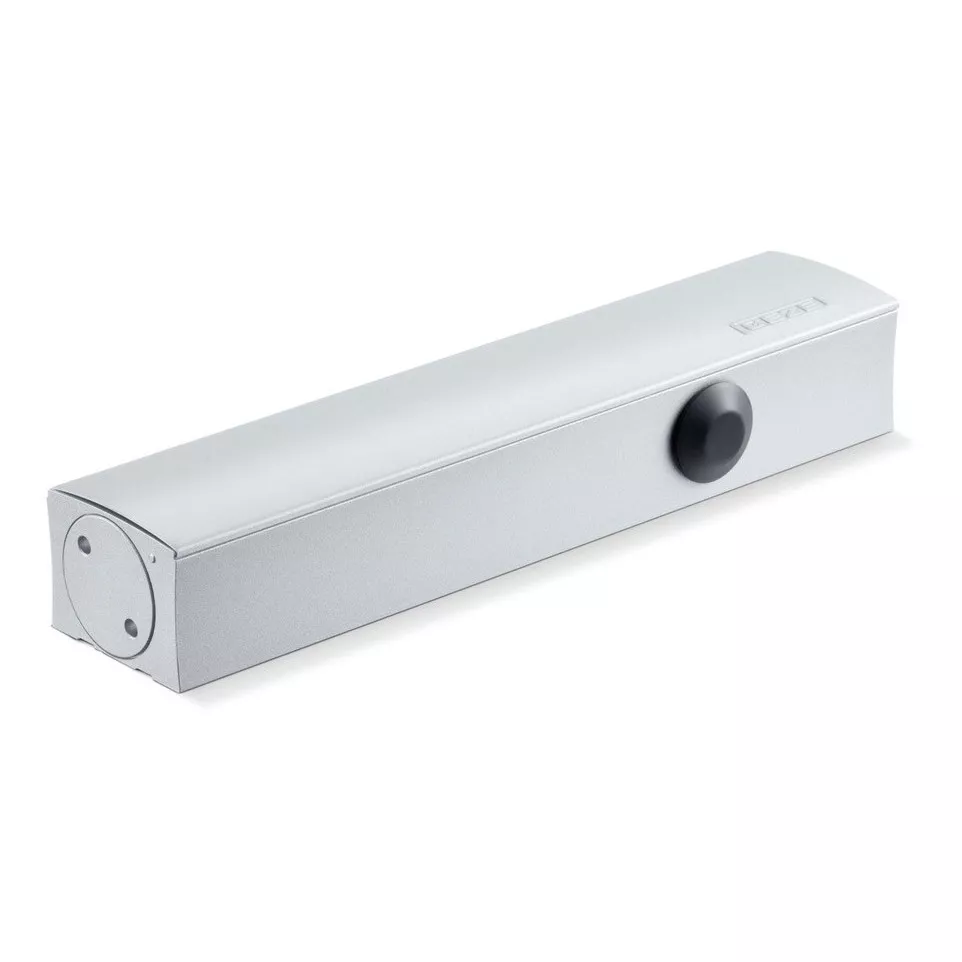

GEZE TS 5000 S door closer body without arm silver per piece

GEZE TS 5000 S door closer body without arm silver per piece
GEZE TS 5000 S door closer body without arm silver per piece
GEZE TS 5000 S door closer body...
GEZE TS 5000 S door closer body...

Estimated delivery date :  Tuesday 9 June
€317.12 HT
In stock (2)

Ref : FGT-136256

Quantity


Description

Usage

The Geze TS 5000 S door closer is designed for controlled automatic closing of swing doors in commercial and public buildings. It is ideal for ensuring security, fire protection, and convenient access management without requiring manual intervention.

Advantages

  • Adjustable closing force from EN size 2 to 6 for compatibility with different door weights and widths
  • Slimline surface-mounted design in silver finish integrates well with modern environments
  • Independent adjustment of closing speed, latching speed, and backcheck function enhances door control
  • Non-handed construction enables installation on right- or left-opening doors without modification
  • No arm included, so an appropriate arm must be selected based on specific installation needs

Specifications

  • Casing made from robust aluminum alloy with corrosion-resistant silver coating; uses cam-action technology for efficient operation[5]
  • Durability tested to over 500,000 cycles; conforms to EN1154 standard for performance on fire- and smoke-rated doors[1][3]
  • Covers door widths from approximately 950 mm to up to a maximum of around 1400 mm (EN size-dependent); suitable for door weights up to approximately160 kg at the highest setting depending on EN classification[1][4]
  • Slim design allows discreet mounting; suitable for top jamb or parallel arm mount configurations (arm not included)

How it works

The Geze TS 5000 S attaches above the hinge side of a door. When opened manually, its internal mechanism stores energy that is then used to close the door smoothly at adjustable speeds. Separate valves allow fine-tuning of sweep, latch action, and backcheck as needed.

See more

Product Details

Brand Geze
Finishing argent
Product Dimensions 60 x 287 x 47 mm
With last stroke oui
Firewall oui
Strength (selon EN1154) EN 2-6
Leaf width (mm) 1400
Max. weight of leaf (kg) 120 Kg
For interior door oui
Operation technology à pignon et crémaillère
For door ext. opening outwards. oui
Opening brake oui
Max. opening angle on hinges 180°
Late Close oui
Max. opposite opening angle hinges 120°
Type of opening function simple action
Adjustable closing speed oui
