Stop for Dorma TS 97 Slide Channel Arm (not for fire doors) per piece
€87.26
Usage

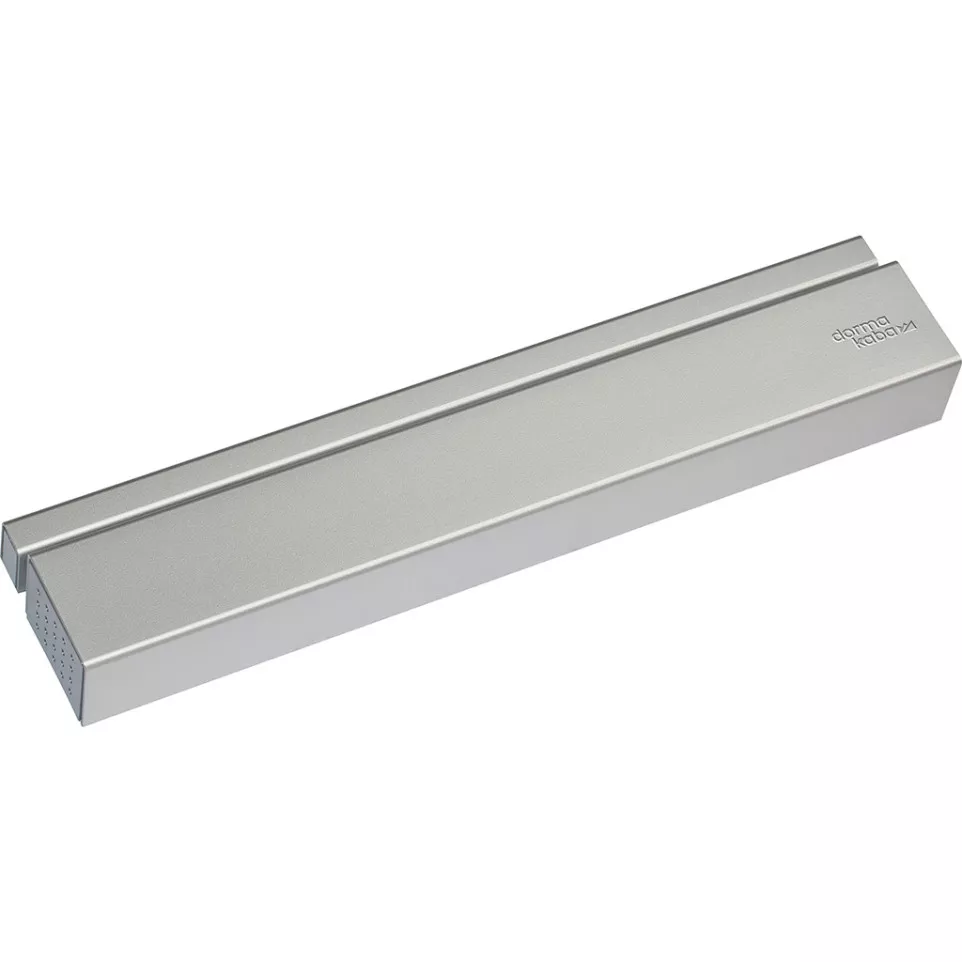

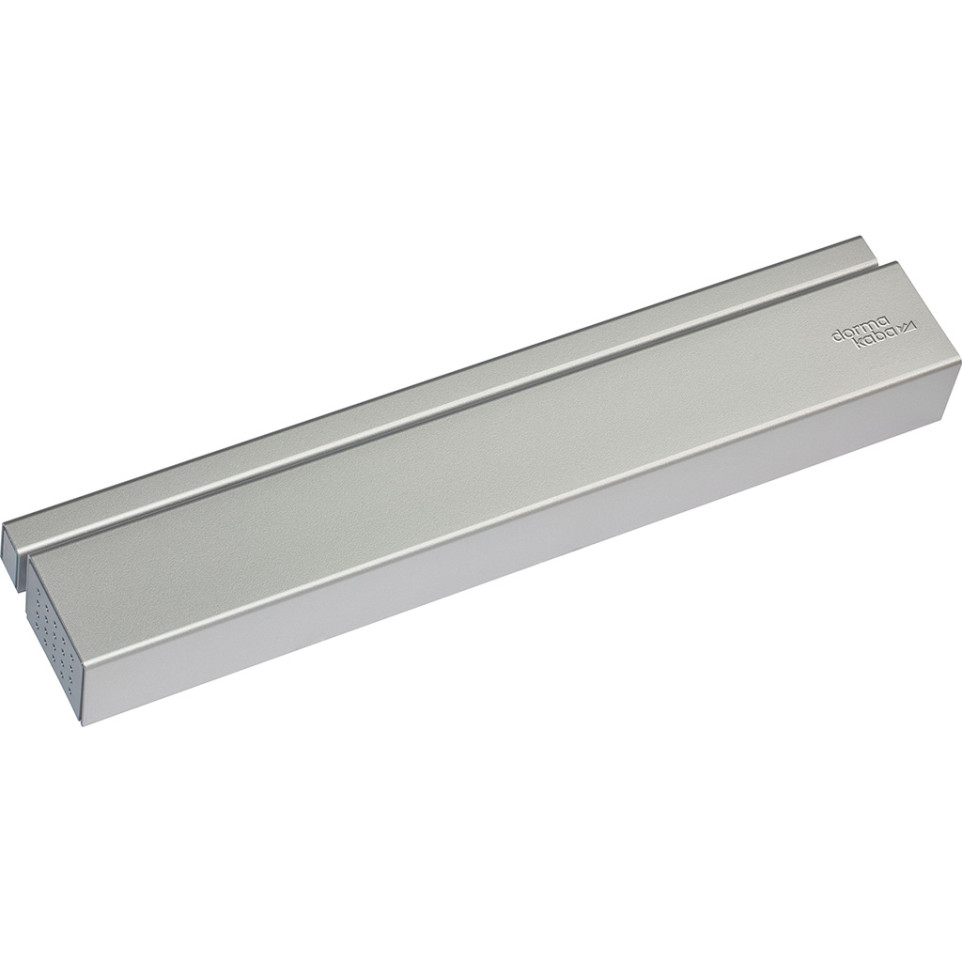

The Dorma TS 97 EN 2-4 door closer is designed for controlled, automatic closing of hinged doors in commercial and architectural environments. Suitable for surface mounting, it ensures reliable door closure where smooth operation and safety are required.
Advantages
- Cam action technology provides low opening resistance and smooth closing force.
- Adjustable power size EN 2-4 covers a wide range of door weights (approximately 40–80 kg) and widths (850–1100 mm).
- Integrated opening limiter prevents the door from exceeding safe angles, protecting walls and hinges.
- Slimline compact design in silver finish blends with modern interiors.
- Suits both left- and right-handed doors; flexible installation options reduce stock requirements.
Specifications
- Surface-mounted door closer with durable metal construction; cam action mechanism ensures efficient performance.
- Certified to EN 1154 standard for product performance; tested for over 500,000 cycles to guarantee longevity.[1][5]
- Covers power size EN 2–4: recommended for doors weighing between approximately 40 kg to 80 kg, with leaf widths from 850 mm up to 1100 mm. Maximum opening angle is typically up to 120°.[5]
- Includes adjustable closing speed valves; integrated backcheck protects against aggressive opening. Delivered complete with arm set and built-in cushioned stop mechanism.
How it works
The Dorma TS 97 EN 2-4 uses a cam action mechanism: when the door opens manually, its internal spring stores energy. As the user releases the door, this stored energy ensures progressive controlled closing through hydraulic dampening—adjusted by internal valves—to prevent slamming or abrupt movement.[5]
