Geze Link Arm for TS 2000-4000 Door Closer Black 9005 per piece
€49.47
In stock
Usage
The Ferme-porte Geze TS 4000 sans bras noir 9005 is designed for reliably closing single-leaf doors in commercial, public, or residential buildings. Ideal for fire and smoke protection doors up to 1400 mm wide.
Advantages
- Variable closing force EN1-6 allows precise adjustment to suit different door weights and widths.
- Compatible with both right and left single-action doors without the need for conversion.
- Integrated back check protects the door and frame by cushioning excessive opening force.
- Adjustable closing speed and latching action enable smooth operation tailored to user needs.
- A visual display simplifies checking and adjusting the selected closing force setting.
Specifications
- Main body made from robust materials, finished in RAL black (9005), designed for overhead installation with link arm configuration (arm not included).
- Certified according to EN 1154; suitable for use on fire and smoke protection doors. Meets DIN left/right requirements; barrier-free compliant up to specified width limits.

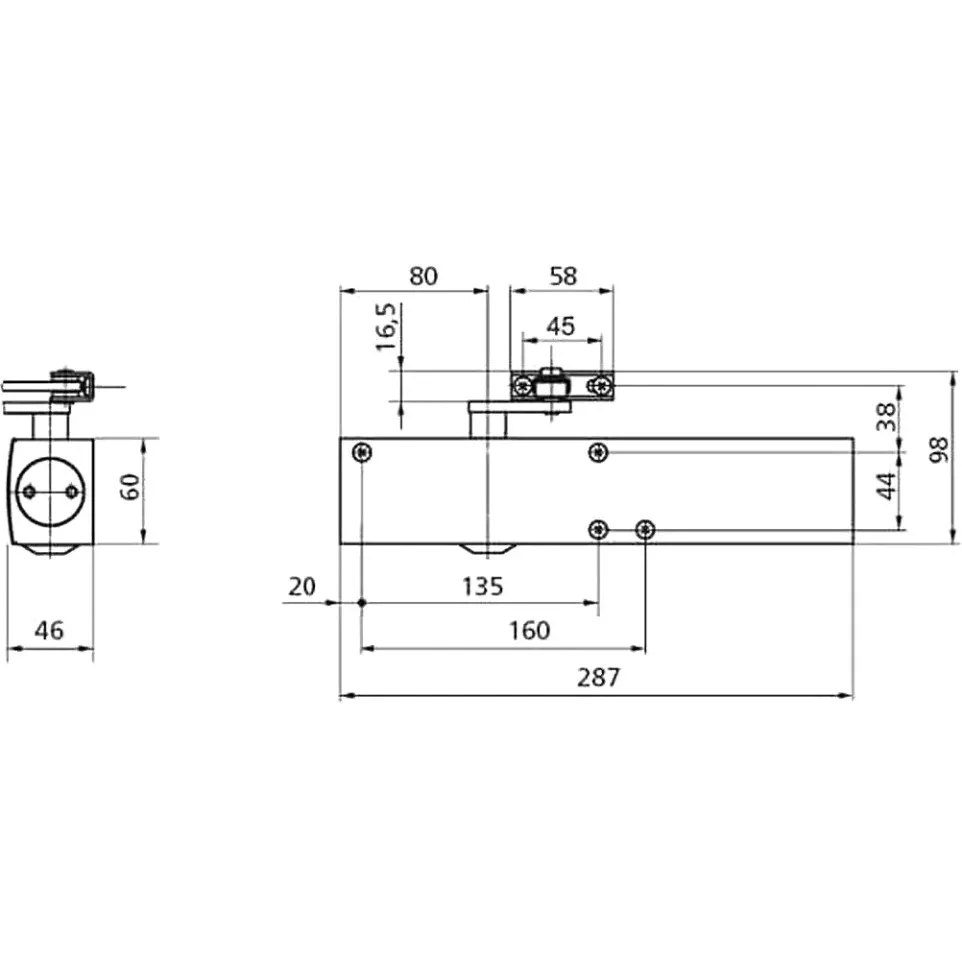

- Covers door leaf widths up to a maximum of 1400 mm; adjustable closing force EN1-6; can handle weights up to approximately120 kg. Dimensions: approx. length:287 mm, width:60 mm, height:46 mm[9][7].
- Differentiating features include tool-free adjustment of critical settings from the front panel, integrated safety valve against overloads, thermo-controlled hydraulic valves ensuring stable performance across temperatures[7][5].
How it works
This overhead door closer uses an internal hydraulic mechanism with adjustable valves to control how quickly a door closes after being opened. The installer sets the desired force and speed using front-facing adjusters—suitable for hinge-side mounting on both left- or right-hand doors[1][7].
