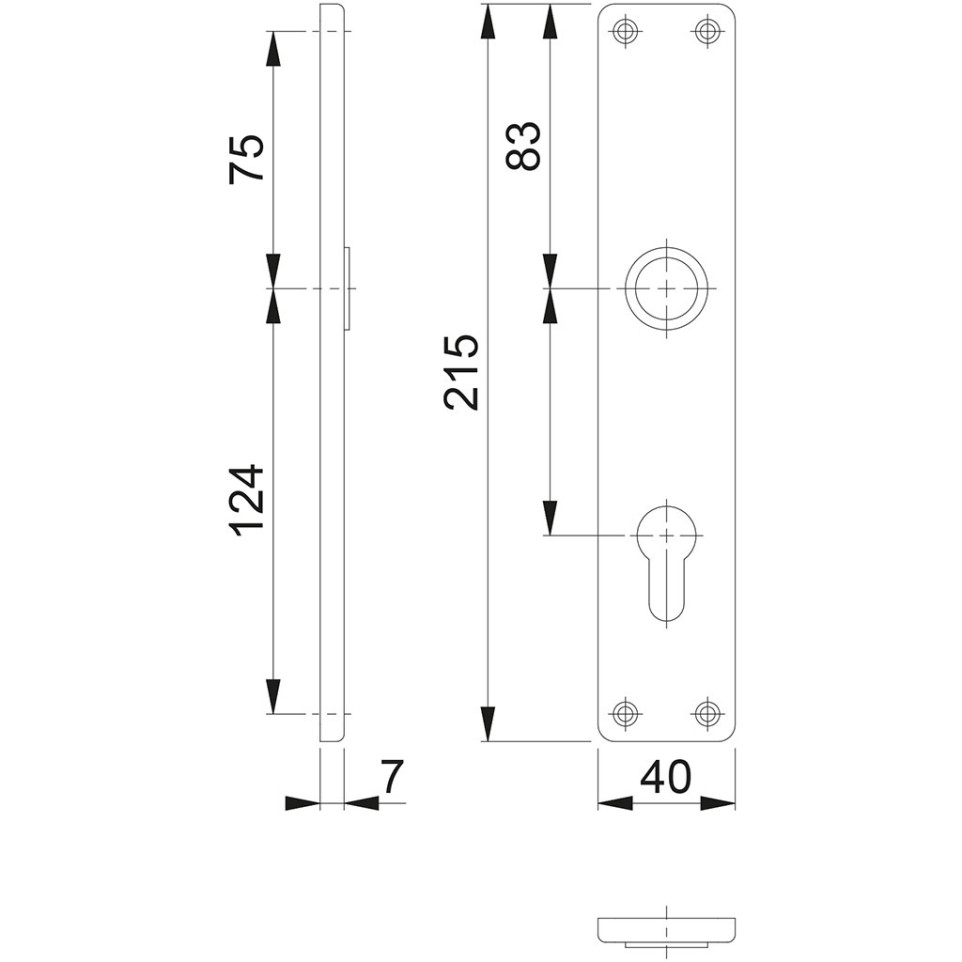

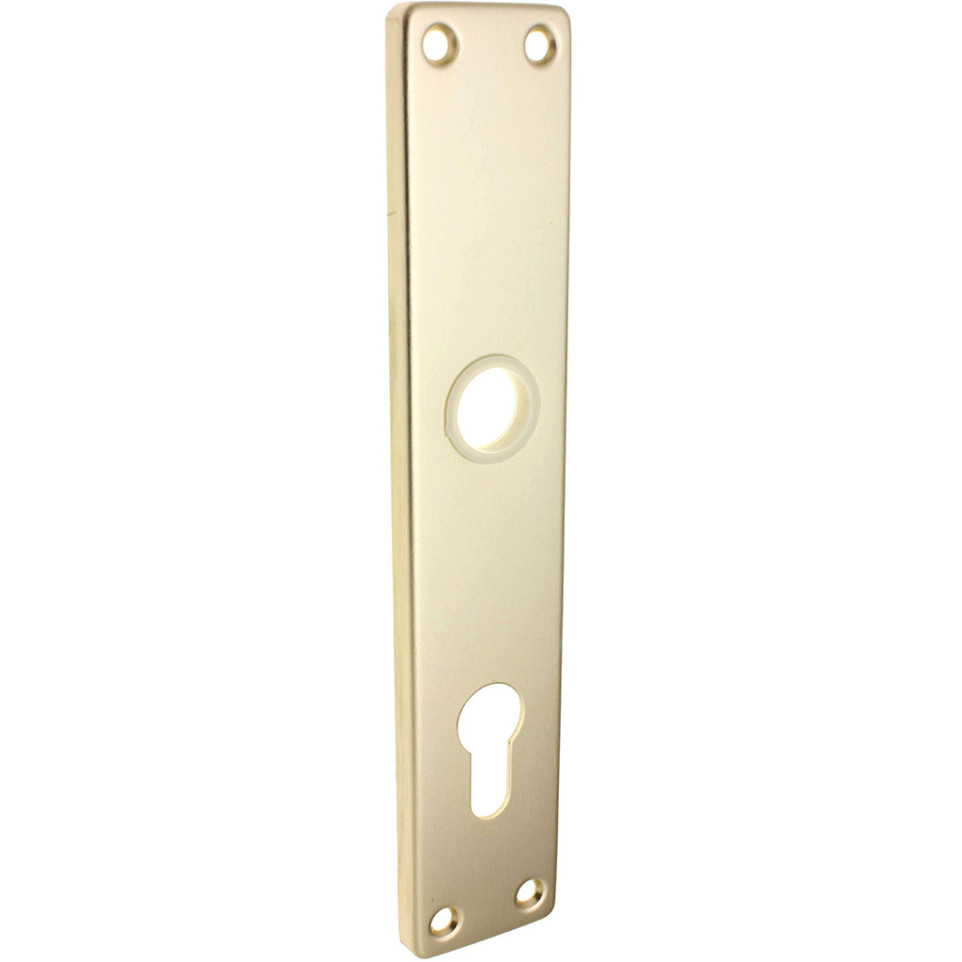

Pair of elongated aluminum plates designed for door fittings, suitable for residential or commercial use. Compatible with F2 profile locks and a 72 mm center-to-center distance, these plates provide both functionality and a refined aesthetic.
Install the plates on compatible doors to cover existing cutouts, support lock mechanisms, or provide a finished appearance. Attach using the provided screws and standard tools. The anodized finish offers long-term durability and ease of maintenance.
What type of locks are these plates compatible with?
These plates are designed for doors with F2 profile locks and a 72 mm center-to-center distance between the handle and keyhole.
Is the installation hardware included?
Yes, each set comes with four 3.5 x 16 mm screws for mounting.
Are the plates suitable for both left and right-hand doors?
Yes, the universal design fits both left- and right-hand opening doors.
What is the finish of the plates?
The plates feature an anodized champagne color for enhanced appearance and surface protection.
Can these plates be used on exterior doors?
The anodized aluminum provides good resistance to corrosion, but for extreme outdoor conditions, verify suitability according to environment and use case.
mvm-dt-2025-07-07
| Brand | LL |
|---|---|
| Finishing | F2 |
| Material used | aluminium anodisé |
| Trim | plaque seule |
| Use type | résidentiel |
| Footprint | PZ |
| Centre distance (mm) | 72 |
| Suitable for outdoor | oui |
| Door thickness (mm) | 38 à 70mm |
