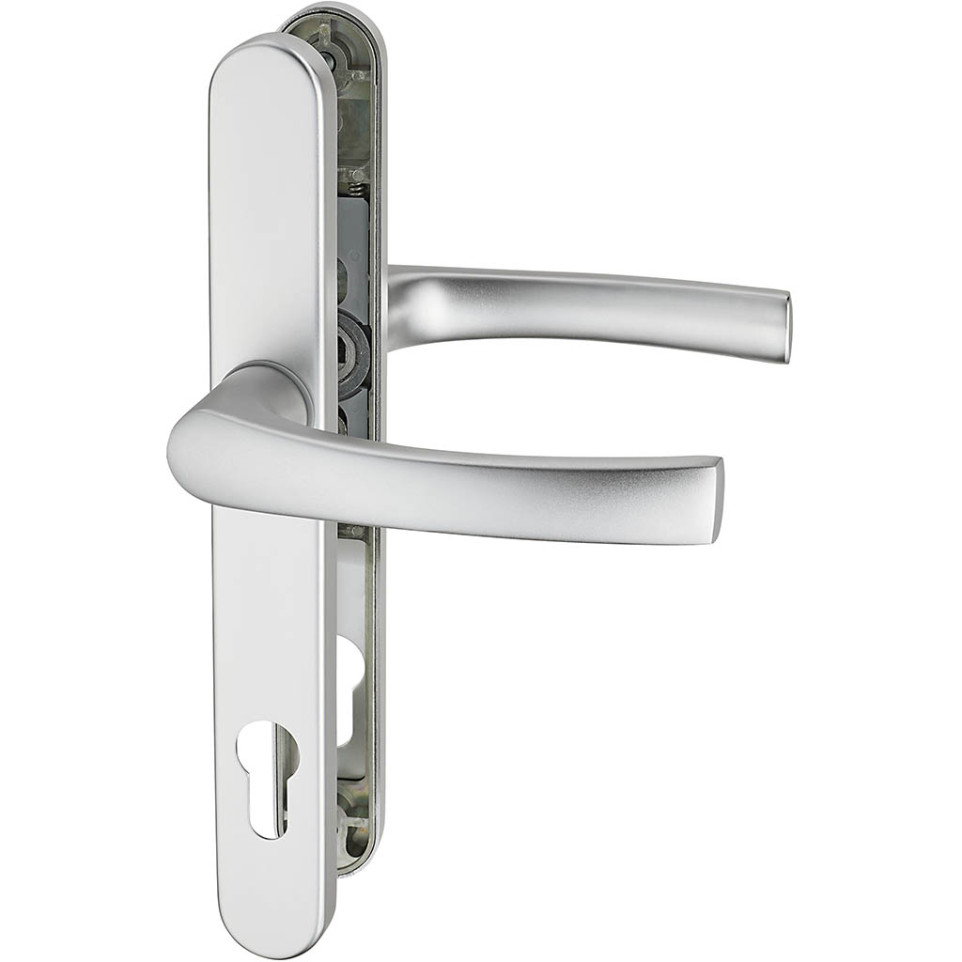

HERA 92 PZ Lever Handle on Plate 30mm F9 / pc

Product

Dieckmann’s HERA 92 PZ handle set features slim 30 mm aluminum plates with integrated spring return, designed for secure and smooth operation on doors with multipoint locks and euro cylinders.

Specifications

• Narrow 30 mm aluminum backplates ensure a sleek profile
• Spring return technology provides consistent handle reset after use
• Built-in invisible M6 fixing screws enhance aesthetics and tamper resistance
• Supplied with mounting screws and square spindle suited for doors 60–80 mm thick

Usage

Install the HERA handle set on doors requiring a 92 mm PZ measurement for spindle-to-key compatibility. The set’s spring return mechanism assures the lever automatically returns to its neutral position. Use the included screws and spindle for quick, concealed mounting on door thicknesses between 60–80 mm.

FAQ

1. Is this handle suitable for UPVC, aluminum, or composite doors?
   Yes, it is compatible with UPVC, aluminum, and composite doors due to its standard 92 mm PZ center and mounting system.

2. What is the 92 mm PZ specification?
   It refers to the distance between the center of the handle spindle and the center of the cylinder keyhole, commonly used in multipoint locking systems.

3. Are the fixing screws visible once installed?
   No, the handle plates feature invisible M6 screws for an uncluttered and secure appearance.

4. Does the set include all necessary installation hardware?
   Yes, it comes with installation screws and a square spindle for doors ranging from 60–80 mm in thickness.

5. Is the handle suitable for both right and left-handed doors?
   The design allows for reversible installation on both right and left-handed doors.
