Hera Exterior Curtain Rod Handle on 30mm Plate F9, Pcs

Hera Exterior Curtain Rod Handle on 30mm Plate F9, Pcs
Hera Exterior Curtain Rod Handle on 30mm Plate F9, Pcs
Hera Exterior Curtain Rod Handle on...
Hera Exterior Curtain Rod Handle on...

Estimated delivery date :  Wednesday 15 July
€35.09 HT
In stock

Ref : FGT-1028242

Variantes

Door handle pair HERA 92 PZ on 30mm white plate / piece Door handle pair HERA 92 PZ on 30mm white plate / piece Exterior Hera 92 PZ Handle on 30mm Plate F9 / pc Exterior Hera 92 PZ Handle on 30mm Plate F9 / pc HERA 92 PZ Door Handle on Plate 30mm F1 per piece HERA 92 PZ Door Handle on Plate 30mm F1 per piece HERA 92 PZ exterior passage handle on 30mm F1 plate for shutters / pc HERA 92 PZ exterior passage handle on 30mm F1 plate for shutters / pc HERA 92 PZ Lever Handle on Plate 30mm F9 / pc HERA 92 PZ Lever Handle on Plate 30mm F9 / pc HERA Exterior Door Handle 92 PZ on 30mm Plate F1 / piece HERA Exterior Door Handle 92 PZ on 30mm Plate F1 / piece Hera Exterior Door Handle Set with Plate 30mm White / piece Hera Exterior Door Handle Set with Plate 30mm White / piece HERA Exterior Door Handle White on Plate 92mm PZ 30mm / pc HERA Exterior Door Handle White on Plate 92mm PZ 30mm / pc Hera Internal Door Handle 92 PZ on 30mm Plate White / piece Hera Internal Door Handle 92 PZ on 30mm Plate White / piece Hera Internal Door Handle on Plate 92 PZ 30mm F1 / pc Hera Internal Door Handle on Plate 92 PZ 30mm F1 / pc Hera Internal Door Handle on Plate 92 PZ 30mm F9 / pc Hera Internal Door Handle on Plate 92 PZ 30mm F9 / pc Hera K27 Ball Bolt 92 PZ on 30mm Plate F9 / pc Hera K27 Ball Bolt 92 PZ on 30mm Plate F9 / pc K27 HERA 92 Ball Handle on 30mm Plate White / piece K27 HERA 92 Ball Handle on 30mm Plate White / piece K27 Hera Ball Drawer Pull with 30mm Backplate F1 Finish / each K27 Hera Ball Drawer Pull with 30mm Backplate F1 Finish / each
Quantity

Add to your shopping List

You must be logged


Description

Product

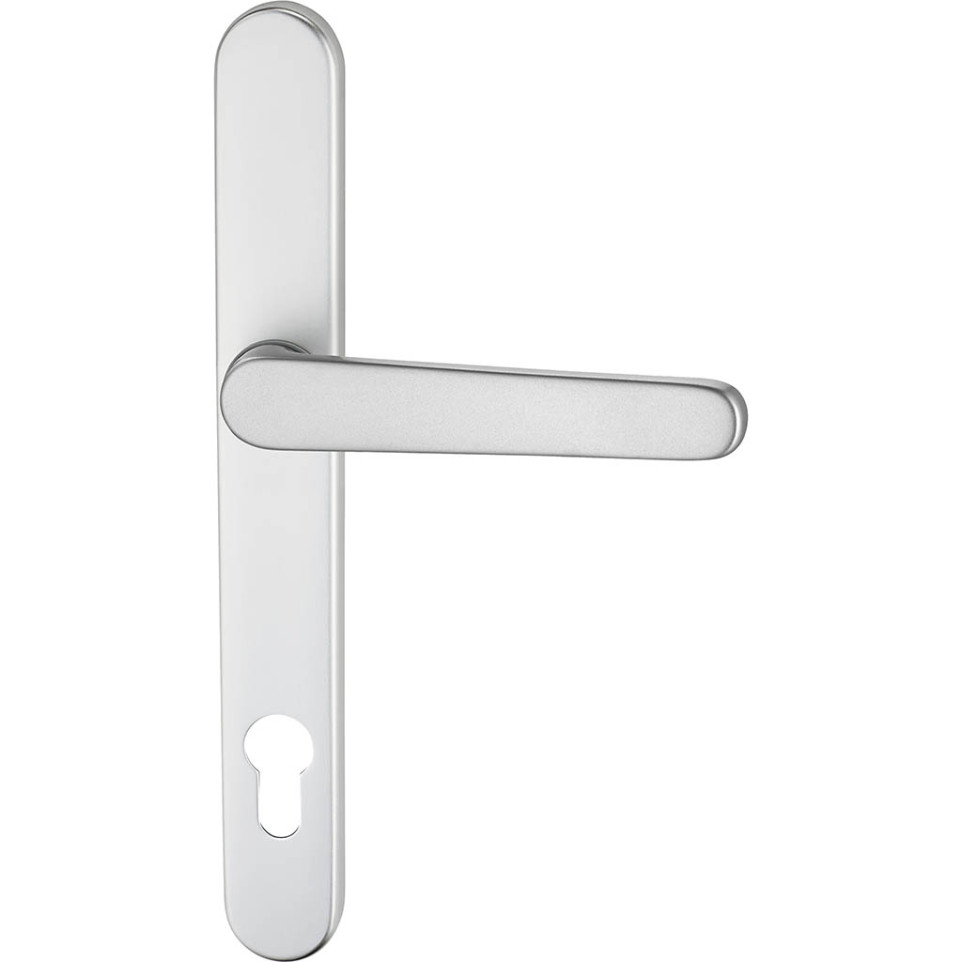

Exterior handle HERA 92 PZ by Dieckmann, designed for shutter-through application on narrow 30 mm aluminium plates; 26 mm thick handle, ideal for precise door fitting projects in residential and commercial settings.

Specifications

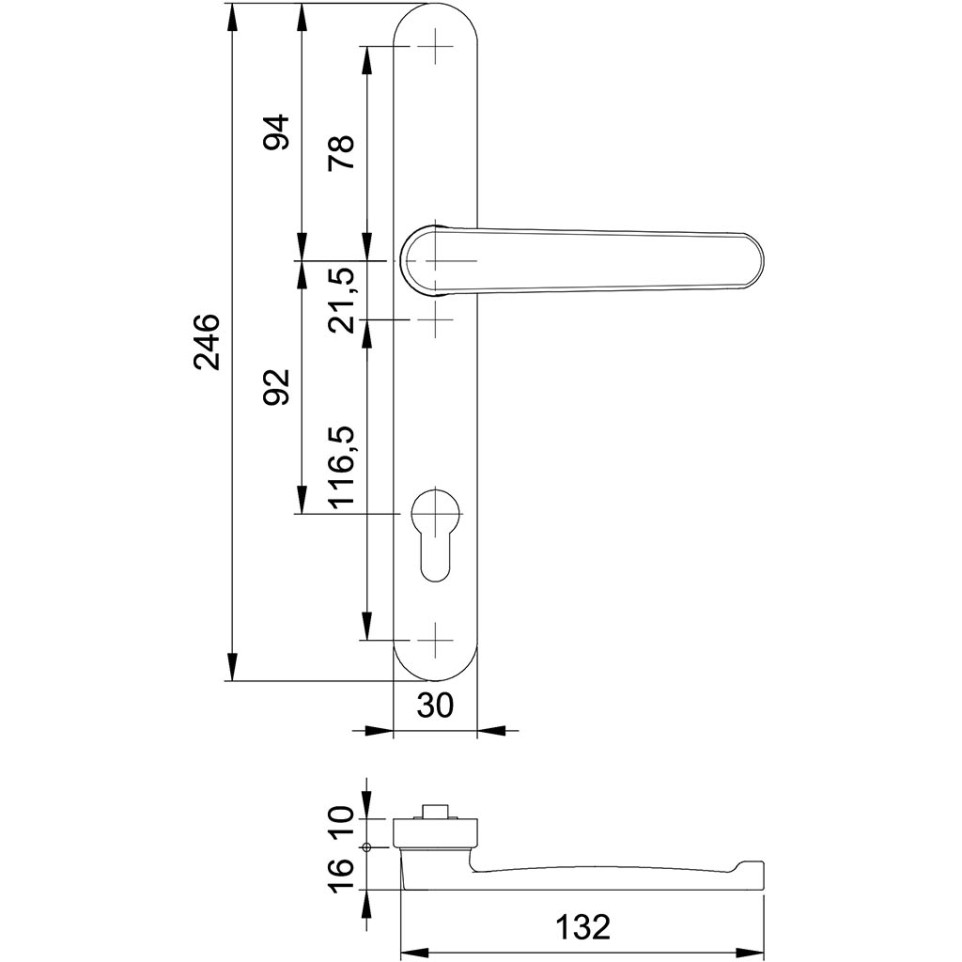

  • Made of robust aluminium with a slim 30 mm plate and handle thickness of 26 mm
  • Features concealed M6 fastening for a clean, modern finish
  • Delivered without screws or spindle; for exterior use with Dieckmann quality assurance
  • Suitable for 92 mm center-to-center measurements in door fittings

Usage

Install the handle on exterior doors or shutters equipped with 30 mm aluminium plates, aligning it with existing borings at 92 mm centers. Secure using M6 fasteners (not included). Handle supplied without mounting screws or connecting spindle.

FAQ

  1. What is the thickness of the handle?
    The handle has a thickness of 26 mm.

  2. Is the mounting hardware included?
    No, the handle comes without screws or spindle. M6 fixation is required.

  3. What material is the handle made of?
    The handle and plate are made of aluminium.

  4. Are the fixing screws visible once installed?
    No, the screws are invisible for a seamless look when mounted.

  5. Is this handle compatible with all door types?
    It is specially designed for aluminium plates measuring 30 mm and suitable for installations with a 92 mm cylinder center distance.

mvm-dt-2025-07-20

See more

Product Details

Brand Dieckmann
Finishing F9
Material used aluminium
Trim ensemble sur plaque
Description Poignée extérieure passage volet
Footprint PZ
Centre distance (mm) 92
Suitable for outdoor oui
Narrow-profile door oui
FGT-1028242
