Usage
The Finprotect Plus 5090 anti-finger-trap profile kit is designed for installation on the hinge side of doors, preventing finger injuries in high-traffic environments such as schools, childcare centers, hospitals, and public buildings.
Advantages
- Reduces risk of finger injuries by covering hazardous door gaps on the hinge side.
- Suitable for wooden, metal, PVCu, or glass doors; compatible with most single swing designs.
- Durable construction tested to one million opening cycles; five-year guarantee with correct installation.
- Simple and fast installation using included screws or optional double-sided tape for glass and plastic applications.
- Able to accommodate wide door openings up to 2500 mm in height without modification; fits both pull and push sides when used as a set.
Specifications

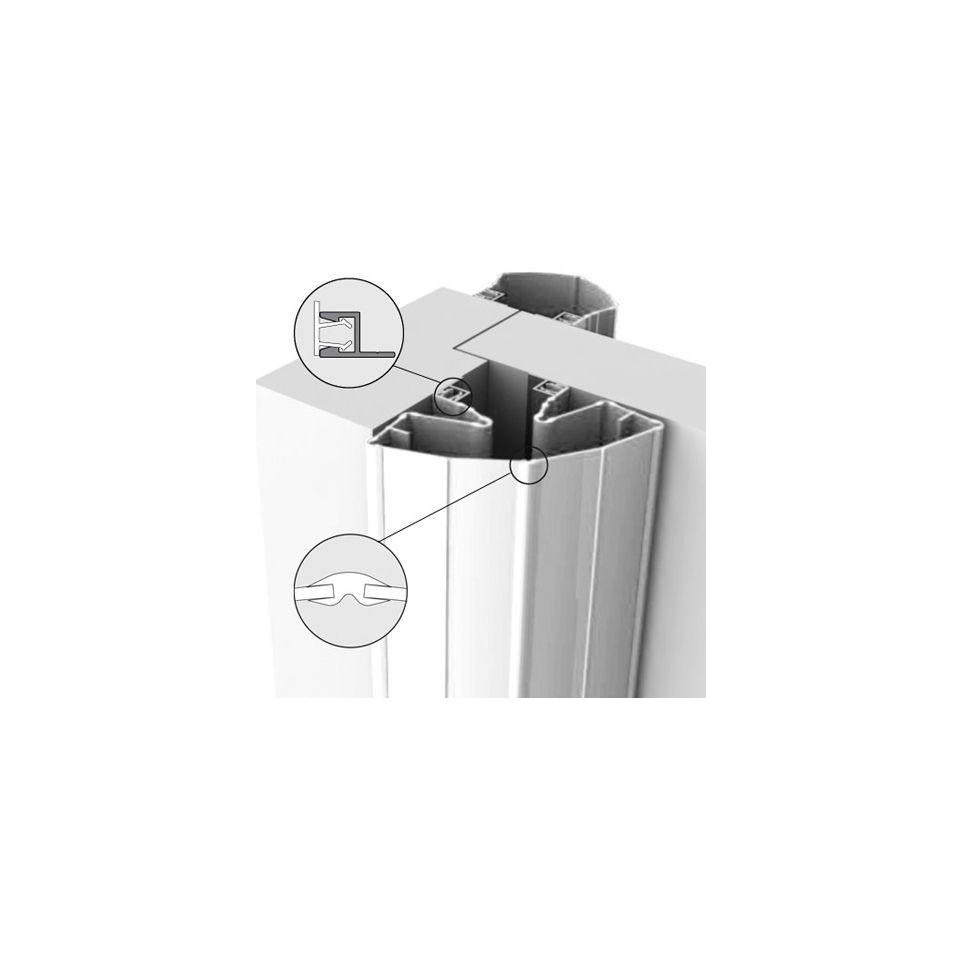

- Composed of dual-hardness synthetic sections within aluminium strips (white finish RAL 9010).
- LGA-tested for safety and function; certified fire-retardant (M1 at CSTB France); TÜV certified product.
Conforms to BS EN standards including EN16654 for finger protection devices.
Corrosion resistance: grade 4 after exposure to neutral salt spray for up to 240 hours (BS EN1670:2007).
- Total length per piece: 2500 mm. Aluminium profile width: approximately 15 mm; height: 10 mm. Tested lifespan exceeds one million open/close cycles.
Profile allows door opening angles between 130°–180°, depending on hinge type and installation method.

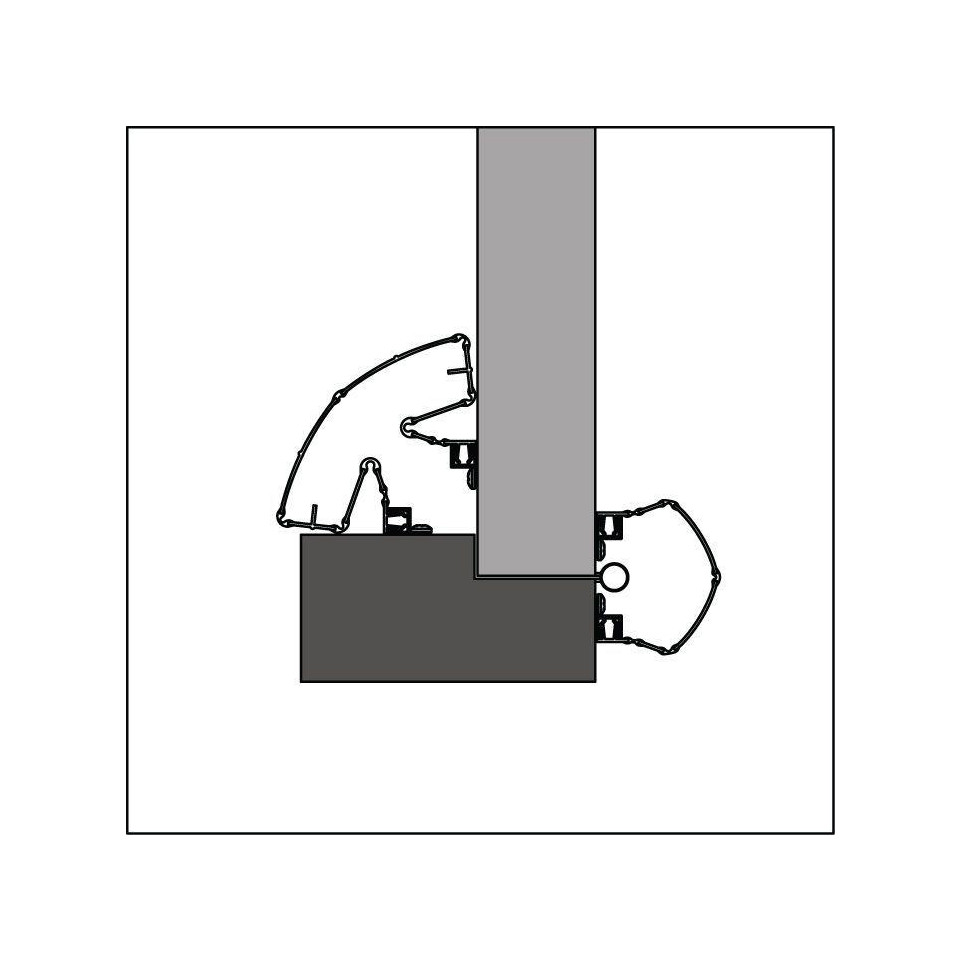

- Covers both leaf faces—the narrow section fits the hinge knuckle side (pull), broad section covers the push side—providing comprehensive protection across most standard door types.
How it works
The kit installs directly onto door leaf and frame using screws or optional adhesive tape. Once fitted, its flexible synthetic profiles block access to hazardous gaps when the door operates—preventing fingers from being trapped while maintaining full normal function of the door.
