Usage
The Finprotect Plus 5090 grey kit is designed to prevent finger pinching injuries on the hinge side of doors, ensuring safety in high-traffic public and commercial spaces such as schools, hospitals, and offices.
Advantages
- Protects both push and pull sides of the door leaf to minimize finger-trapping risks
- Suits tall doors with its long 2500mm profile for comprehensive coverage
- Tested for one million cycles, offering proven durability in demanding environments
- Conforms to safety standards (TÜV certified; tested at LGA Nürnberg) and corrosion resistance (BS EN 1670:2007 Grade 4)
- Easily cut to size for flexible installation; compatible with timber, steel, aluminium, or PVCu single-swing doors
Specifications

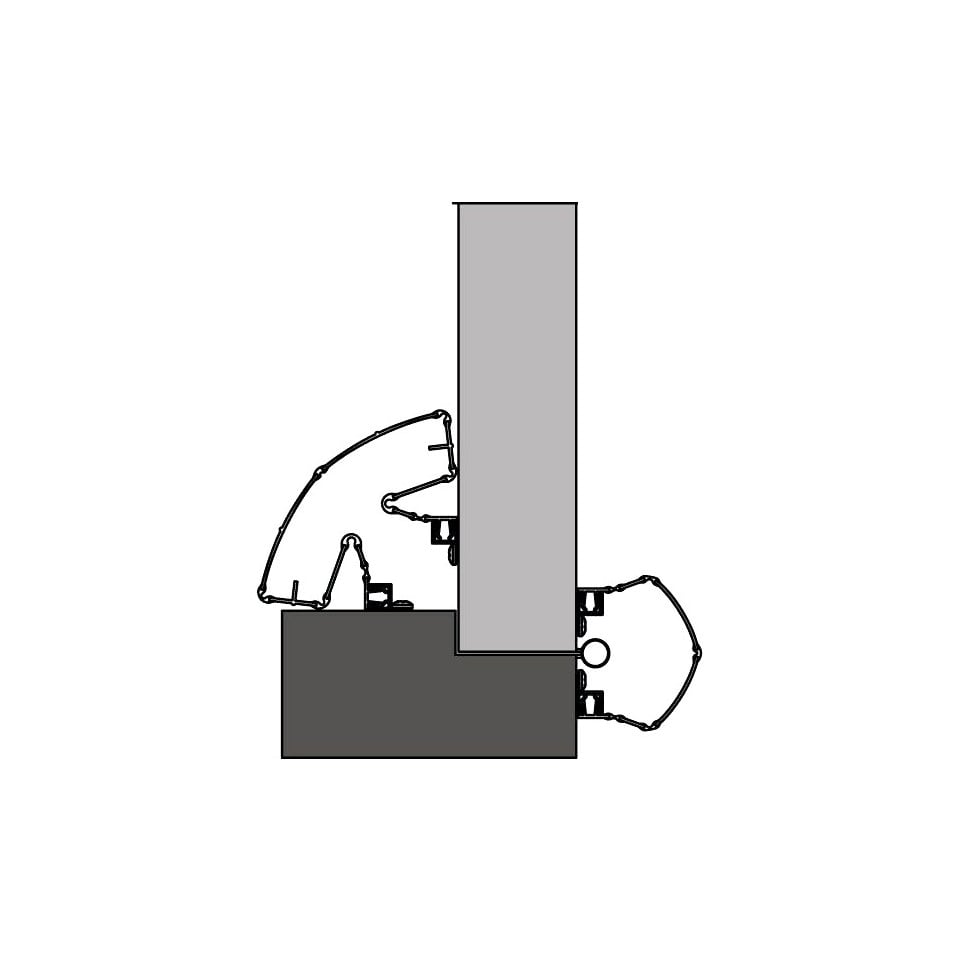

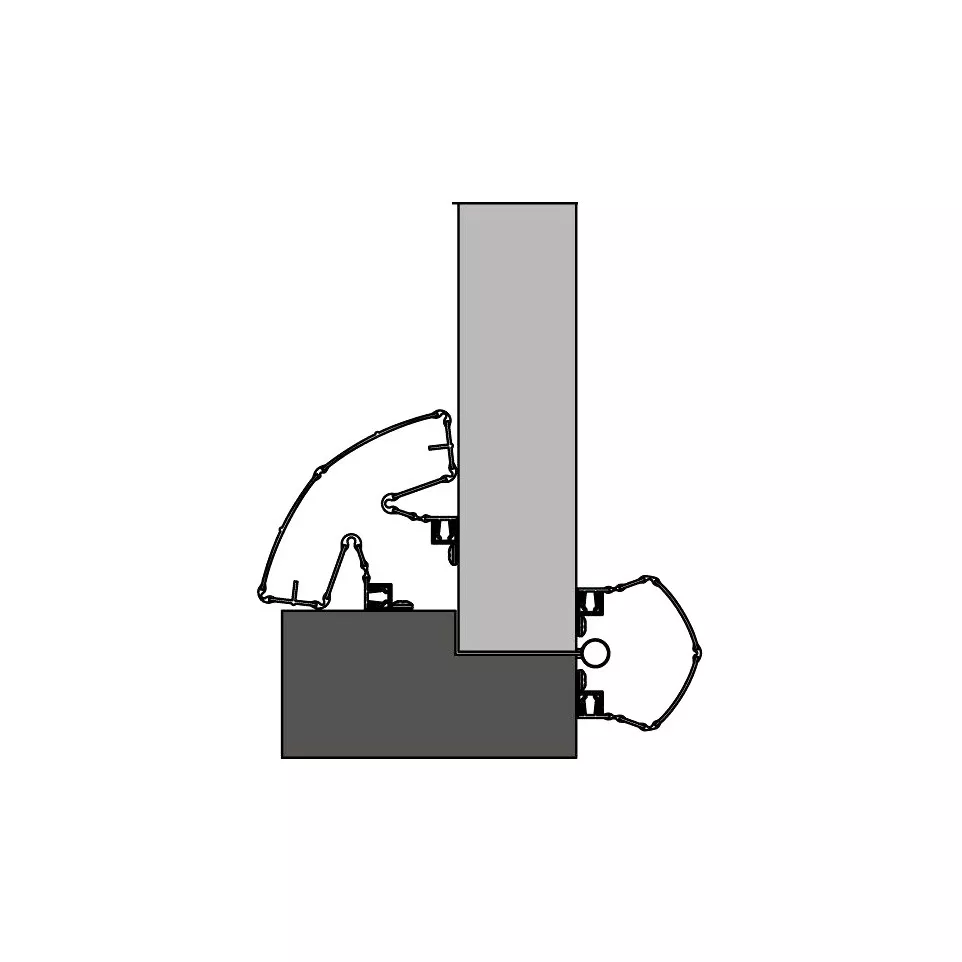

- The set consists of two profiles: a narrow section for the hinge knuckle side (pull) and a broad section for the opposite side (push). Made from extruded aluminium and robust synthetic materials.
- Lifespan tested over one million open-close door cycles. Certified fire-retardant M1 by CSTB. TÜV certified.
- Total length per piece: 2500mm. Profiles are approximately15mm wide x10mm high each; suitable for most standard tall doors. Supports opening angles up to180° on appropriate hinges.[3][4]
- A discreet design available in multiple colors—including grey—to match various interior styles; can be fixed using screws or optional double-sided tape depending on substrate material.[1][3][4]
How it works

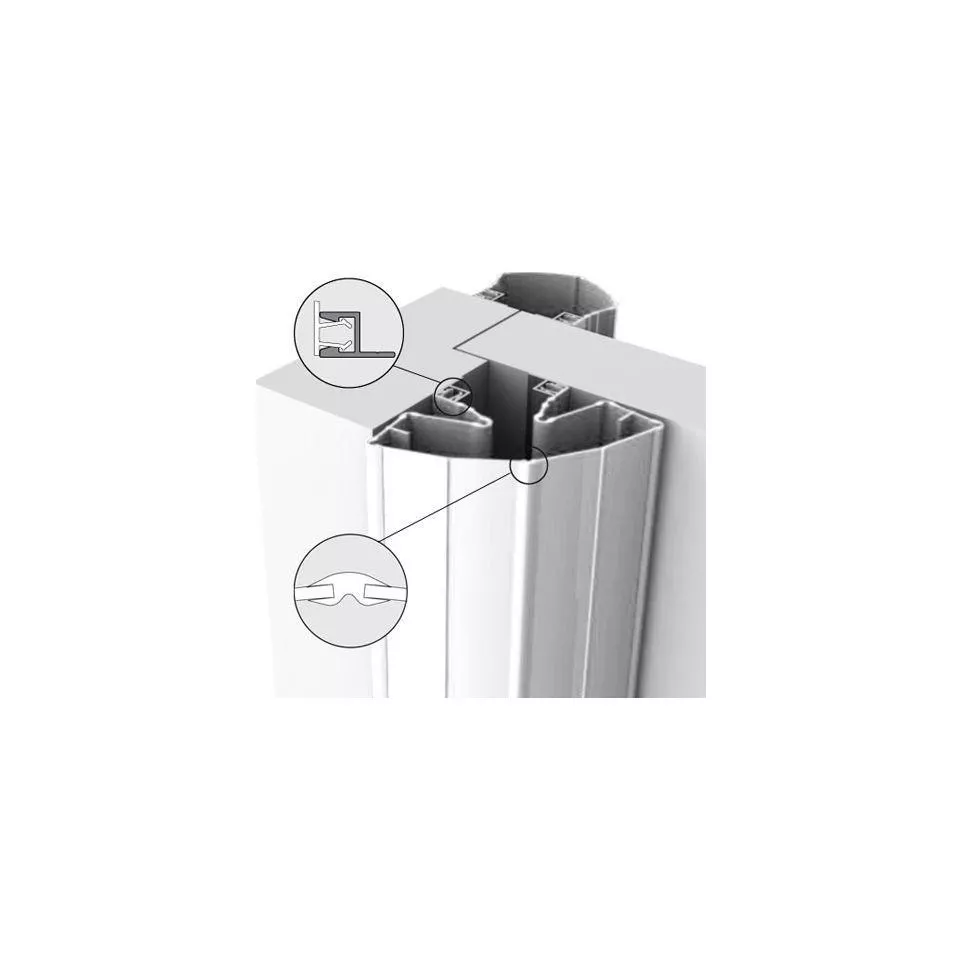

The Finprotect Plus profiles mount onto both faces of a door’s hinge side using provided screws or adhesive tape. When installed correctly, they safely cover the gap between door leaf and frame throughout the swing motion—eliminating pinch points while allowing smooth access.[1][4]
