Fermax Way Video Doorphone Kit / pc

Product

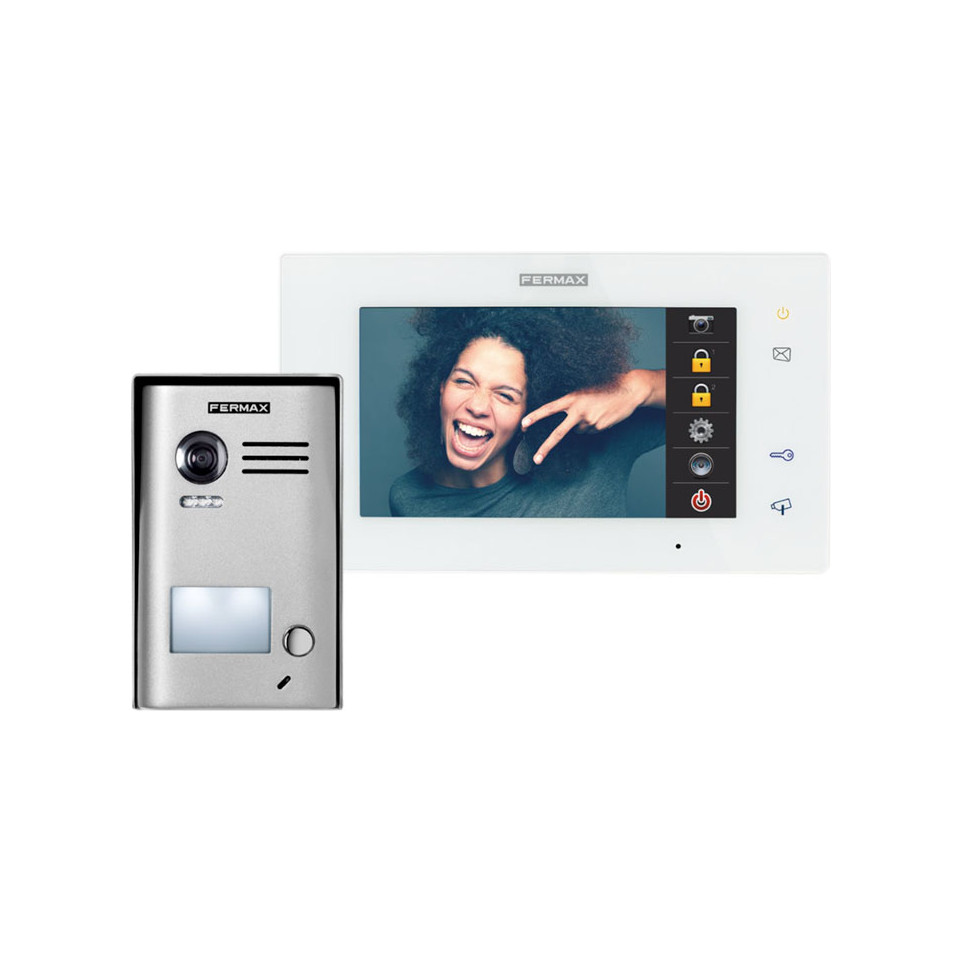

The Fermax Way Kit is a video door entry system designed for single-family homes. It features a durable outdoor panel with a high-sensitivity color CCD camera and an intuitive 7-inch color touch screen monitor, providing secure video communication for door management.

Specifications

• Outdoor panel made from zamak, equipped with a high-sensitivity color CCD camera and surface-mounted with protective visor
• 7-inch TFT color digital monitor with capacitive touchscreen for intuitive operation
• 20 selectable melodies, intercommunication between interior monitors, call log storage, and “do not disturb” mode (options: 1 hour, 8 hours, or permanent)
• Automatic or manual video/photo capture, with playback directly on the monitor (micro SD card required for video storage)
• Adjustable settings: brightness, contrast, melody, date/time, language selection (16 languages), ringtone volume (day/night modes)

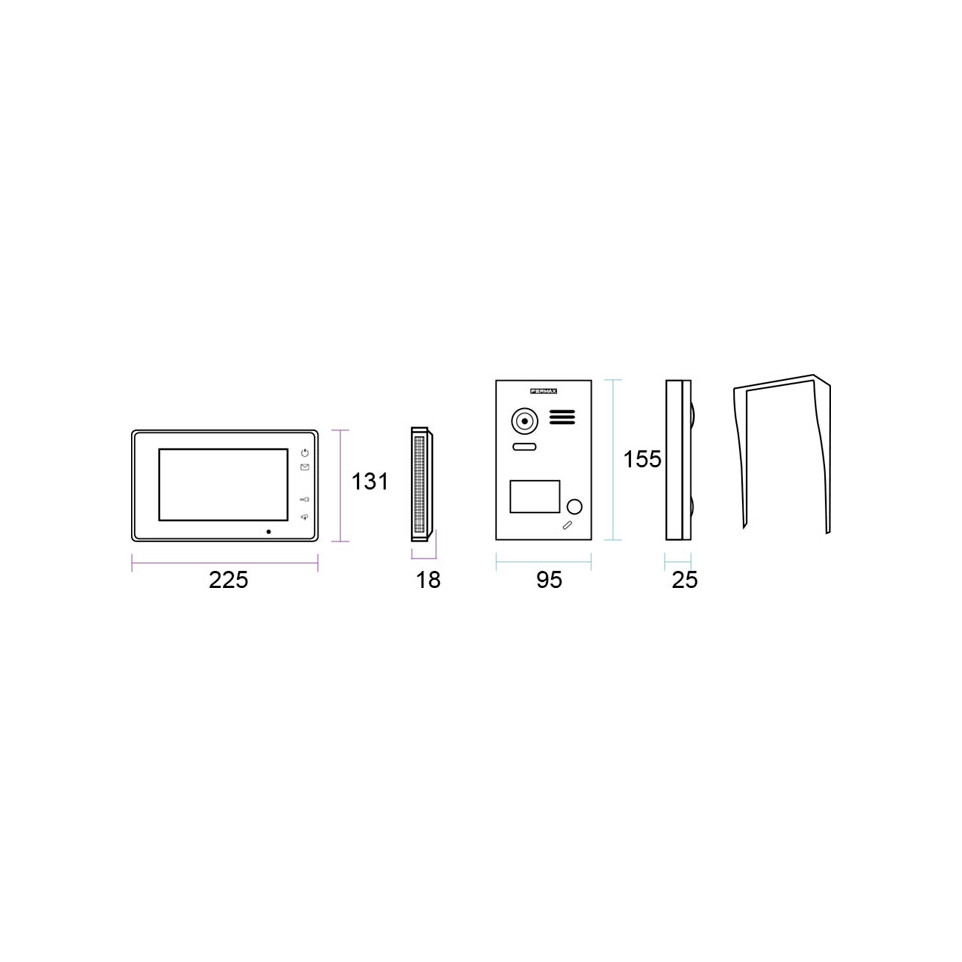

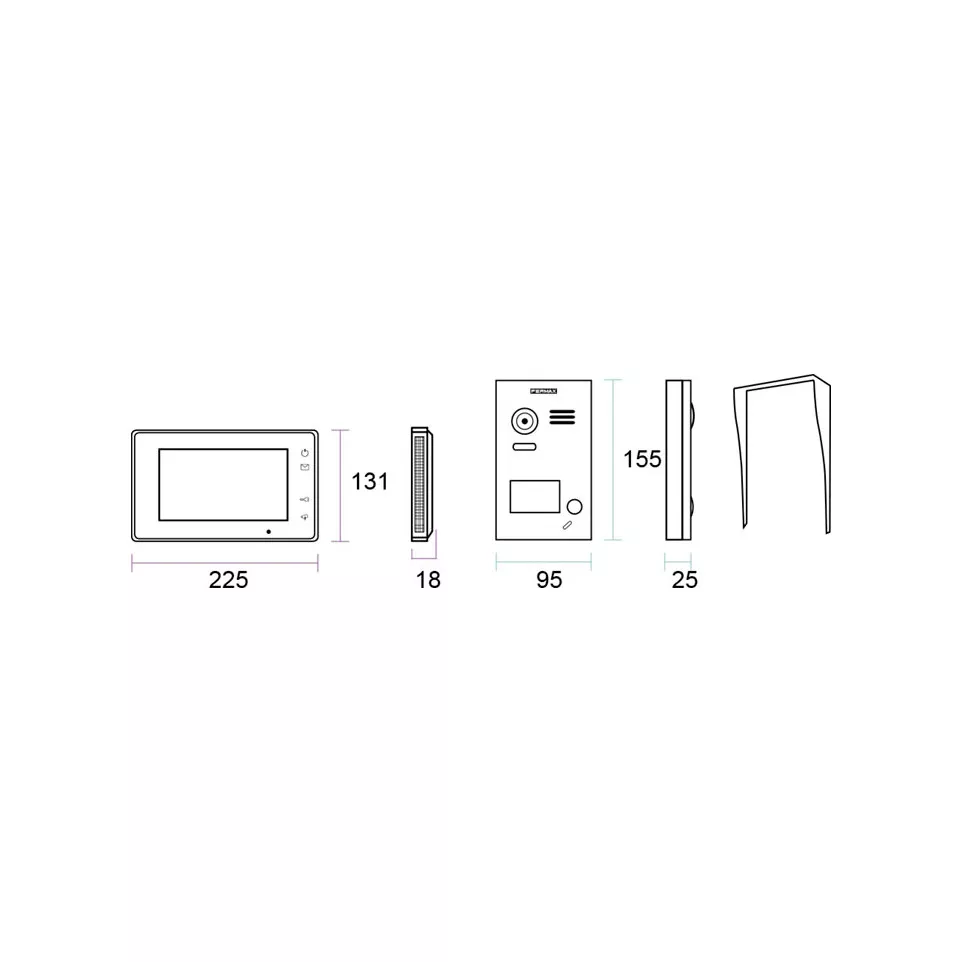

• Dimensions—Monitor: 225 x 131 x 18 mm; Outdoor panel: 95 x 155 x 25 mm
• 2-wire non-polarized installation; monitor power supply: DC 24~28V; standby consumption: 12 mA, operation: 350 mA
• Outdoor panel includes illuminated name tag, LED presence detection, and a relay control output (supports 12Vdc 250mA electric lock)

Usage

Install the outdoor panel at your entrance using its included visor for weather protection. Connect with the indoor monitor using two non-polarized wires. When a visitor calls, view and communicate via the color touch screen; the system can record a video or photo after three seconds, or you can capture images manually. Review call logs and adjust all settings directly from the monitor.

FAQ

1. Can I install the Fermax Way Kit using existing doorbell wiring?
   Yes, it operates with two non-polarized wires, making it compatible with many standard installations.

2. Does the system record visitors automatically?
   After three seconds, the monitor will automatically record a video or photo if a micro SD card is installed; manual capture is also available.

3. Is it possible to add extra monitors or panels?
   The system supports internal intercommunication between multiple monitors within the same home.

4. How is the outdoor panel protected against weather?
   The panel is made from zamak and equipped with a visor to resist rain and snow.

5. What customization options are available on the monitor?
   Users can select from 20 melodies, adjust brightness and contrast, set date and time, choose from 16 interface languages, modify ringtone volume, and activate “do not disturb” modes.
