Usage

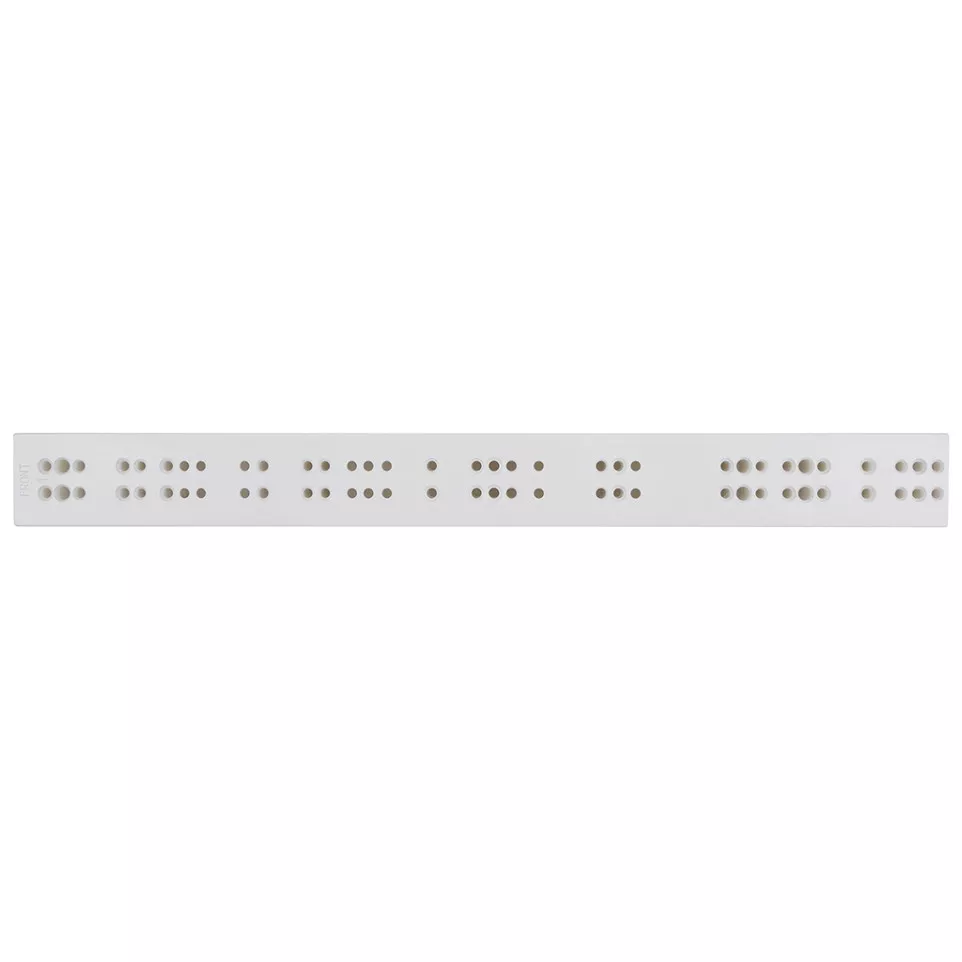

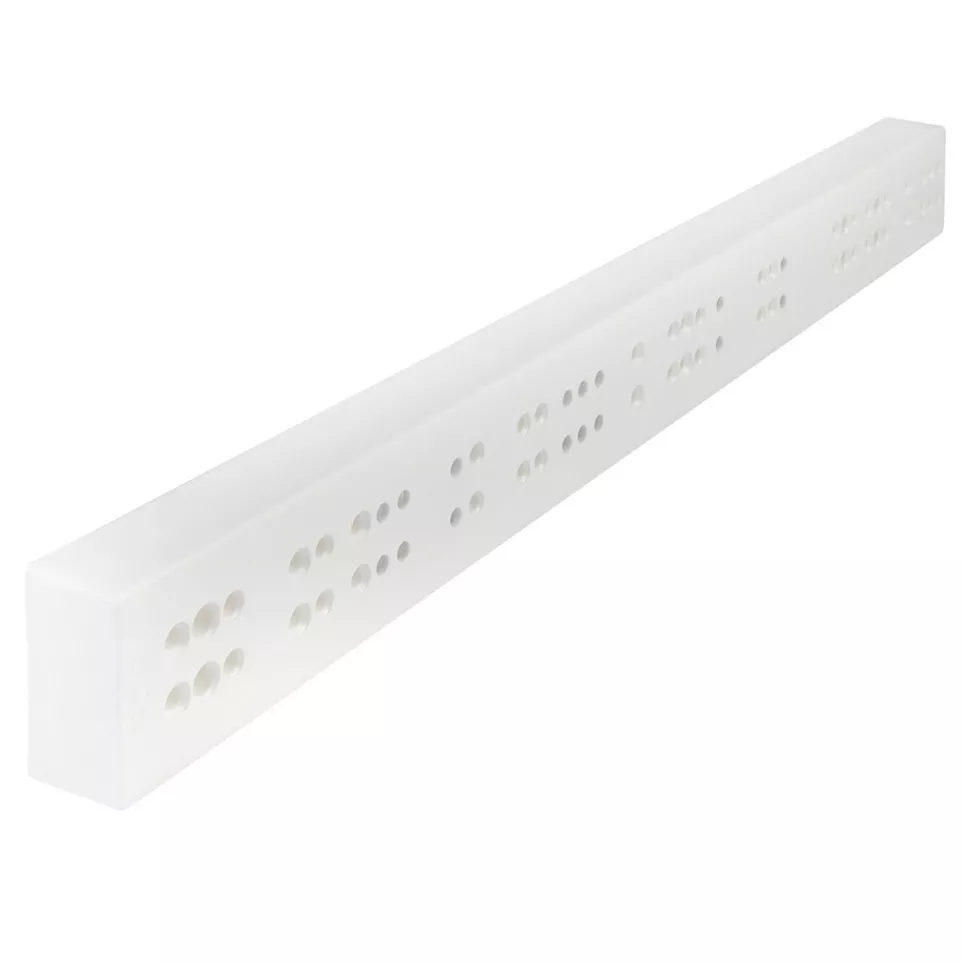

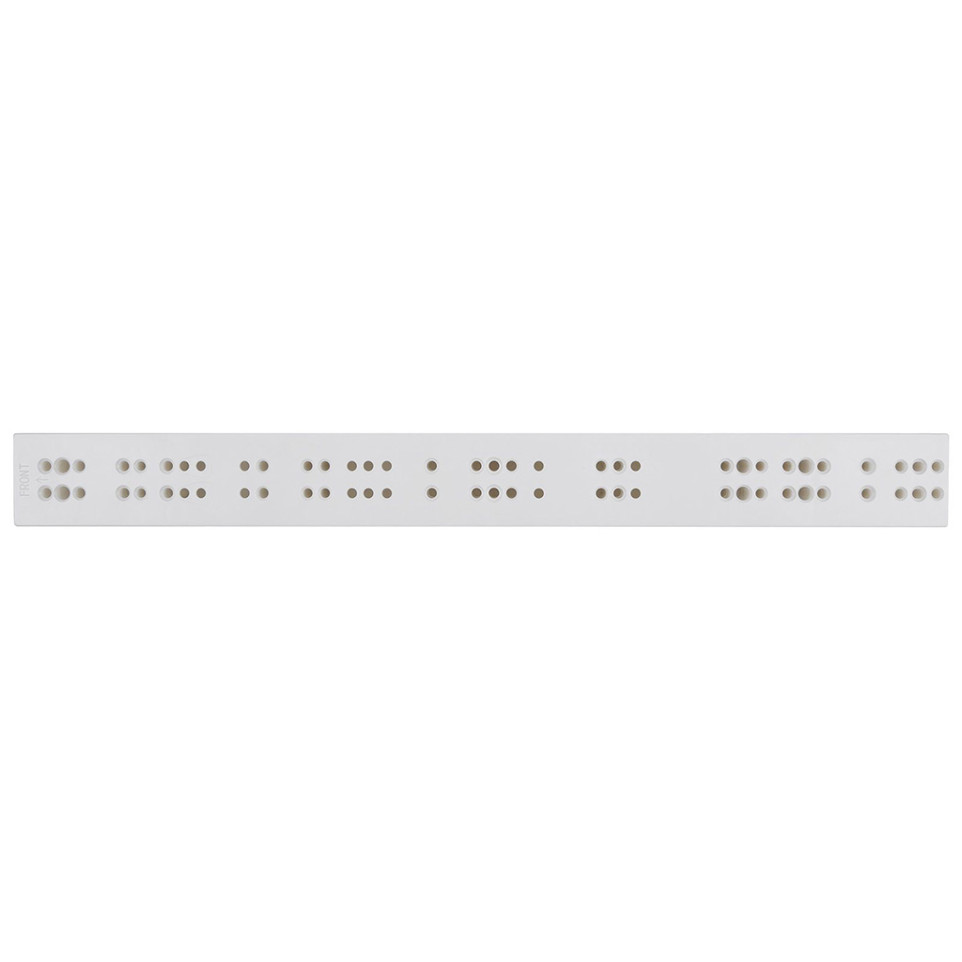

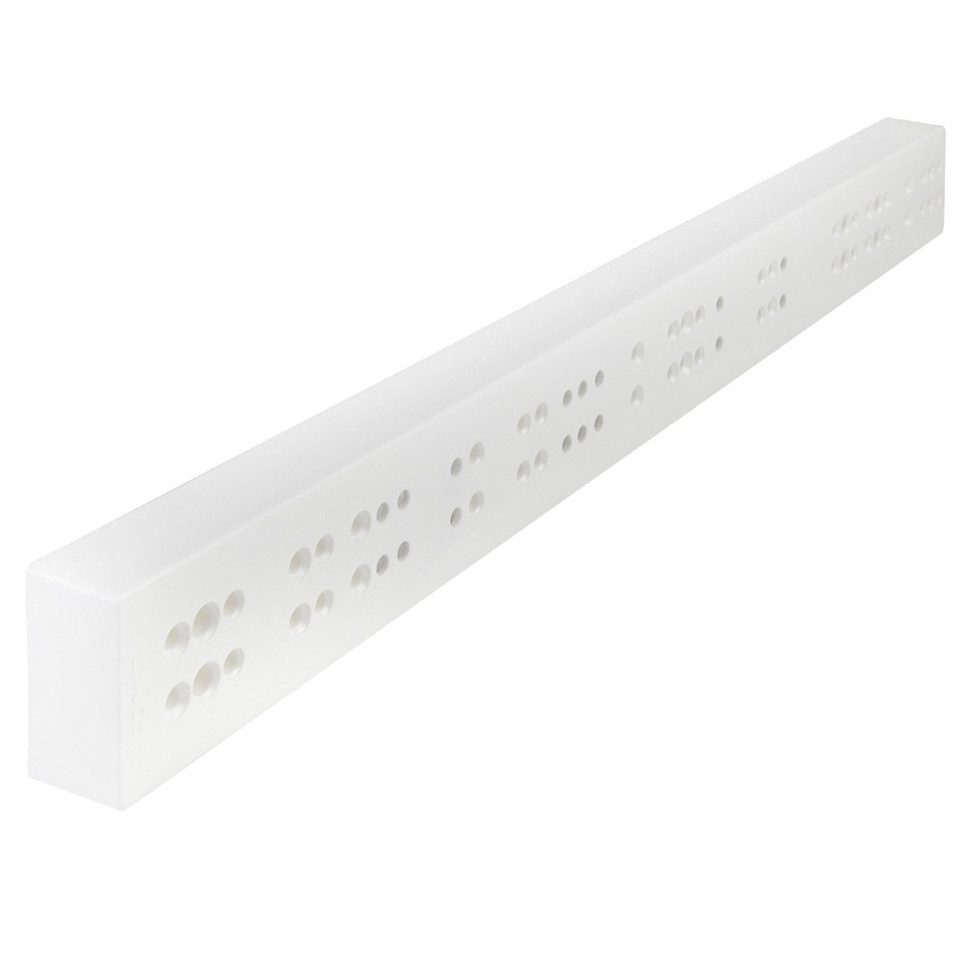

This white spacer bar is designed for use with drawer runners and slides, enabling easy installation of internal drawers. It compensates for door and hinge overlays in cabinets with a body thickness of 16 or 19 mm.
Advantages
- Compatible with all common standard drawer runners and systems
- Allows installation on both left and right sides using screws
- Helps prevent cabinet side panel breakage near hinges
- Easily shortened to fit different slide lengths (up to 500 mm)
- Simplifies overcoming door overlay up to a maximum of 25 mm
Specifications
- Material: White technical polymer, precise-molded design for stability

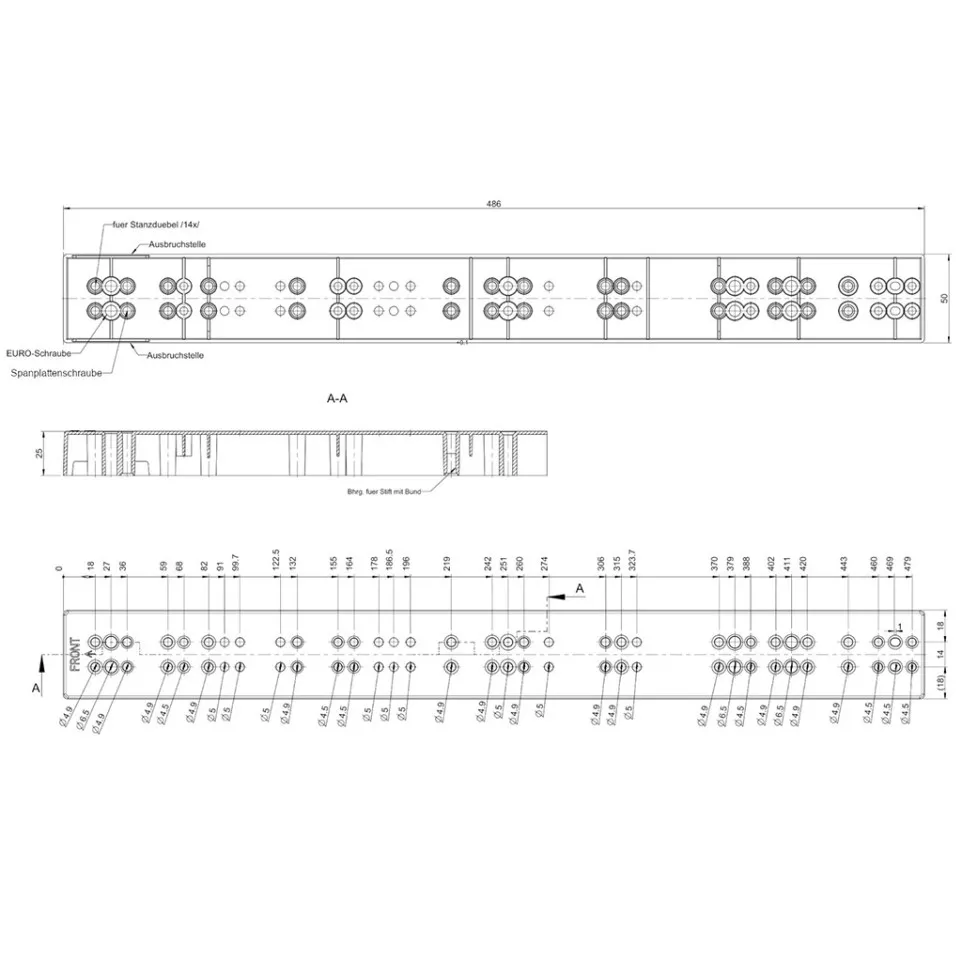

- LxHxP: 25 x 50 x 486 mm (can be cut shorter as needed)
- Screw mounting: Diameter of screws from 3.5 to 4 mm, minimum length of screw is at least 35 mm required for secure fixing
- Suits cabinet body thicknesses of 16/19 mm and accommodates most popular runner brands (Slim, HETTICH ArciTech/AvanTech/InnoTech/MultiTech, BLUM LEGRABOX/TANDEMBOX/MERIVO, GRASS Nova Pro/Dynapro/Vionaro/DWD-XP, etc.)
How it works
The spacer bar is mounted inside the cabinet using appropriate screws on either or both sides. It bridges the gap created by hinges or doors that protrude into the unit’s interior space, ensuring smooth operation and support for drawer slides.
