Product

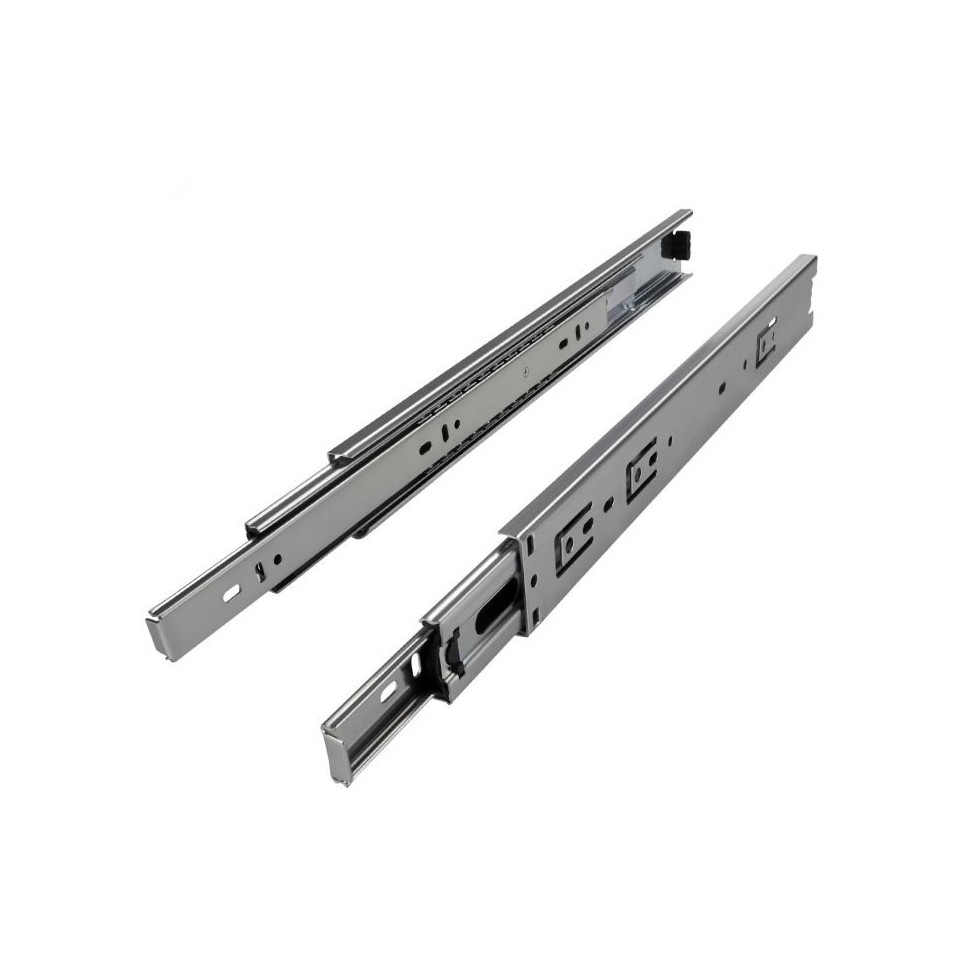

Full extension ball-bearing drawer runners, 500mm length and 45mm height, designed for smooth, quiet operation in furniture, industrial, and machine construction applications. Each pair supports up to 45kg per runner in standard mounting.
Specifications
- Made from galvanized steel for enhanced corrosion resistance
- Steel ball bearings are hardened for durability and reliable, smooth sliding
- Soft, silent guidance system reduces operational noise
- Full extension feature with easy disconnect for drawer removal
- Supports up to 45kg per runner; load capacity reduced to approximately 25% when mounted flat
- Side or flat mounting options for versatile installation
Usage
Install the runners laterally or flat along the drawer and carcass sides for soft, silent, and reliable extension. Use the integrated release mechanism to easily remove drawers for maintenance or adjustment. Flat mounting reduces the supported load, so adjust use accordingly.
FAQ
-
What is the maximum load capacity per pair?
- The runners support up to 45kg per pair when mounted on the side; load is reduced to about 11.25kg if mounted flat.
-
Can these runners be used for deep or heavy-duty drawers?
- Yes, as long as the drawer's load does not exceed 45kg per pair in standard installation.
-
How do I remove the drawer once installed?

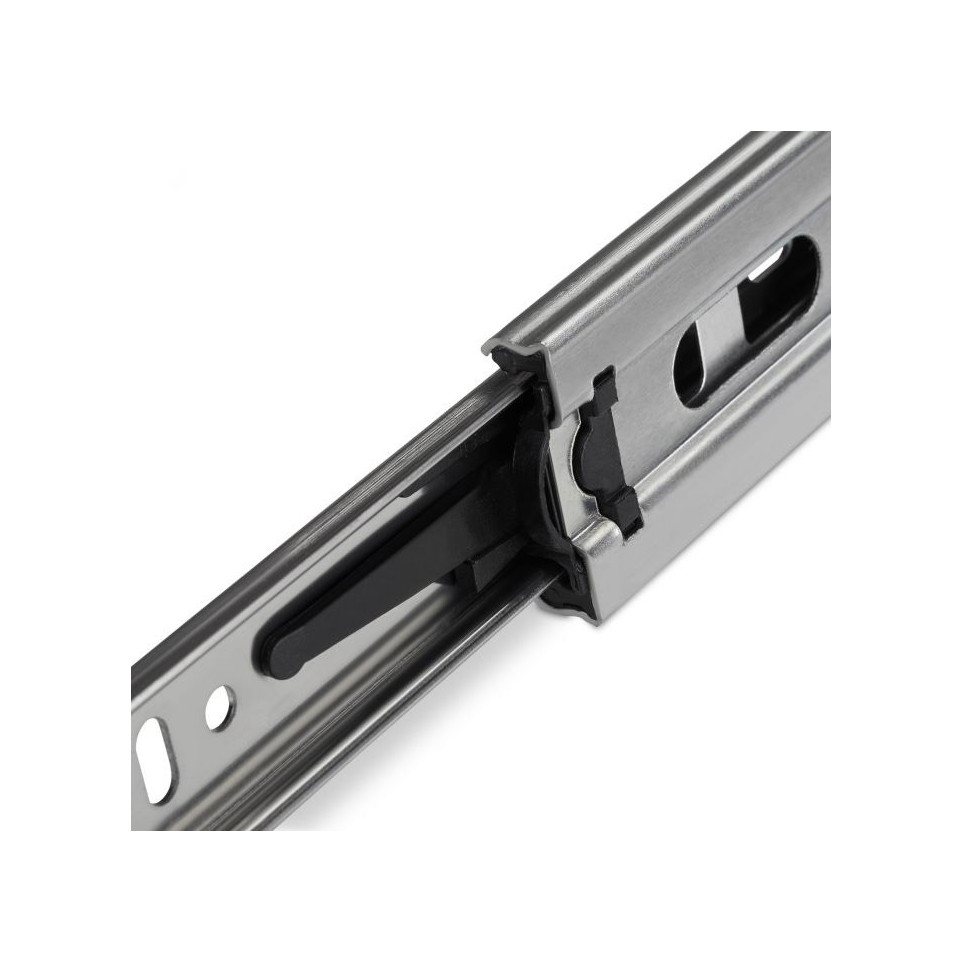

- Use the built-in release lever on the runners to fully disconnect and remove the drawer.
-
Are the runners suitable for both furniture and industrial applications?
- Yes, they are designed for a wide range of applications including furniture, machine construction, and industrial drawer systems.
-
Is installation hardware included with the runners?
- Each set includes one left and one right runner; confirm with your distributor if additional mounting hardware is supplied.
