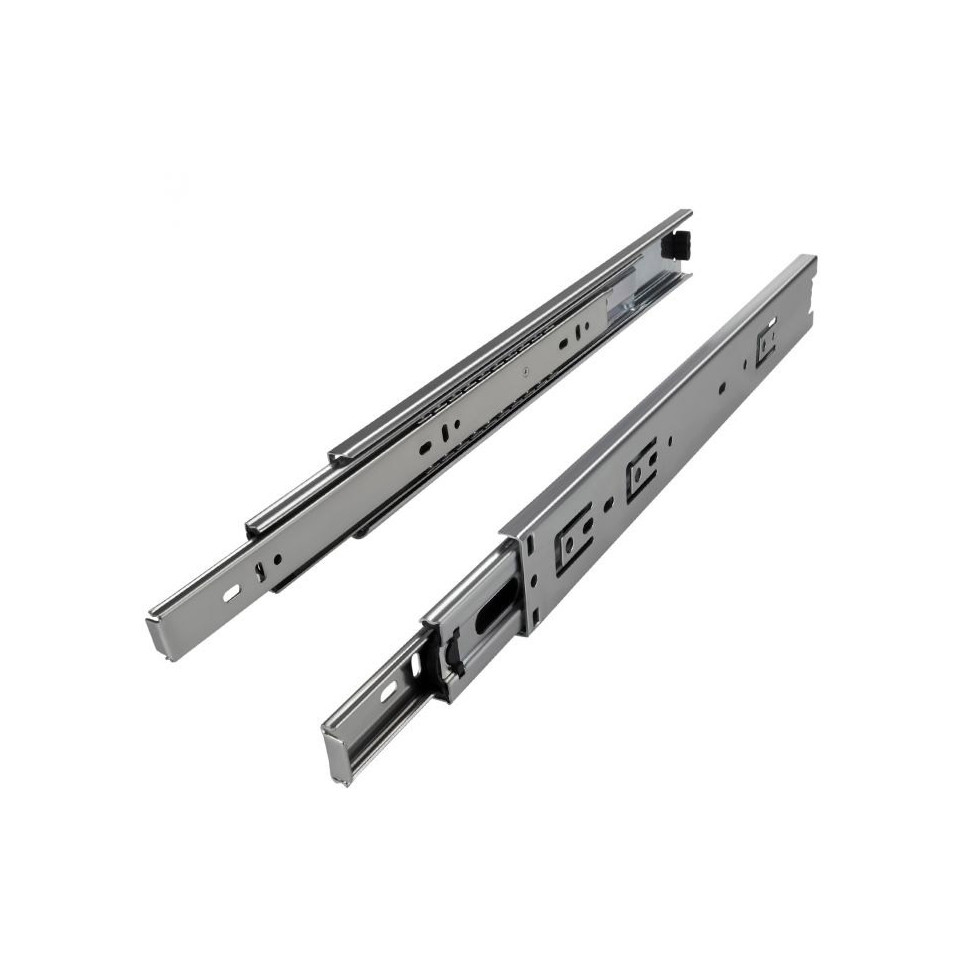

Full Extension Ball Bearing Drawer Slides 650mm H45 45kg per piece

Usage

Designed for use in furniture and cabinetry, these full-extension 650mm ball bearing runners enable drawers to open completely for easy access, supporting heavy loads up to 45 kg per piece. Ideal for professional, industrial, or domestic settings where robust performance and durability are required.

Advantages

• Smooth and quiet drawer movement thanks to precision ball-bearing construction.
• Full extension provides maximum access to drawer contents.
• High load capacity of up to 45 kg per runner supports heavy-duty storage needs.
• Zinc-plated steel ensures resistance against corrosion and long service life.
• Easy installation with standard side-mount design; minor drawback: requires precise alignment during fitting for optimal operation.

Specifications

• Material: Cold-rolled zinc-plated steel with carbon steel ball bearings for strength and anti-corrosion protection.
• Durability: Engineered for smooth operation over years of daily use; built to meet industry standards such as EN15338 Level 1 depending on manufacturer reference[7][8].
• Performance: Supports loads up to 45 kg per runner; height: 45 mm; length: 650 mm; full extension guarantees complete drawer accessibility[3][7][8].
• Differentiating features include silent running rails, front release mechanism (on some variants), optional soft-close or self-closing system (check variant), and stable lateral guidance[3][7].

How it works

The runners are mounted laterally inside the cabinet. Ball bearings allow the telescopic rails to glide smoothly so the drawer can be fully extended. When installed correctly, they deliver high stability under load while maintaining quiet operation throughout their service life.
