Drilling Template Plate for Stud / pc
€56.58
In stock
Usage

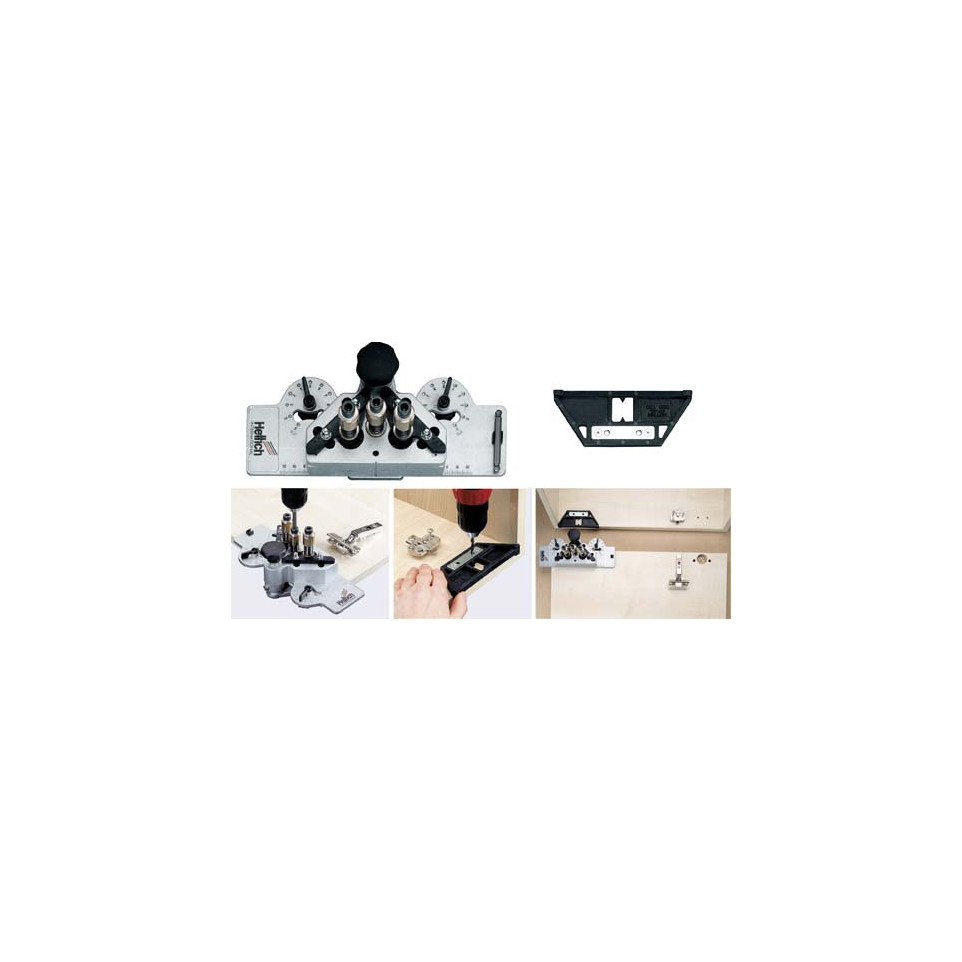

The HETTICH Drill-Jig is designed for precise and efficient drilling of cup holes and mounting plates for concealed hinges, suitable for both new furniture assembly and retrofitting doors in carpentry or workshop settings.
Advantages
- Ensures accurate placement and alignment of hinge cup holes on doors and panels.
- Reduces the risk of drill bit slipping thanks to carbide-tipped bits and stable jig positioning.
- Compatible with a wide range of Hettich hinges, including Sensys, Novisys, Intermat, Kamat, SlideOn, Selekta Pro 2000, and Selekta Pro 2035.
- Suitable for use with hand drills or cordless screwdrivers on-site or in the workshop.
- Straightforward handling; minor limitation: manual operation requires attention to safety instructions during use.
Specifications
- The set includes: one drill body for hinges, one drill body for mounting plates, one hexagonal driver, one drill bit (35 mm diameter), two drill bits (10 mm diameter), all chucked.
- Main components are robustly constructed with carbide-tipped bits for extended tool life.
- Enables drilling a central hole (35 mm ø) along with two guide holes (10 mm ø) per operation.
- Differentiating features include anti-slip design when positioning and compatibility with multiple hinge systems.
How it works
The user positions the jig on the workpiece where hinge installation is required. By guiding a compatible hand drill or screwdriver through the pre-set guides in the jig body—with provided carbide-tipped bits—precise holes are drilled accurately every time. This facilitates quick fitting of concealed hinges without complex measurements or errors.
