Usage
The Capot d'habillage recoupable ED Vario is designed to provide a seamless and adaptable cover solution for Dorma ED 100 and 250 automatic operators on double swing doors, ensuring integration in commercial and high-traffic environments.
Advantages
- Customizable length up to 2200 mm for precise fit on double doors.
- Compatible with Dorma ED 100 and ED 250 drive systems, supporting both models uniformly.
- Robust construction suitable for intensive use in demanding environments, including fire doors.
- Simplifies installation by bridging two operator housings with a continuous aesthetic finish.
- Easy-to-maintain design that allows quick access to internal components if needed.
Specifications
- Design: Modular aluminium cover finished to match Dorma operator lines; includes central Vario connector piece for dual setups.
- Tolerance & Durability: Withstands relative air humidity up to max. 93% (non-condensing); operational temperature range from -15°C to +50°C; complies with EN1154 standards when used in fire door settings.[1]
- Ajustability & Dimensions: Total length can be trimmed from the standard maximum of approximately 2200 mm; height approx. 70 mm, depth approx. 130 mm.[1]
- Differentiators: Enables continuous coverage across two operators without visible joints, enhancing visual appeal; minimum hinge spacing requirements: 1400 mm (without selector) or 1450 mm (with ESR selector).
How it works

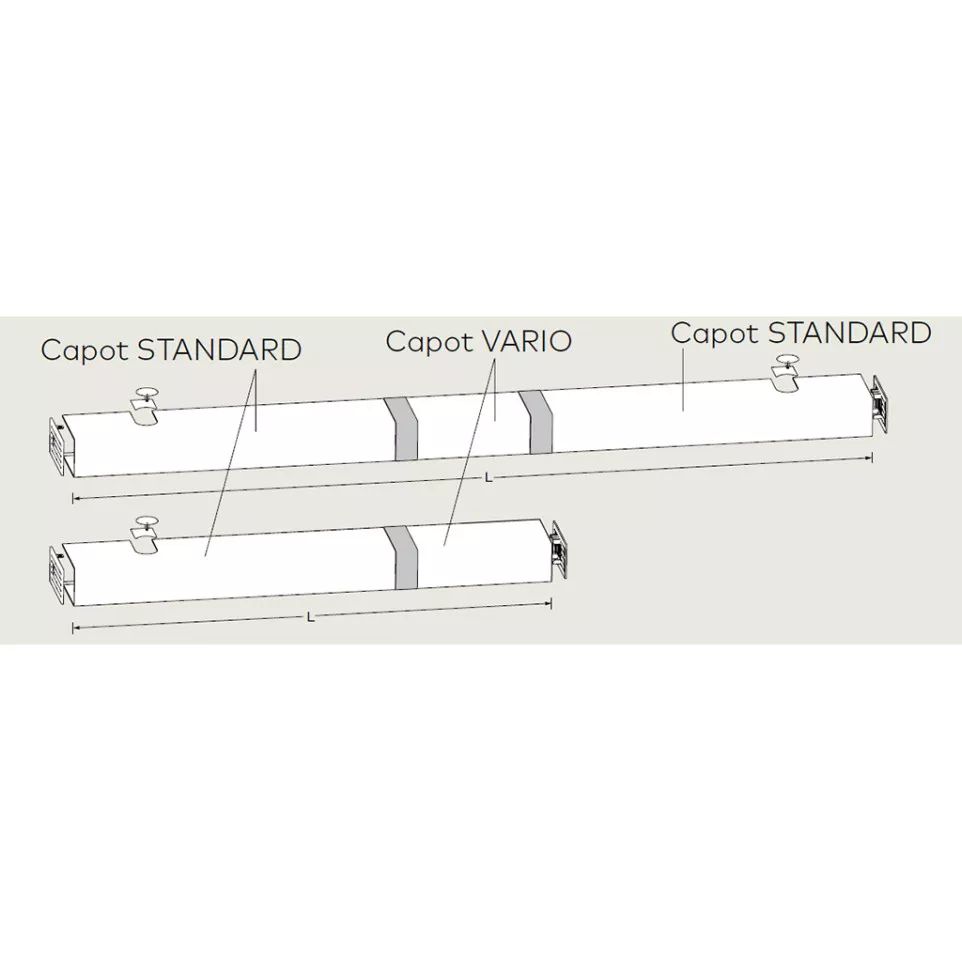

The recoupable ED Vario cover is cut to size during installation then mounted over the pair of Dorma operators on a double-door system. The central connector bridges the gap between covers, forming a single elegant housing that protects mechanisms while blending into architectural surroundings.[1]
