Usage

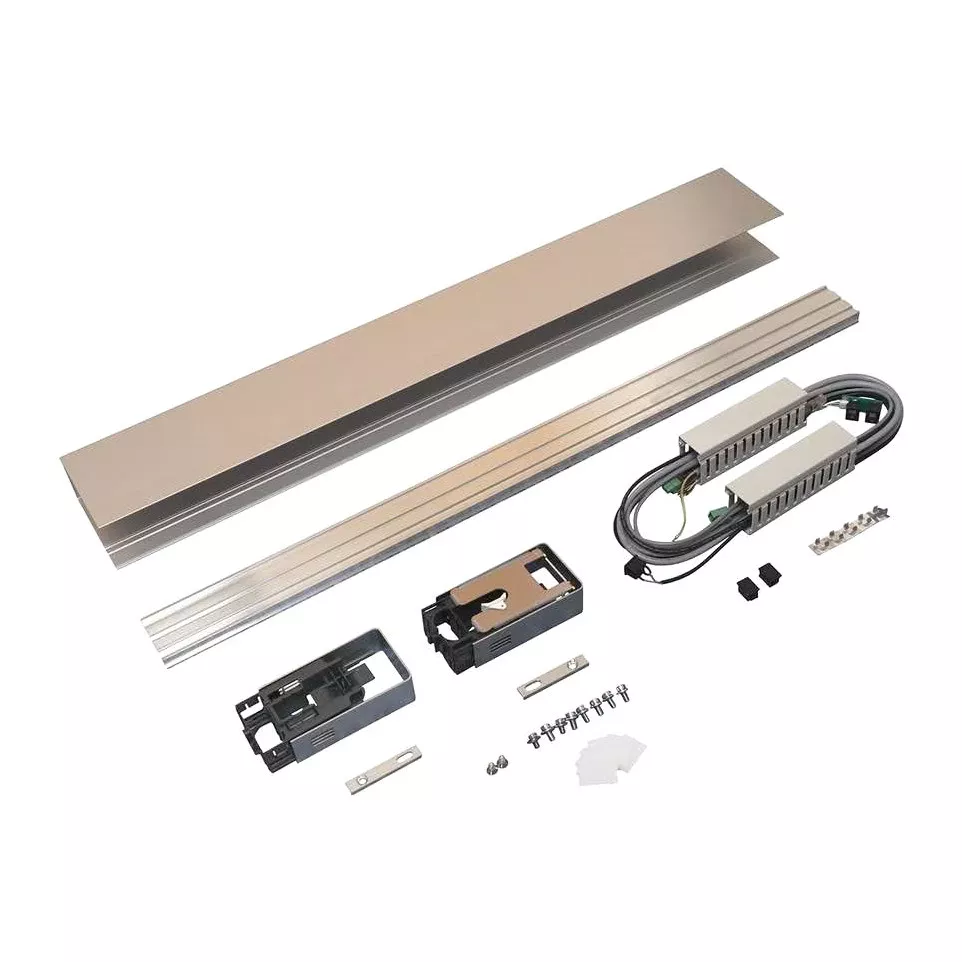

The Capot d'habillage recoupable ED Vario for double doors is designed to create a seamless and professional cover for Dorma ED 100 and 250 door operators in double-leaf hinged door installations, ensuring both protection and aesthetic continuity in commercial or public buildings.
Advantages
- Enables clean, continuous covering of two door operators for double doors
- Adjustable length allows flexible adaptation on site (up to 2800 mm)
- Durable construction offers extended resistance to physical impacts and environmental factors
- Simplifies compliance with fire safety standards when used together with compliant door operators
- Eases maintenance access while maintaining a neat appearance; may require precise measurement during installation
Specifications

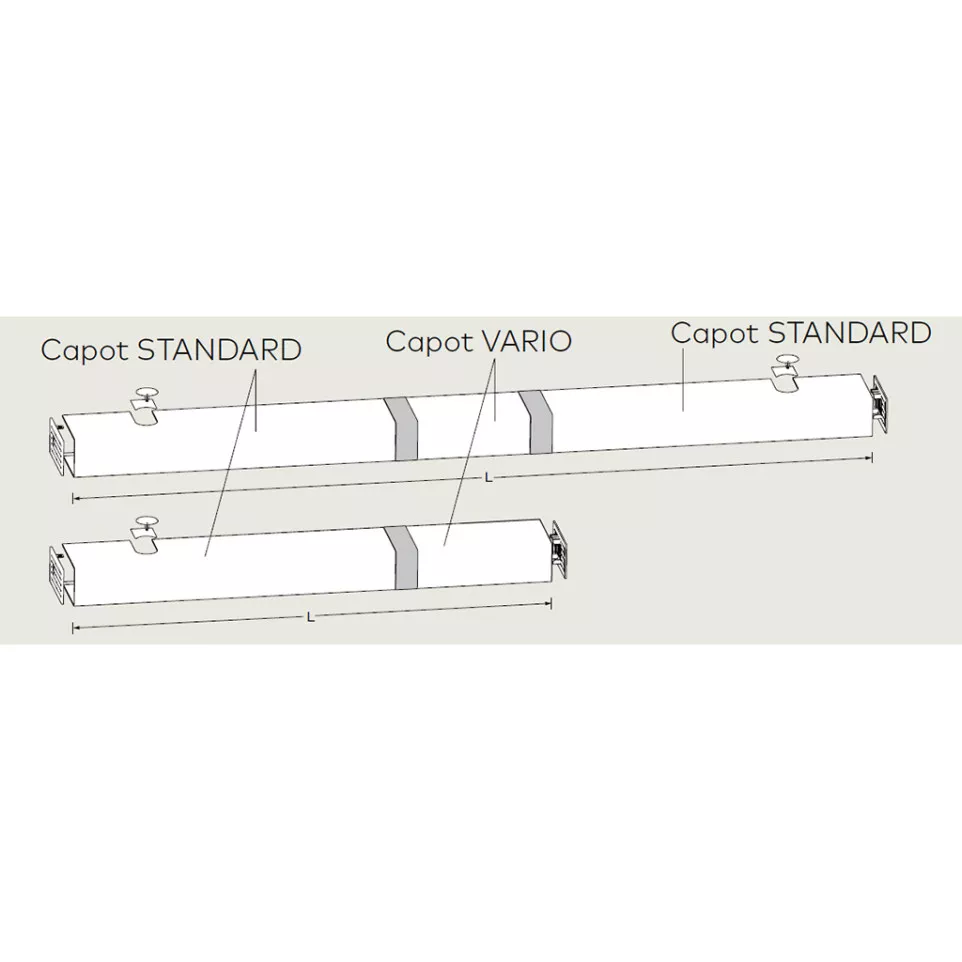

- Design: Modular aluminum cover compatible with Dorma ED 100/250; adaptable central Vario element for gap coverage between two standard covers [1]
- Durability & Certifications: Resistant to operating temperatures from -15°C to +50°C; supports use in high-traffic areas, suitable for fire-resistant doors under EN1154 [1]
- Sizing & Performance: Adjustable up to maximum width of approximately 2800 mm; recommended minimum hinge distance: ~1400 mm between leaves [1]; profile dimensions commonly around H:70 x D:130 mm per segment [1]
- Differentiating Features: Supports easy on-site trimming/cutting (“recoupable”) for precise fitment; allows integration over one or both leaves in double leaf configurations without visible joints in the central section [1]
How it works
The Capot d’habillage recoupable ED Vario is installed above the automated hinges as a modular cover. It conceals the Dorma drive mechanisms across both leaves of a double-door system, safeguarding internal components and delivering an aligned external finish.
