Usage
The Festool OFK 700 edge trimmer is designed for precise trimming, rounding, and chamfering of wood or plastic edges, as well as flush-trimming laminated surfaces in furniture and carpentry applications.
Advantages
- Fine depth adjustment to 0.1 mm ensures high-precision edging work.
- Inclined base by 1.5° delivers smooth routing results without shoulder marks.
- Powerful 720 W motor supports a wide range of trimming and routing tasks.
- Lightweight (2 kg) design enhances maneuverability during prolonged use.
- The dust extraction port (Ø27 mm) allows for efficient chip removal and a cleaner workspace.
Specifications
- Design/Materials: Ergonomic body with detachable router table; robust construction suitable for professional use; collet diameter: 6–8 mm; maximum cutter diameter: 26 mm; includes edge trimming cutter D19 x NL16 mm.
- Sustainability/Certification: Compatible with standard dust extraction systems to support cleaner, safer operations.
- Performance: Power consumption: 720 W; variable speed range: 10,000–26,000 min⁻¹ (RPM); weight: approx. 2 kg.
- Differentiating Features: Quick spindle stop for easy cutter changes; micro-adjustable depth control to within one-tenth of a millimeter; repositionable base with large support area increases control on narrow or curved edges.
How it works

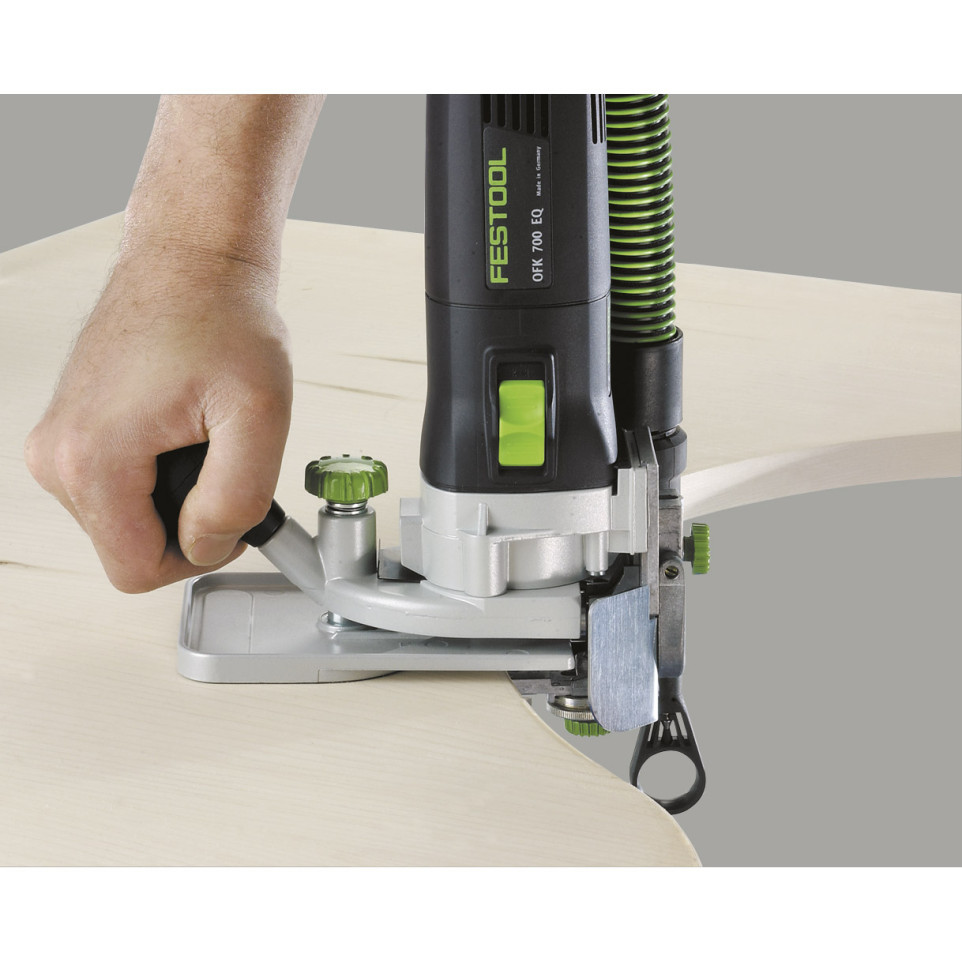

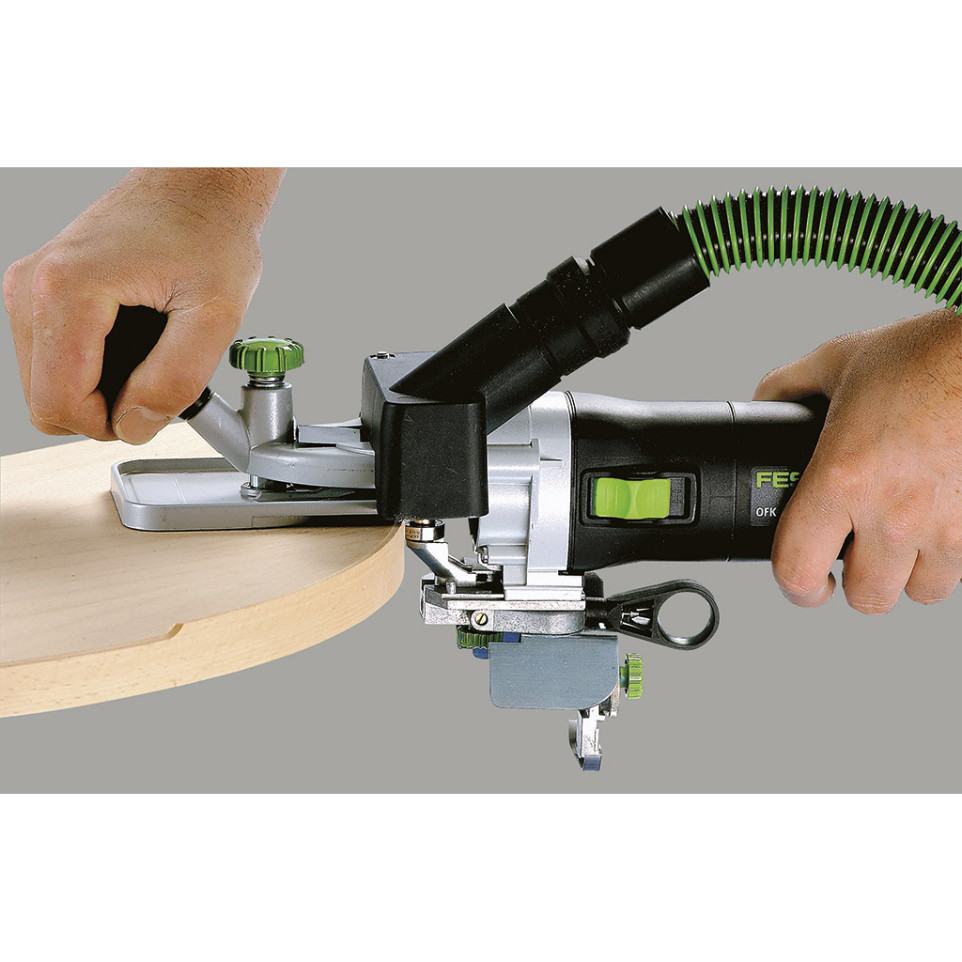

The OFK700 clamps compatible cutters in its collet, then glides along the workpiece using its stable base. Fine adjustment enables precise setting of cut depth while the ergonomic handle provides firm guidance during edge trimming or shaping. Connect the dust port to your extractor for optimal visibility and cleanliness throughout operation.
