Timer for Diax Electromagnetic Lock / pc
€67.87
In stock
Usage
This 40 cm mounting rail with integrated 400 kg electromagnetic lock is designed for secure locking of access doors in commercial, industrial, or residential buildings. It is suitable for new installations or renovation projects across various door types.
Advantages
- Provides a strong retention force of up to 400 kg for enhanced security.
- Compatible with metal, wood, and glass doors, increasing installation flexibility.
- Dual voltage operation (12/24 V DC) allows adaptation to different electrical systems.
- Integrated monitoring contact (NO/NC) enables connection to access control panels.
- Includes pre-drilled adjustable profiles and end caps for simplified and precise setup. Requires constant power supply during operation.
Specifications

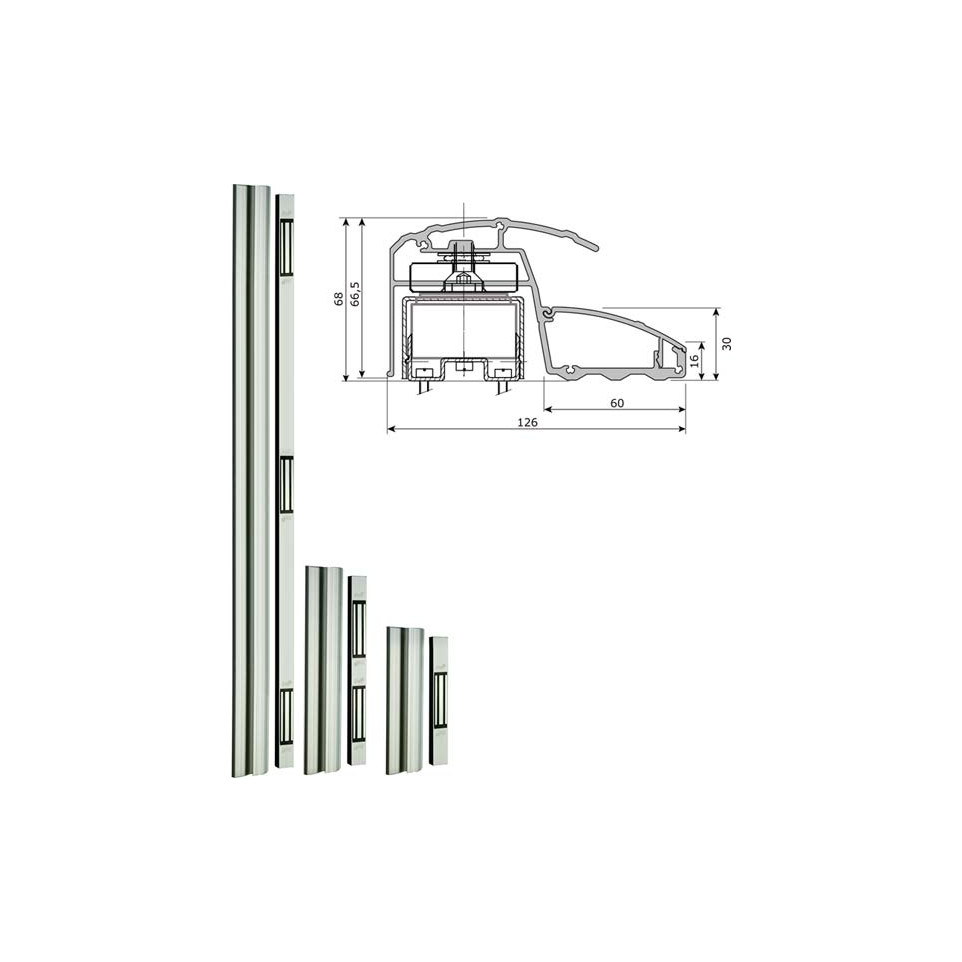

- Anodized aluminum bar measuring 40 cm with integrated 400 kg electromagnetic lock.
- -20°C to +70°C operating temperature range; IP56 ingress protection rating ensures durability in indoor settings[1][2].
- Main performance: Retention force of 400 kg; current draw: 550 mA at 12 V DC or 275 mA at 24 V DC[1][2].
- Differentiating features include hall effect-based NO/NC signaling contact and terminal block connection; delivered pre-assembled in the technical profile for efficient installation[1][2].
How it works
The rail is fixed above the door while the included plate attaches to the moving part. When powered, the electromagnet securely holds the door closed; removing power immediately releases it. The system integrates easily with most electronic access controls and indicates lock status through its built-in signaling contacts[1][2].
