Timer for Diax Electromagnetic Lock / pc
€67.87
In stock
Product

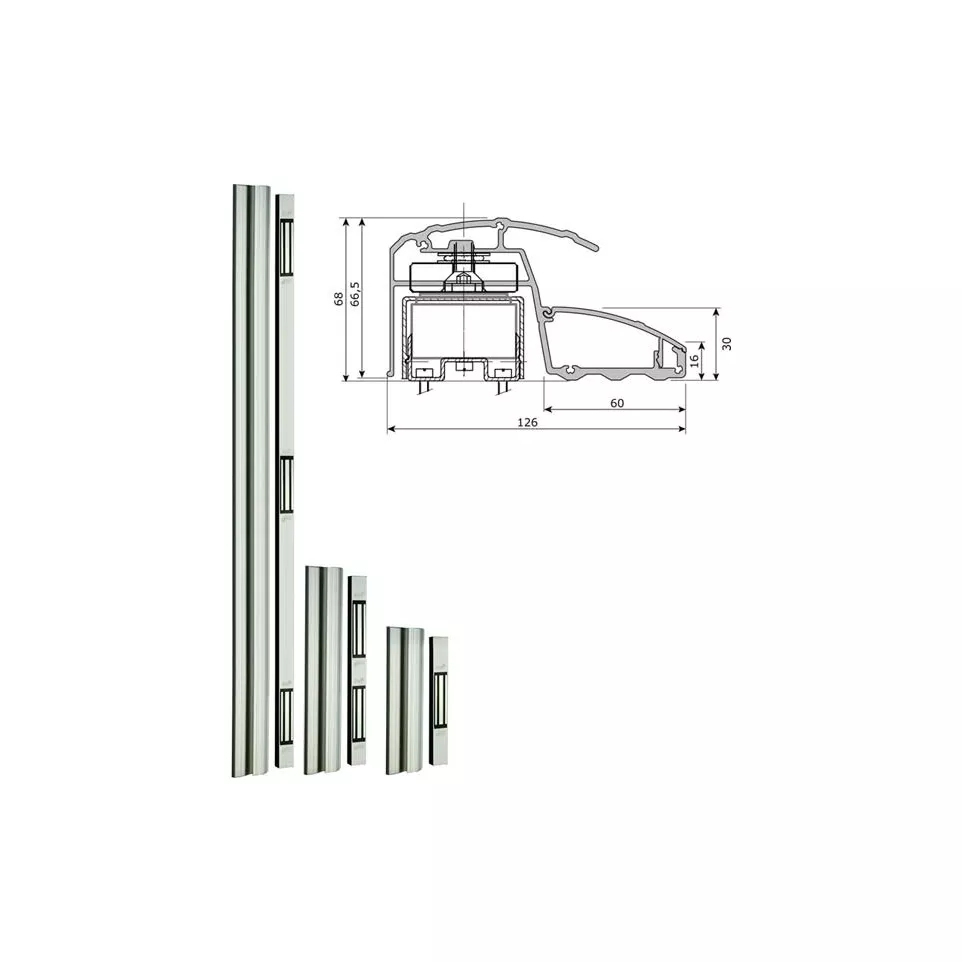

Electromagnetic lock kit featuring a 250 cm rail with two integrated 400 kg suction cups, designed for secure door locking in commercial or industrial environments. Includes signaling contact for security monitoring and flexible mounting options.
Specifications
- Industrial-grade electromagnetic holding force: 2 x 400 kg
- Operates on 12/24 V DC power supply
- Signaling contact uses Hall effect sensor (NO/NC)
- Integrated connection terminal blocks
- End caps for handle and technical post
- Pre-installed suction cups and adjustable, pre-drilled profiles
- Can be cut to fit door height
- Operating temperature: -20°C to +70°C
- Power consumption per suction cup: 12 V DC = 550 mA, 24 V DC = 275 mA
- Options for custom length and installation on glass doors
Usage
Mount the kit on the door frame, connect the power and signaling circuits, and adjust profiles as required. The system provides strong electromagnetic locking for entrance doors, with status monitoring via built-in contact, suitable for access control and security applications in commercial buildings.
FAQ
- What type of power supply is required?
- The kit operates on either 12 V DC or 24 V DC power sources.
- Can this kit be used on glass doors?
- Yes, installation options are available for mounting on glass doors.
- What is the total holding force of the system?
- The two integrated suction cups provide a combined holding force of 800 kg.
- Does the kit include signaling capabilities?
- Yes, it features a Hall effect NO/NC contact to signal lock status.
- Is the length of the band customizable?
- The kit can be cut to match the height of the specific door, and custom lengths are also available.
