Usage

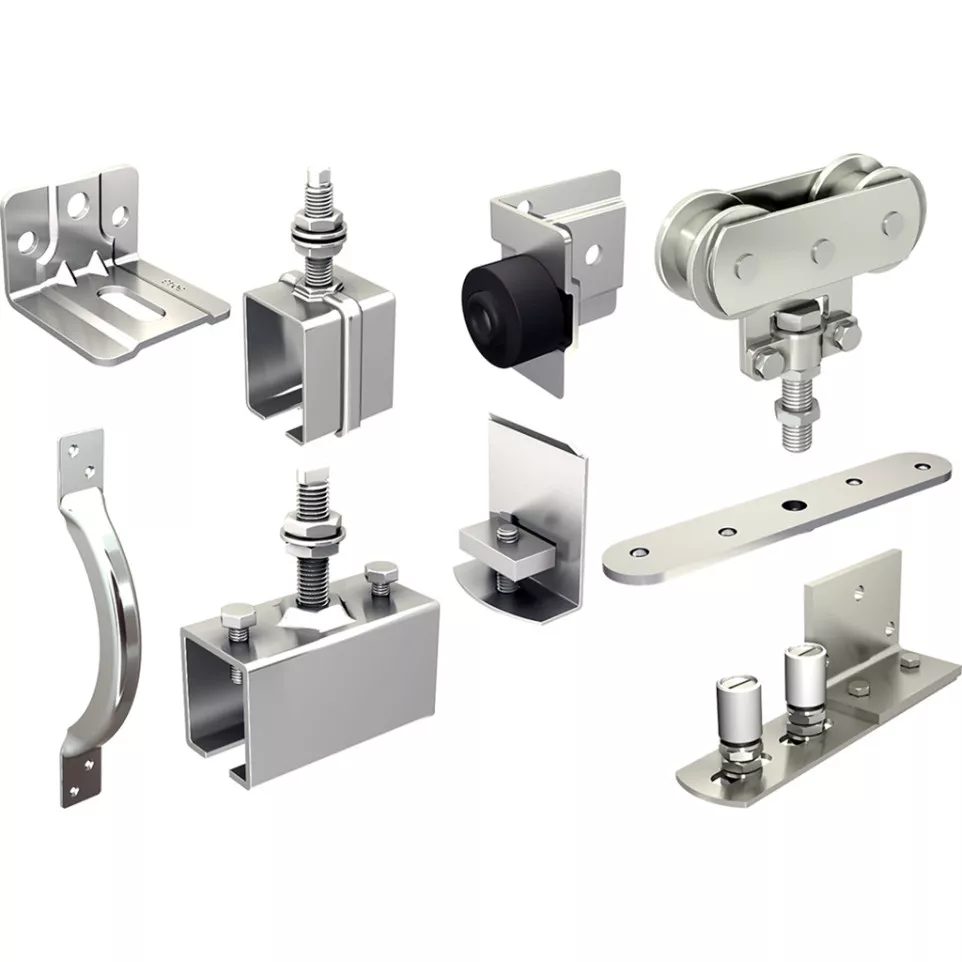

This set of rollers, brackets, supports, stops, and guides is designed for mounting a single external sliding door up to 3 meters in width without the need for a "U" shaped bottom guide profile. It suits various exterior applications requiring robust door mobility.
Advantages
- Enables smooth operation for doors up to 3 meters wide
- No lower "U" guide profile required for installation
- Galvanized steel components offer corrosion resistance outdoors
- Nylon wheels ensure quiet and fluid movement along the rail
- Modular kit adapts to different types of exterior sliding doors; rail sold separately may be needed depending on layout
Specifications
- Main elements: steel brackets and supports with galvanized finish; rollers fitted with nylon wheels mounted on ball bearings for durability and low maintenance[1]
- Tolerates demanding weather conditions due to anti-corrosion treatment; intended specifically for external doors[1]
- Supports one sliding door up to a maximum length of approximately 3 meters. Maximum supported weight: typical kits rated at up to around 80 kg per leaf (verify based on door specification)[1]
- Differentiator: allows secure guidance and easy movement without floor track installation by employing top-rolling systems and lower olive-style guides[1]
How it works
The kit mounts directly onto the edge of an exterior sliding door. Brackets attach at the top where rollers allow the door to glide smoothly along an overhead rail (not included). Lower guides keep the panel laterally stable during operation—no bottom track required—providing clear ground access across the opening.
