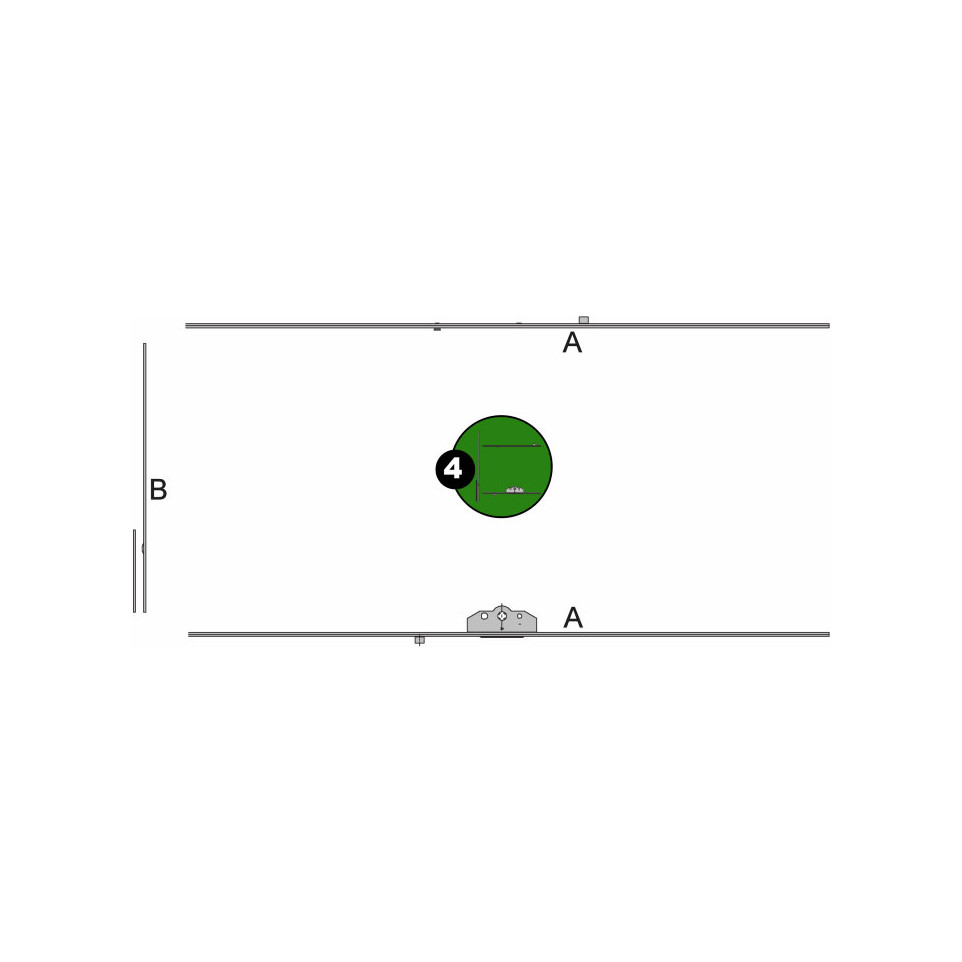

Horizontal Bar for Hautau Tornado 200 E35mm-2350mm, reference 165967, is a precision-engineered fitting designed for integration with PVC and timber window systems using Hautau's Tornado 200 hardware. Suitable for sash rebate widths from 1,901 mm to 2,350 mm and a 35 mm entry.
Specifications
- Crafted for use with high-performance pivot window systems, supporting sash widths up to 2,350 mm and sash weights to 200 kg
- Made from robust steel with a blue chromated HAUTAU-Splus surface, Cr-VI-free, offering corrosion protection
- Features adjustable horizontal locking, compatible with a range of commercial PVC window profiles with a 35 mm entry
- Designed for profile models including SCHÜCO AS, SCHÜCO CT70, Thyssen PRESTIGE, KBE SYSTEM 70
Usage
Install the horizontal bar as part of the Tornado 200 set for enhanced sash stability and secure locking performance. It integrates with the cremone gearbox and central locking systems, ensuring smooth operation and reliable sealing for large pivot windows. Maintenance access and cleaning are facilitated by the hardware’s 180° opening capability.
FAQ
-
What window sizes is this fitting compatible with?
The horizontal bar works with sash widths from 1,901 mm to 2,350 mm and fits profiles requiring a 35 mm entry. -
Which window profiles are supported?
Compatible with SCHÜCO AS, SCHÜCO CT70, Thyssen PRESTIGE, and KBE SYSTEM 70 profiles among others that use a 35 mm entry. -
Is this part suitable for heavy and large windows?
Yes, it is engineered to support sash weights up to 200 kg, ideal for large custom pivot windows. -
What material and finish is used?
Manufactured in steel with a Cr-VI-free blue chromated HAUTAU-Splus coating for enhanced durability. -
What does the set include for installation?
The Tornado 200 set typically includes the pivot hinge, cover caps, adjustment elbows, design handle, locking gear, and this horizontal locking bar for complete and secure assembly.
