Usage
This lock is designed for securing glass doors with a thickness between 8 and 10 mm, particularly where a handle with PZ profile cylinder is required. It suits interior applications in offices, commercial spaces, or residential buildings.
Advantages
- Compatible with standard glass thicknesses of 8–10 mm for versatile installation
- Easy reversible design adapts to left or right door orientation without special tools
- Pins are equipped with noise dampers to ensure quiet operation
- Supplied with inserts for handles (crosse collars) of Ø16 and Ø18 mm
- No additional machining needed thanks to standardized drilling pattern; not supplied with strike plate (crosse)
Specifications
- Bespoke for the VENEZIA range: rounded design in brushed stainless steel finish for durability and visual appeal
- Main body made from high-grade inox (stainless steel), providing corrosion resistance and long service life; Tenax spring mechanism included in the follower (spindle support)

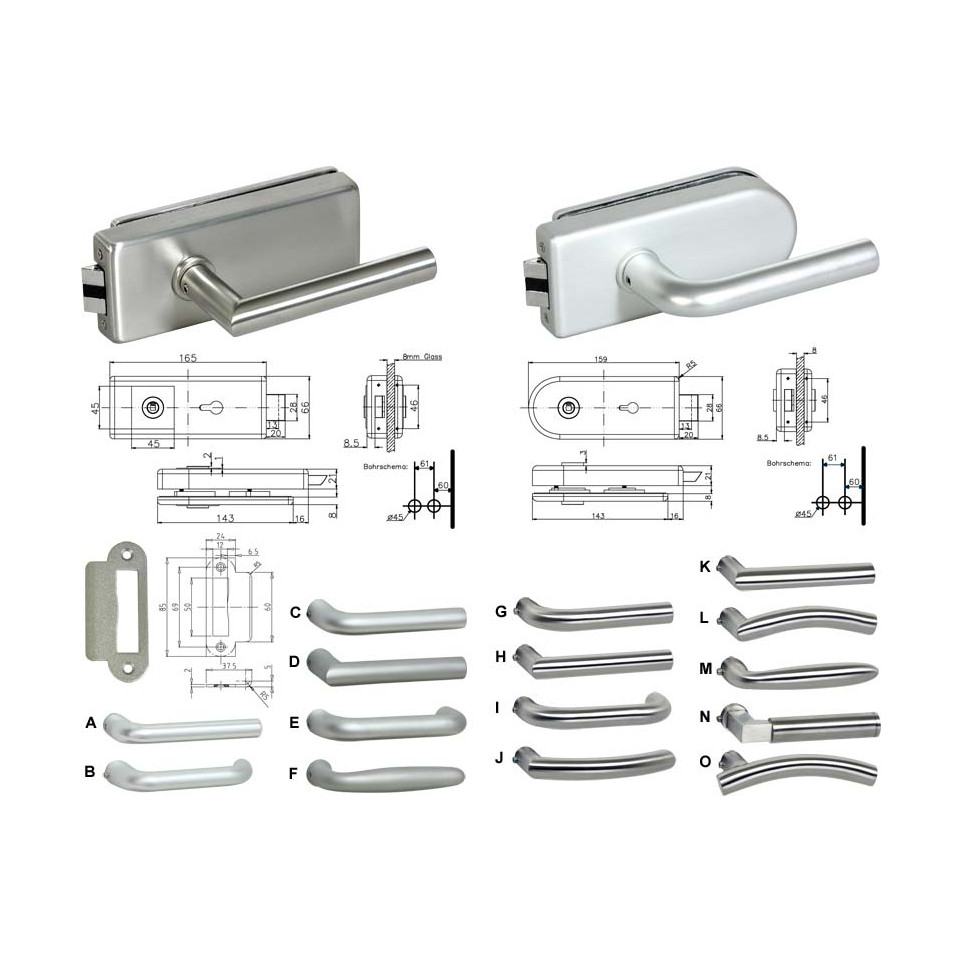

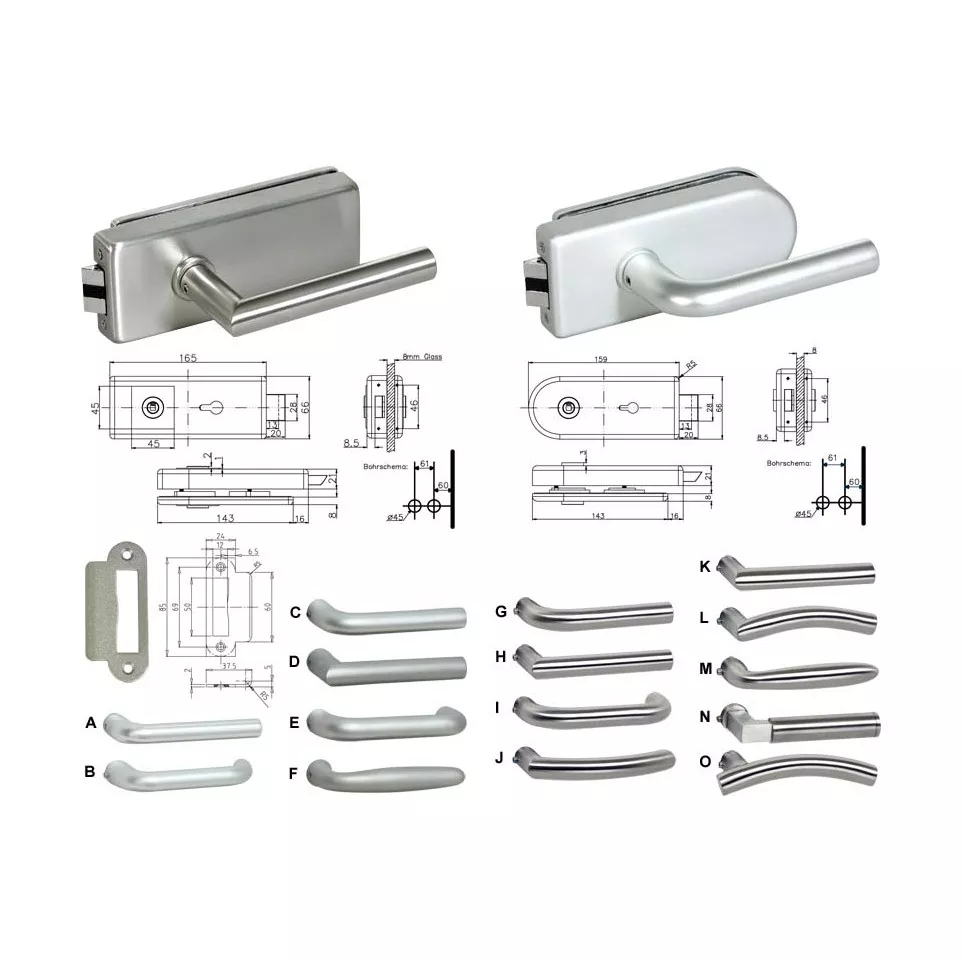

- Suits glass panels of thickness: minimum 8 mm to maximum 10 mm; spindle size: square section of 8 x 8 mm; collar inserts fit handles of Ø16/18 mm [1][2]
- Pins feature built-in amortisseur de bruit (noise dampers); compatible with several handle models using standardized drilling layout [1][2]
How it works
The lock mounts onto a prepared cutout on an interior glass door. The spindle operates via an attached handle, activating the latch mechanism inside. The PZ profile allows use with European standard cylinders and various handle models.
