Black Plastic-Coated Hinges Monin 110x80 Ø15.5 Right / pc
€6.38
In stock
Usage

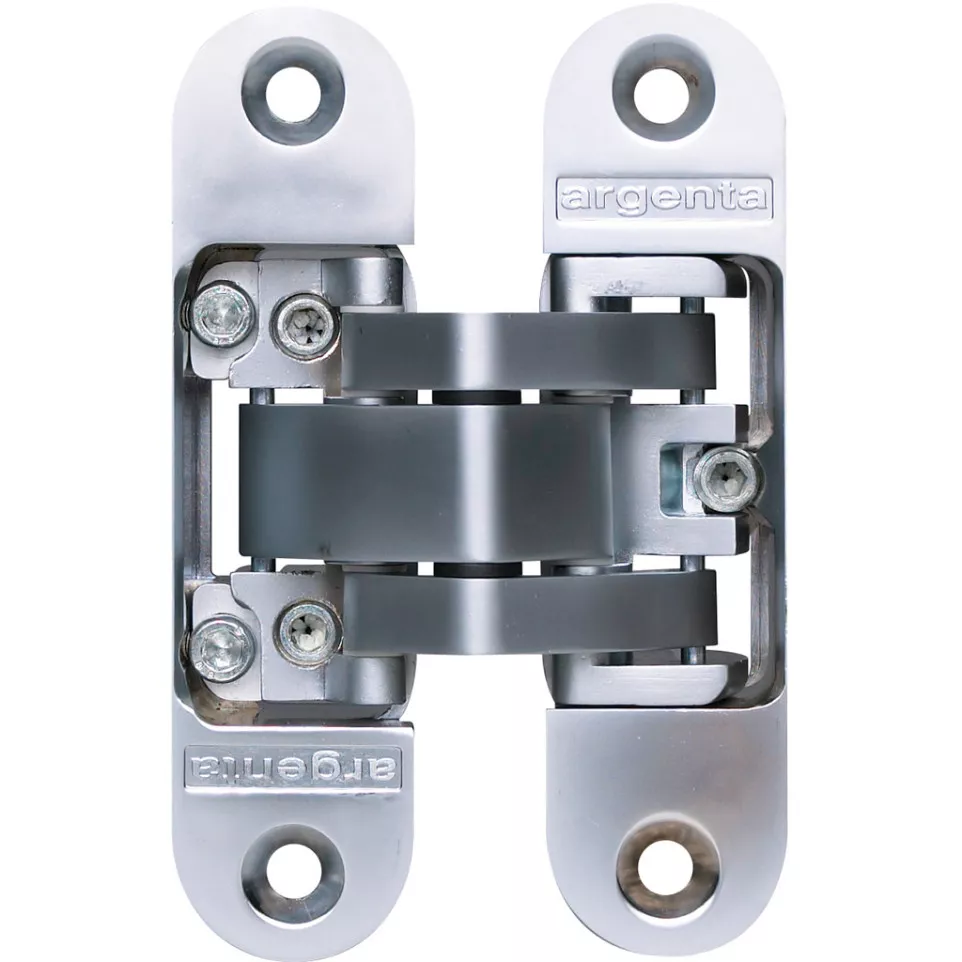

The ARLU adjustable invisible hinge SMALL is used for flush-mounting interior doors, allowing the door to close in line with the wall while remaining fully concealed from view. Suitable for both new builds and renovations.
Advantages
- 3D adjustment: height, width, and depth can be precisely aligned (+/-1.5 mm) without dismantling the door
- Allows a full opening angle of up to 180° for maximum accessibility
- Compact design suitable for minimalistic or frameless doors
- Synthetic bearing sleeves ensure smooth operation and reduce friction over time
- Reversible installation supports both left- and right-hand doors
Specifications
- Zamak body construction with matte chrome finish; synthetic bushings for durability and quiet movement
- Cyclic tested for stable alignment after intensive use; suitable for door weights up to 40 kg (using two hinges) or up to 55 kg (using three hinges)

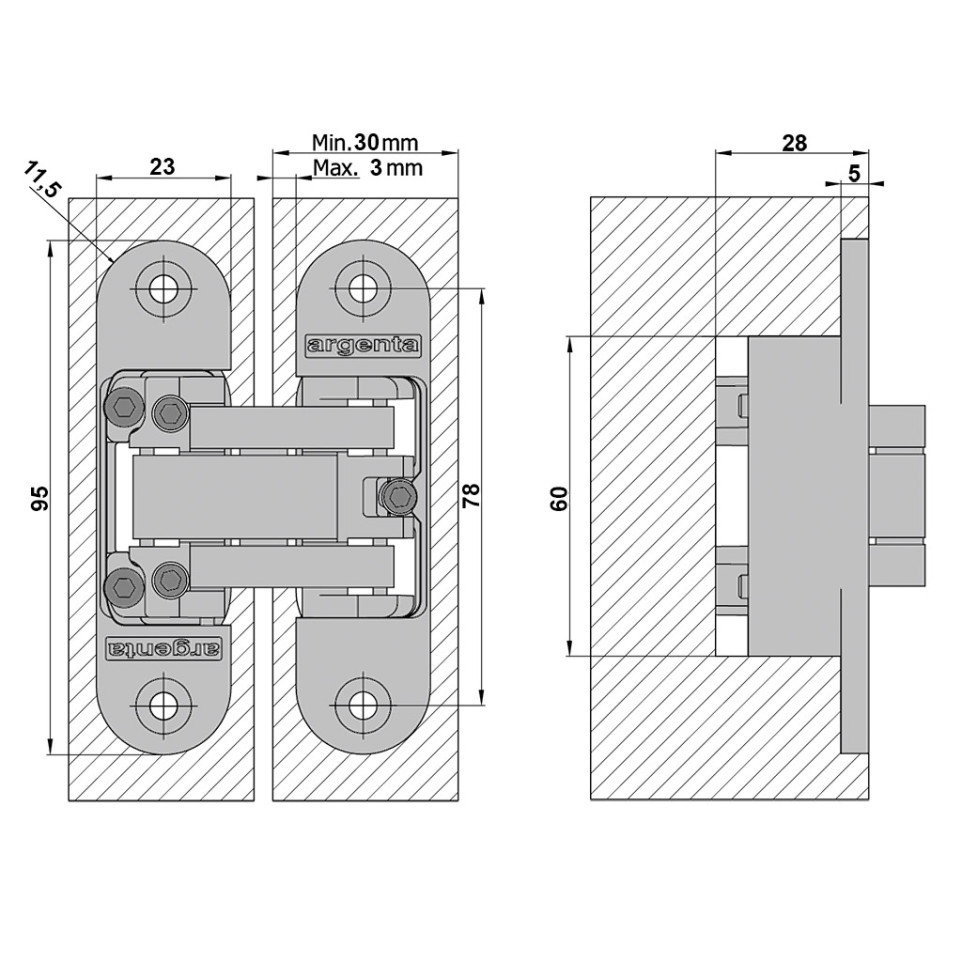

- Main dimensions: Length: 95 mm, Width: 23 mm, Height: 78 mm; minimum door thickness: 31 mm; mortise depth in frame/door: respectively, approx. 34/32 mm; opening angle: 180°
- No visible hardware when installed; supports precise flush alignment between door leaf and wall surface thanks to its triple adjustment function[1][2][7]
How it works
The hinge is embedded into both the door leaf and frame so that only internal components are visible when the door is open. Fine adjustments can be made via accessible screws on the hinge body—without removing the door—to optimize fit in three directions.
